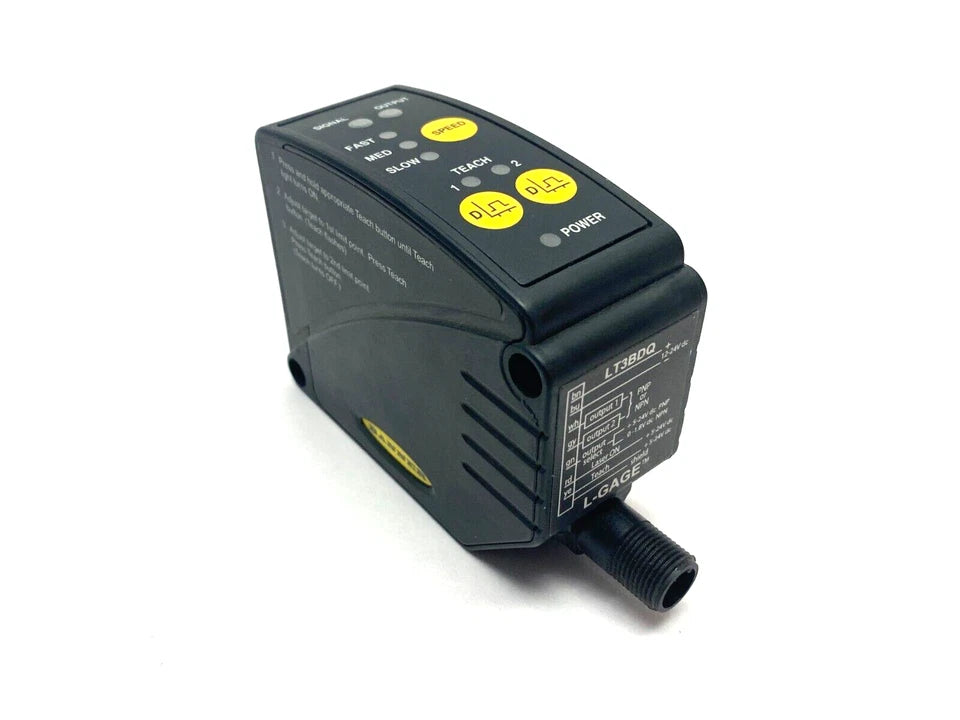

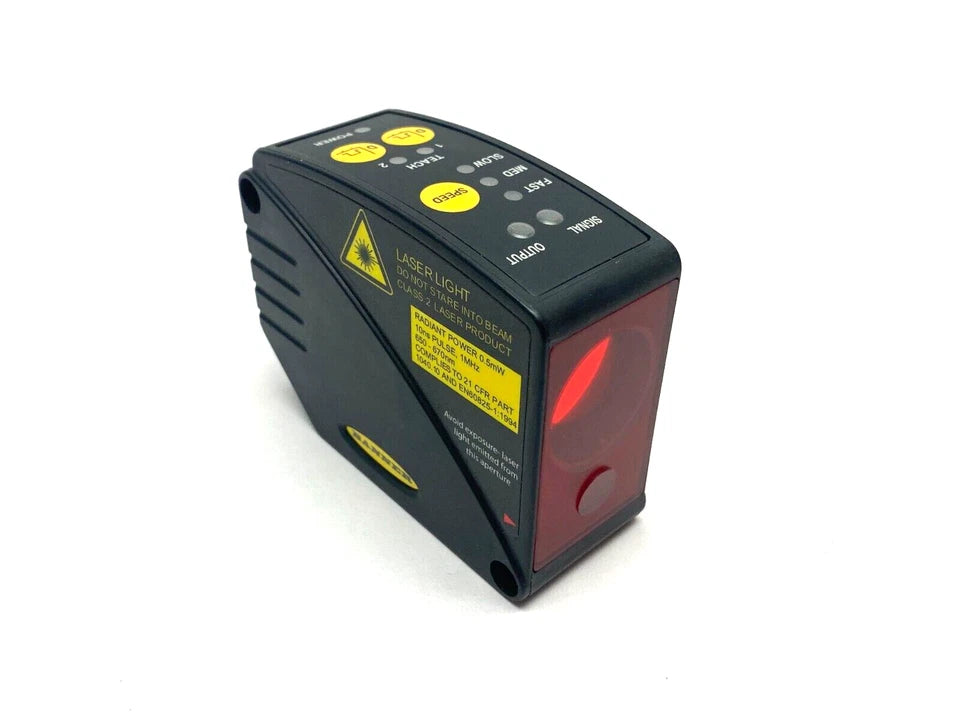

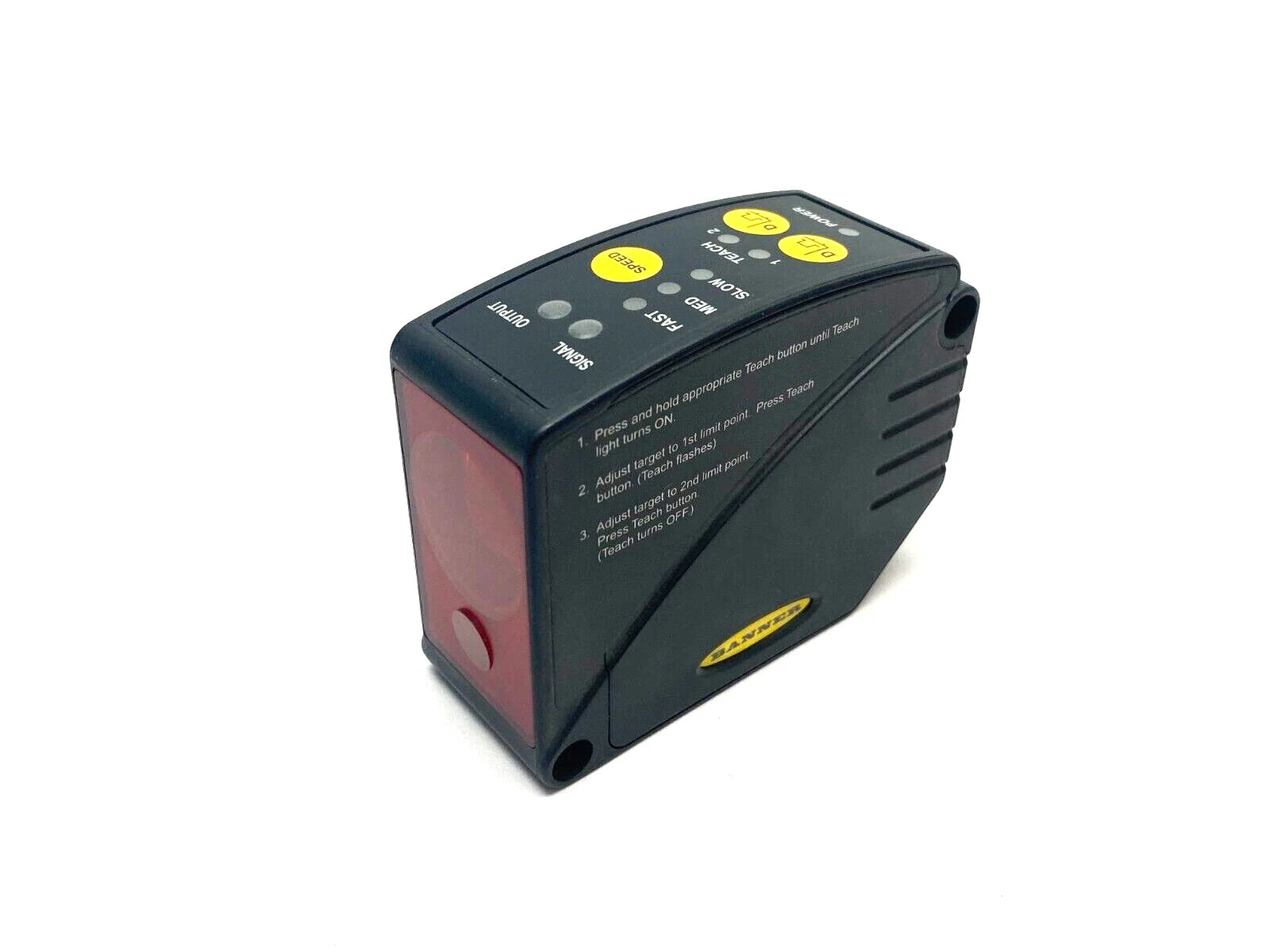

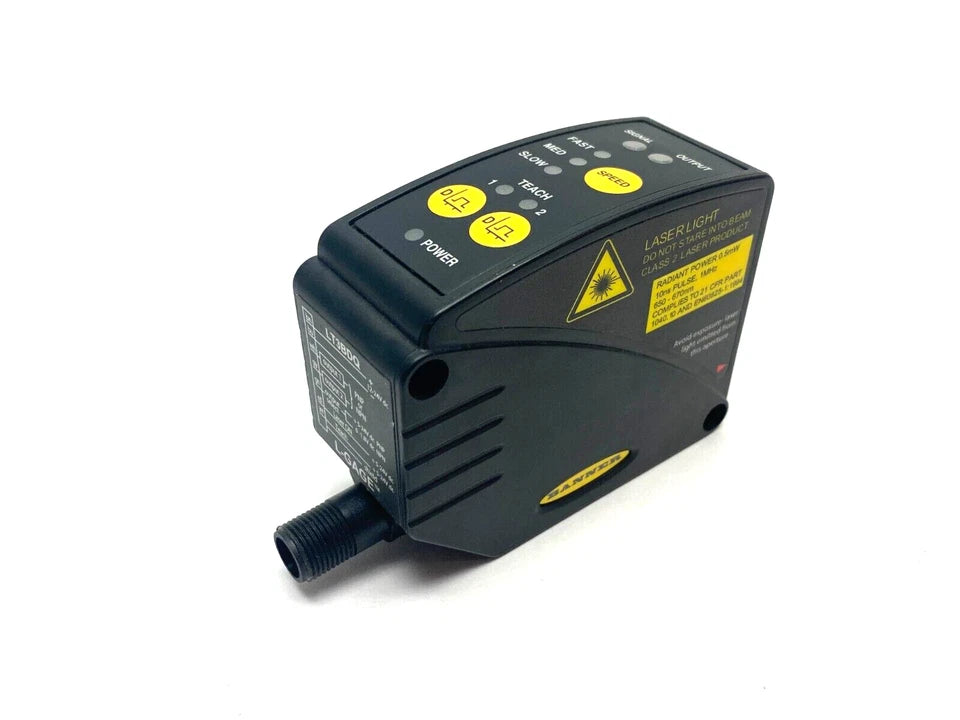

LT3BDQ | Banner Engineering L-GAGE LT3 Class 2 Time-of-Flight Laser Sensor
- Regular price
- $2,257.00
- Sale price
- $2,257.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LT3BDQ
Description
The Banner Engineering LT3BDQ is an L-GAGE LT3 Class 2 diffuse time-of-flight laser sensor designed for accurate proximity detection over extended distances. It uses visible red laser technology to deliver precise measurement performance in industrial automation environments. This sensor is suited for applications requiring fast response times and reliable detection of objects within a defined sensing range.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Sensors |
| Part Number | LT3BDQ |
| Subcategory | Photoelectric Sensors |
| Series | L-GAGE LT3 |
| Sensor Type | Diffuse Time-of-Flight |
| Light Source | Visible Red Laser |
| Laser Classification | Class 2 |
| Measurement Range | 300–5000 mm (5 m max) |
| Response Time | 1 ms |
| Supply Voltage | 12–24 VDC |
| Output Type | Discrete, NPN/PNP Configurable |
| Number of Outputs | 2 |
| Switching Current | 100 mA |
| Housing Material | ABS |
| Housing Style | Rectangular |
| Connection Type | Integral Quick-Disconnect, M12 |
| Number of Pins | 8 |
| IP Rating | IP67 |
| NEMA Rating | 4X |
| Operating Temperature Range | 0 to 50 °C |
| Indicators | LED(s) |
| Certifications | CE Approved, cULus Recognized |
| Weight | 1 lb |
Information About LT3BDQ
The LT3BDQ is part of Banner Engineering’s L-GAGE LT3 Series, which is engineered for non-contact distance and presence sensing using time-of-flight technology. It features a rectangular ABS housing with a sealed design rated for demanding industrial conditions. The sensor supports discrete NPN/PNP configurable outputs and integrates easily into control systems through an M12 quick-disconnect interface. It is commonly deployed in material handling, packaging, and automation systems where long-range proximity sensing is required.
Key Features:
- Time-of-Flight Sensing Technology: Provides accurate proximity detection using laser-based distance measurement.
- Extended Sensing Range: Detects objects from 300 mm up to 5000 mm for flexible application coverage.
- Fast Response Time: Offers a minimum response time of 1 ms to support high-speed automation.
- Class 2 Visible Red Laser: Ensures precise targeting while maintaining compliance with safety standards.
- Configurable Discrete Outputs: Includes two NPN/PNP selectable outputs for system compatibility.
- Rugged Environmental Protection: Rated IP67 and NEMA 4X for resistance to dust, moisture, and industrial exposure.
- Push Button and Remote Teach: Allows straightforward setup and adjustment during installation or maintenance.
The LT3BDQ delivers the reliability and precision required for industrial photoelectric proximity sensing applications.
