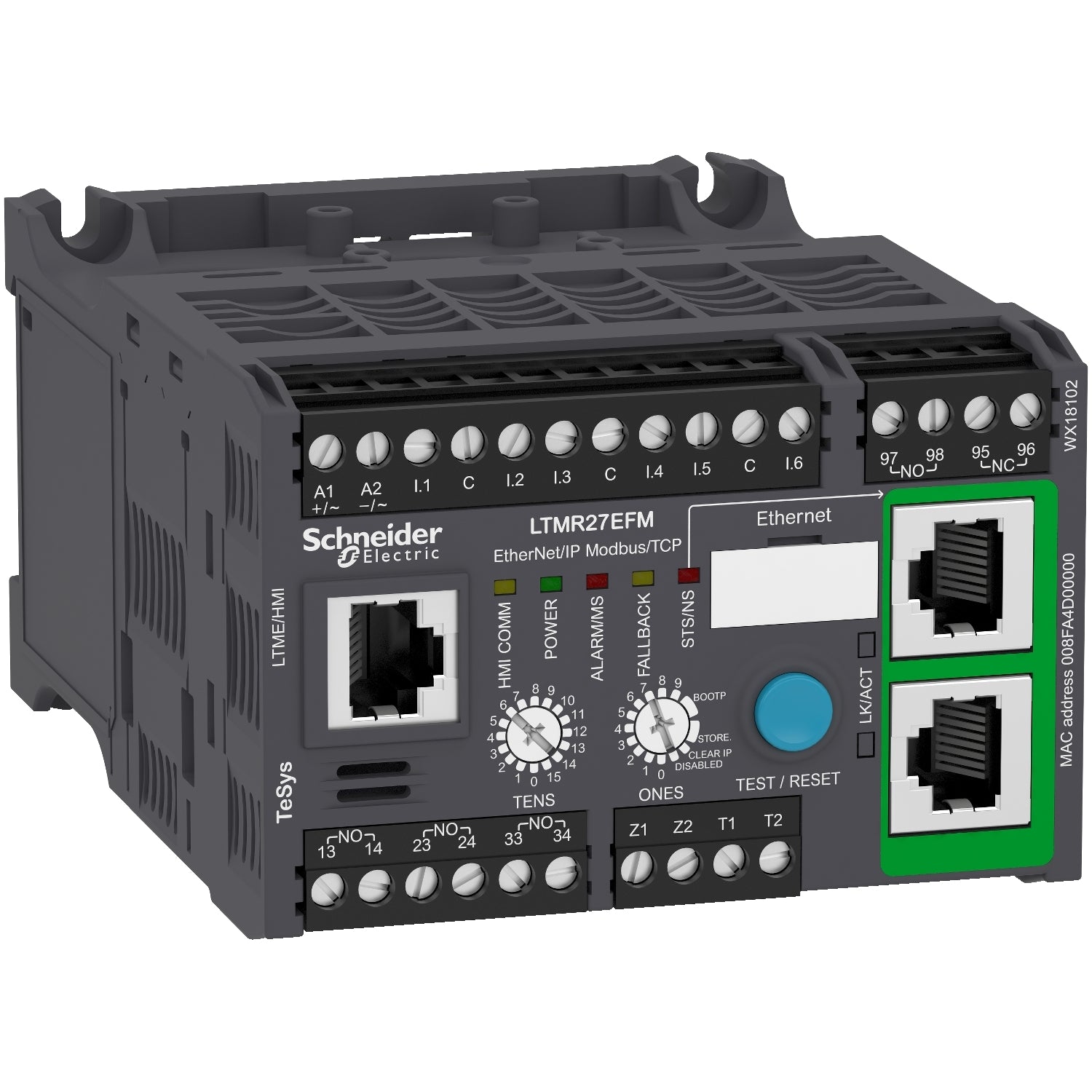

LTMR27EFM | Schneider Electric TeSys T Motor Controller with Ethernet/IP and Modbus/TCP
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LTMR27EFM
Description
The Schneider Electric LTMR27EFM is a TeSys T motor controller designed for complete motor protection, monitoring, and control. Operating on 100–240 VAC, it supports up to 27 A and provides relay outputs, discrete inputs, and integrated network communication. Built for integration into modern automation systems, it offers Ethernet/IP and Modbus/TCP connectivity for advanced diagnostic and control functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Controls & Indicators |
| Part Number | LTMR27EFM |
| Subcategory | Control |
| Series | LTMR, TeSys T |
| Voltage Rating | 100/240 VAC |
| Amperage Rating | 27 A |
| Input Rating | 3.1 mA at 100 VAC; 7.5 mA at 240 VAC |
| Output Rating | 5 A at 250 VAC / 5 A at 30 VDC |
| Contact Configuration | 1NO-1NC / 3NO |
| Frequency Rating | 50/60 Hz |
| Electrical Connections | Screw terminal |
| Mounting Type | DIN rail |
| Enclosure Type | IP20/IP54 |
| Dimensions | 61 mm H × 91 mm W × 122.5 mm D |
| Operating Temperature | -20 to 60 °C |
| Logic Inputs | 6 discrete inputs |
| Relay Outputs | 3 logic outputs + 1 fault relay |
| Communication Protocols | Ethernet/IP, Modbus/TCP |
| Current Measurement Range | 0.4–27 A with internal CTs |
| Certifications | UL, CSA, NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick, CCC |
Information About LTMR27EFM
The LTMR27EFM is part of the Schneider Electric TeSys T LTMR series, a modular line of motor management controllers engineered for comprehensive motor supervision. Its design incorporates built-in current transformers for measuring three-phase current from 0.4 to 27 A, along with support for external CTs for extended ranges. The controller integrates seamlessly into automation systems via Ethernet/IP and Modbus/TCP, enabling real-time data exchange and predictive motor monitoring. Commonly installed in industrial control panels, it supports multiple I/O, fault signaling functions, and motor temperature monitoring, providing a centralized solution for protective, diagnostic, and control operations.
Key Features:
- Integrated motor controller: Provides monitoring, protection, and control for motors up to 27 A.
- Ethernet/IP and Modbus/TCP: Supports modern industrial network integration.
- Built-in current transformers: Measures three-phase currents from 0.4 to 27 A.
- Multiple logic I/O: Includes 6 inputs and 3 relay outputs for flexible control.
- Wide input voltage range: Operates on 100–240 VAC for global compatibility.
- Fault signaling relay: Dedicated relay output for overload or fault indication.
- DIN rail mounting: Simplifies installation in compact control panel layouts.
- Industrial protection: Rated for IP20/IP54 environments and temperatures from -20 to 60 °C.
The LTMR27EFM delivers the reliability and precision required for advanced motor protection and networked automation systems.
