Product Description P/N: LUB32

Description / Specifications

Description

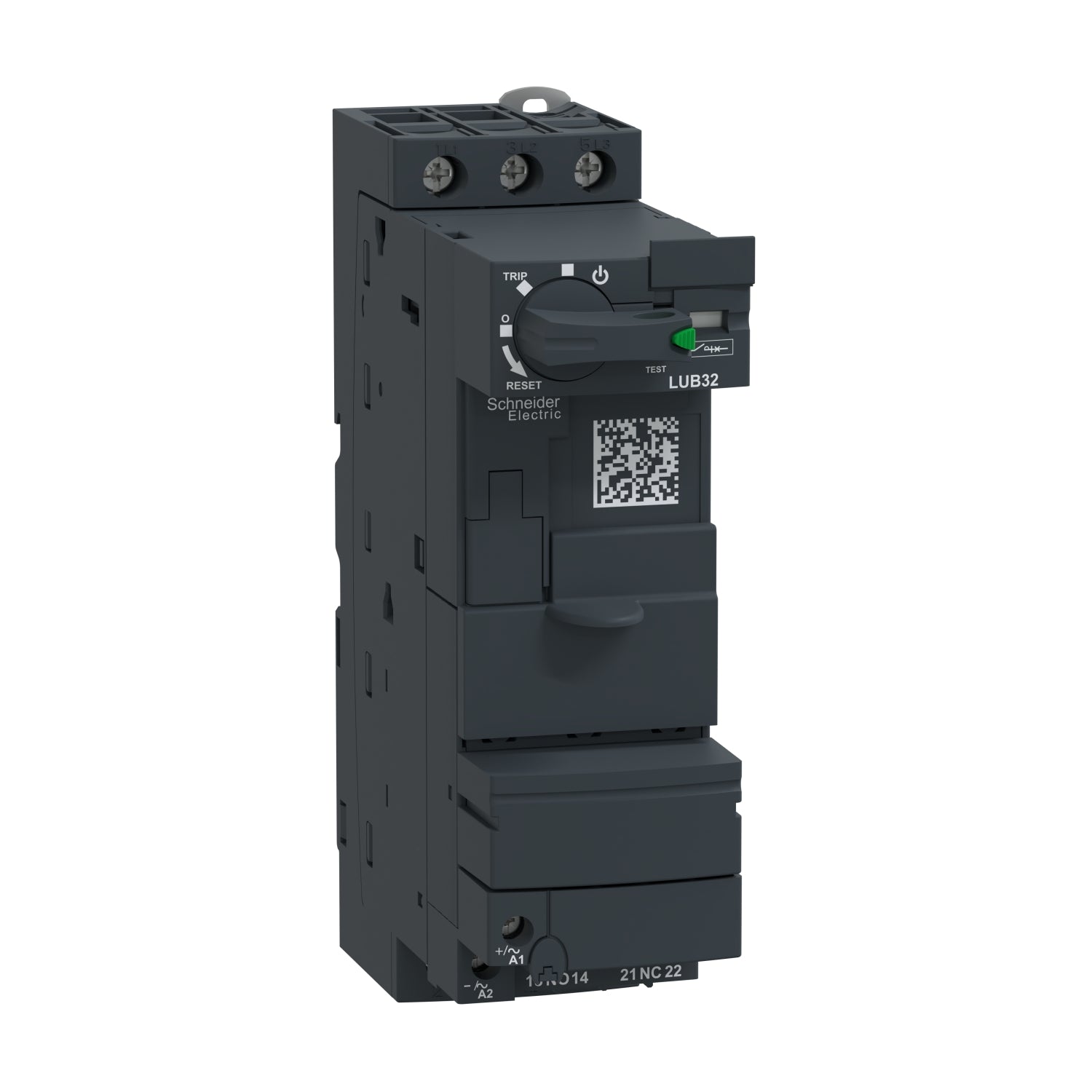

The Schneider Electric LUB32 IEC Starter is a component from the TeSys U series, designed as a standard power base for 3-phase motor applications. It features 3 poles (3NO) with a current rating of 32A at 690V. The starter is intended to be combined with a control unit LUC to create a TeSys U starter controller, suitable for motor applications up to 15kW at 400V.

This power base incorporates power contacts, a control coil, and a rotary handle, forming a modular design that allows for additional modules to be added. This facilitates the creation of an "all in one" starter controller with basic or advanced protection and control functions. The unit includes a control terminal block and blanking shutters to cover empty cavities.

With a compact width of 45mm, the power base supports DIN-rail mounting and screw fixing, featuring a padlockable rotary handle for security. It offers a high breaking capacity of Icu 50kA at 400V and ensures start-stop control for 3600 cycles per hour.


Technical Specifications

Part #

LUB32

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Machine Parts

Subcategory

Clamp Motor Starter

Starter Type

Direct-on-Line (DOL) Starter

No. of Phases

Single Phase, Three Phase

Power Rating

-

Current Rating

32A

No. of Poles

3 Pole

Supply Voltage Min

230VAC

Supply Voltage Max

690VAC

IP / NEMA Rating

IP20

Product Range

TeSys U





Information About LUB32



The Schneider Electric LUB32 IEC Starter, designated as a power base within the LUB series, is engineered for industrial applications requiring robust motor control solutions. This component, part of the TeSys U product line, is specifically designed to accommodate 3-phase motor systems with a power rating of up to 15kW at 400V. It operates at a current rating of 32A and a voltage range spanning from 230VAC to 690VAC, making it suitable for a variety of industrial environments.

Featuring a modular design, the LUB32 power base incorporates essential components such as power contacts, a control coil, and a rotary handle. This design allows for the integration of additional modules, enabling the creation of comprehensive starter controllers with both basic and advanced protection and control functionalities.

The power base includes a control terminal block and blanking shutters to cover any empty cavities, ensuring safety and ease of installation. With a high breaking capacity of Icu 50kA at 400V, the LUB32 ensures reliable operation even in demanding industrial settings. Moreover, it offers start-stop control guaranteed for 3600 cycles per hour, enhancing operational efficiency and longevity.

Despite its robust capabilities, the LUB32 maintains a compact form factor with a width of 45mm, facilitating space-efficient installation. It supports both DIN-rail mounting and screw fixing, providing flexibility in deployment options. Additionally, the rotary handle is padlockable, enhancing security measures in industrial environments.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description


The Schneider Electric LUB32 IEC Starter is a component from the TeSys U series, designed as a standard power base for 3-phase motor applications. It features 3 poles (3NO) with a current rating of 32A at 690V. The starter is intended to be combined with a control unit LUC to create a TeSys U starter controller, suitable for motor applications up to 15kW at 400V.

This power base incorporates power contacts, a control coil, and a rotary handle, forming a modular design that allows for additional modules to be added. This facilitates the creation of an "all in one" starter controller with basic or advanced protection and control functions. The unit includes a control terminal block and blanking shutters to cover empty cavities.

With a compact width of 45mm, the power base supports DIN-rail mounting and screw fixing, featuring a padlockable rotary handle for security. It offers a high breaking capacity of Icu 50kA at 400V and ensures start-stop control for 3600 cycles per hour.


Technical Specifications

Part #

LUB32

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Machine Parts

Subcategory

Clamp Motor Starter

Starter Type

Direct-on-Line (DOL) Starter

No. of Phases

Single Phase, Three Phase

Power Rating

-

Current Rating

32A

No. of Poles

3 Pole

Supply Voltage Min

230VAC

Supply Voltage Max

690VAC

IP / NEMA Rating

IP20

Product Range

TeSys U





Information About LUB32



The Schneider Electric LUB32 IEC Starter, designated as a power base within the LUB series, is engineered for industrial applications requiring robust motor control solutions. This component, part of the TeSys U product line, is specifically designed to accommodate 3-phase motor systems with a power rating of up to 15kW at 400V. It operates at a current rating of 32A and a voltage range spanning from 230VAC to 690VAC, making it suitable for a variety of industrial environments.

Featuring a modular design, the LUB32 power base incorporates essential components such as power contacts, a control coil, and a rotary handle. This design allows for the integration of additional modules, enabling the creation of comprehensive starter controllers with both basic and advanced protection and control functionalities.

The power base includes a control terminal block and blanking shutters to cover any empty cavities, ensuring safety and ease of installation. With a high breaking capacity of Icu 50kA at 400V, the LUB32 ensures reliable operation even in demanding industrial settings. Moreover, it offers start-stop control guaranteed for 3600 cycles per hour, enhancing operational efficiency and longevity.

Despite its robust capabilities, the LUB32 maintains a compact form factor with a width of 45mm, facilitating space-efficient installation. It supports both DIN-rail mounting and screw fixing, providing flexibility in deployment options. Additionally, the rotary handle is padlockable, enhancing security measures in industrial environments.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
