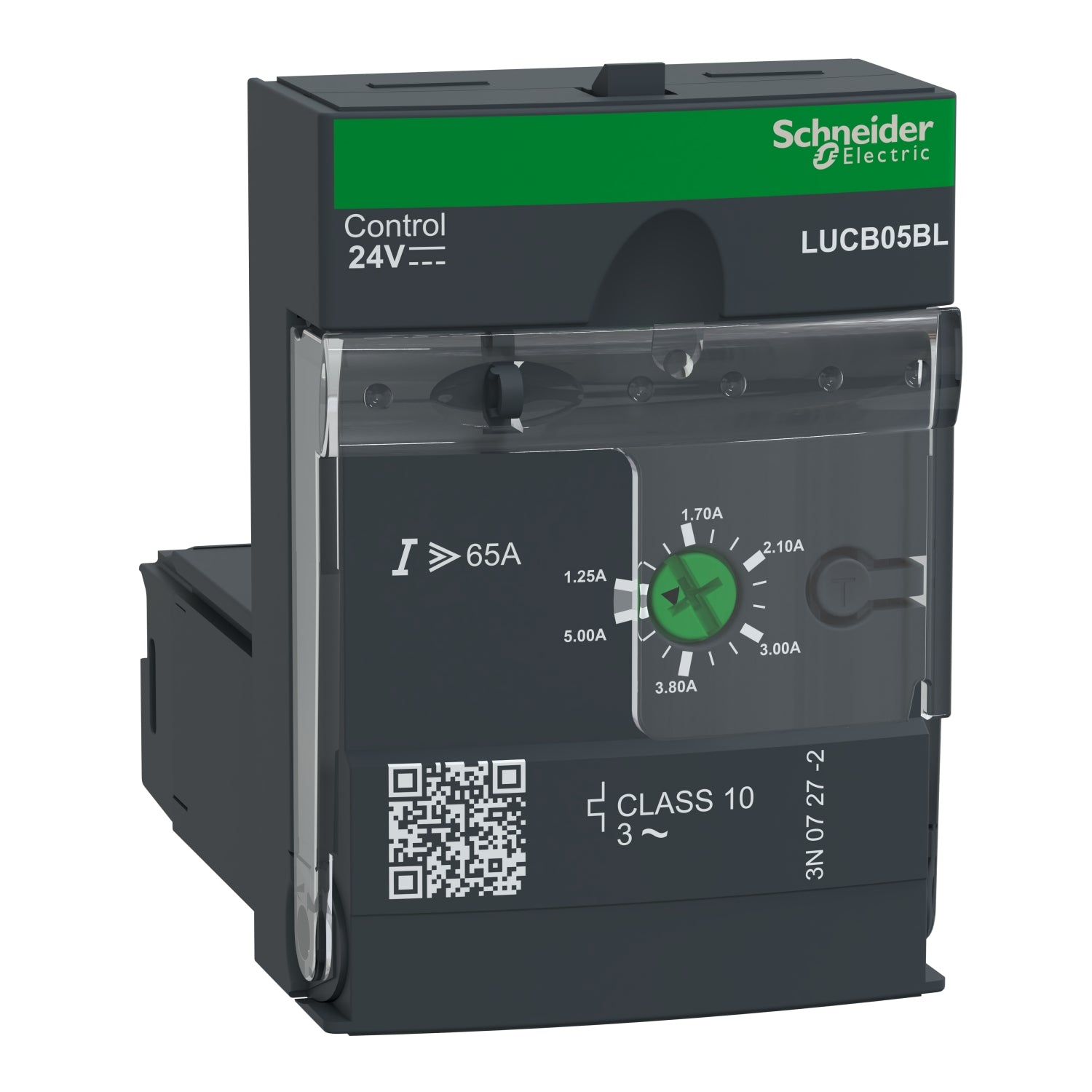

LUCB05BL | Schneider Electric Advanced control unit
- Regular price
- $159.00
- Sale price
- $159.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LUCB05BL
Description
The LUCB05BL is an advanced control unit designed for integration with TeSys Ultra systems, tailored for 3-phase motor applications ranging from 1.25A to 5A. It is intended for use with TeSys U starter controllers, particularly when inserted into advanced power bases such as LUB120, LUB320, and LUB380.
This unit offers comprehensive protection and diagnostic features for motor operation. It ensures full protection for motors within the rated current range of 1.25A to 5A, with adjustable settings for rated current (Ir). The overload tripping class is set at 10, with short-circuit protection activated at 13 times the maximum rated current (Irmax), and overcurrent protection at 14.2 times the rated current.
Technical Specifications
|
Part # |
LUCB05BL |
|
Category |
Servo Products |
|
Subcategory |
CNC Motor/Control |
|
[Ue] rated operational voltage |
690 V AC |
|
Network frequency |
40-60 Hz |
|
Load type |
3-phase motor - cooling: self-cooled |
|
Tripping threshold |
14.2 x Ir +/- 20% |
|
Phase failure sensitivity |
Yes |
|
[Uc] control circuit voltage |
24 V DC |
|
Fixing mode |
Plug-in (front face) |
|
Width |
45 mm |
|
Height |
66 mm |
|
Depth |
60 mm |
|
Compatibility code |
LUCB |
|
Protective treatment |
TH conforming to IEC 60068 |
|
Ambient air temperature for operation |
-25…70 °C |
|
Ambient air temperature for storage |
-40…85 °C |
|
Operating altitude |
2000 m |
|
Immunity to radioelectric fields |
10 V conforming to IEC 61000-4-6 |
|
Immunity to microbreaks |
3 ms |
|
Immunity to voltage dips |
70% / 500 ms conforming to IEC 61000-4-11 |
Information About LUCB05BL
The LUCB05BL is an advanced control unit designed for integration with TeSys Ultra systems, specifically engineered for 3-phase motor applications ranging from 1.25A to 5A. It is intended for use with TeSys U starter controllers, requiring insertion into advanced power bases such as LUB120, LUB320, and LUB380.
This unit offers comprehensive protection and diagnostic features for motor operation. It ensures full protection for motors within the rated current range of 1.25A to 5A, with adjustable settings for rated current (Ir). The overload tripping is classified as class 10, with short-circuit protection activated at 13 times the maximum rated current (Irmax), and overcurrent protection at 14.2 times the rated current.
Additional protective measures include safeguards against phase loss and insulation faults, though the latter exclusively protects equipment. The unit also incorporates a thermal overload alarm, which can be utilized locally via a LUFDA module or remotely using a LULC module.
For testing purposes, the LUCB05BL is equipped with a test push button capable of simulating overload scenarios. Control of the starter is facilitated by a 24V DC voltage input, controlled through terminals A1/A2 located in the power base.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
