LUCB12FU | Schneider Electric Advanced control unit
LUCB12FU | Schneider Electric Advanced control unit
Part #: LUCB12FU Manufactured by: Schneider Electric

LUCB12FU | Schneider Electric Advanced control unit

Regular price
$234.00
Sale price
$234.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The LUCB12FU is an advanced control unit designed for integration into TeSys Ultra systems, capable of managing 3-phase mo...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: LUCB12FU
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
LUCB12FU | Schneider Electric Advanced control unit
    LUCB12FU | Schneider Electric Advanced control unit
LUCB12FU | Schneider Electric Advanced control unit
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: LUCB12FU

Description / Specifications

Description

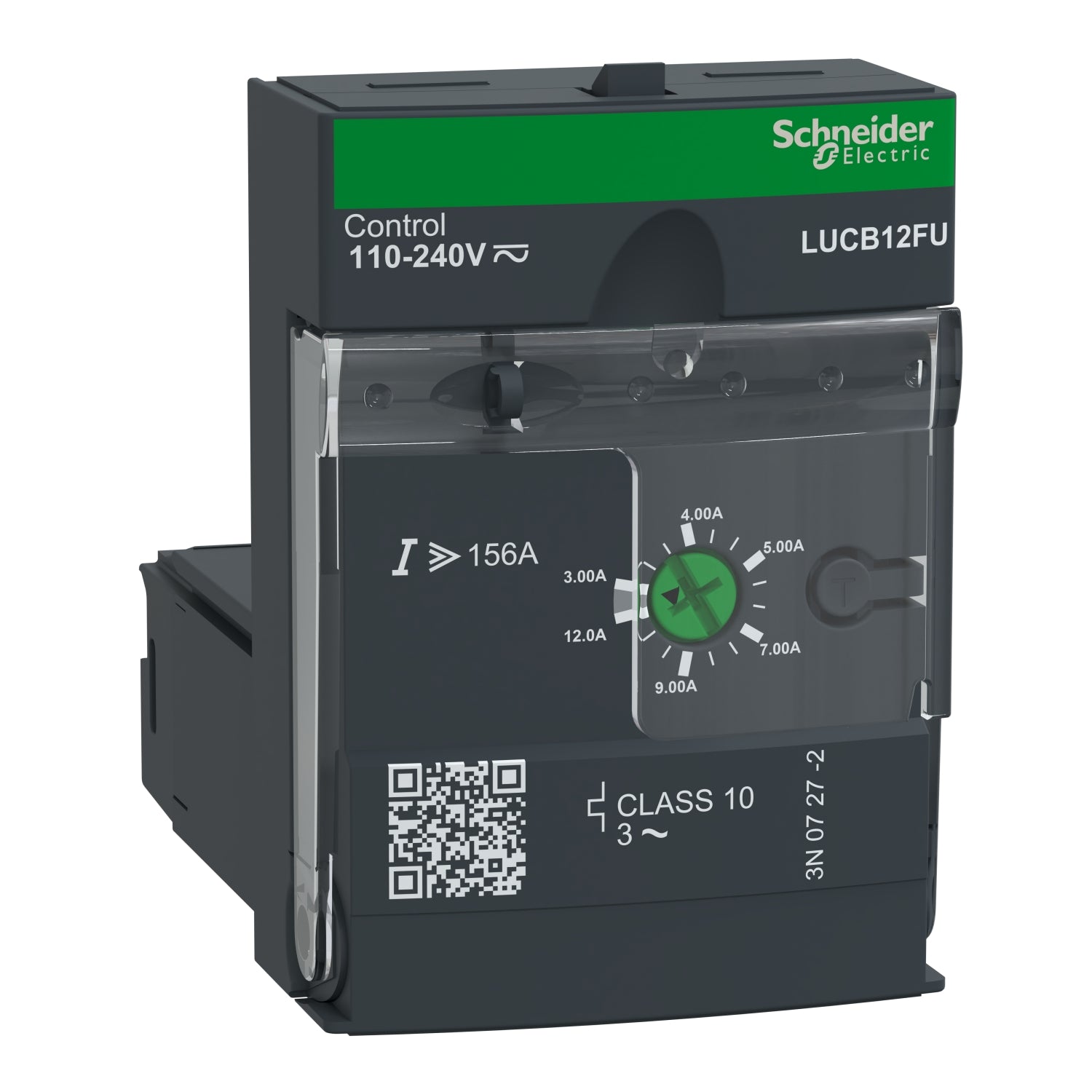

The LUCB12FU is an advanced control unit from the TeSys Ultra series designed for integration into advanced power bases such as LUB120, LUB320, and LUB380 to create a TeSys U starter controller. It facilitates control and diagnostics for 3-phase motor applications up to 5.5kW@400V.

This unit ensures comprehensive protection for motors with a rated current (Ir) ranging from 3A to 12A (adjustable), offering overload tripping at class 10, short circuit protection at 13 times Irmax, overcurrent protection at 14.2 times Ir, phase loss detection, and insulation fault protection for equipment only.

Featuring a thermal overload alarm, the LUCB12FU can be used locally with a LUFDA module or remotely with a LULC module. Additionally, it includes a test push button for overload simulation.



Technical Specifications


Part #

LUCB12FU

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Contactors & Starters

Subcategory

Control Part Range

Range of product

TeSys Ultra

Product name

TeSys Ultra

Device short name

LUCB

Product or component type

Advanced control unit

Device application

Motor control

Product specific application

Basic protection and advanced functions, communication

[Ue] rated operational voltage

690 V AC

Network frequency

40...60 Hz

Load type

3-phase motor - cooling: self-cooled

Rated motor current adjustment range

3…12 A

Tripping threshold

14.2 x Ir +/- 20 %

Phase failure sensitivity

Yes

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-6-2

Protective treatment

TH conforming to IEC 60068

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

2000 m

Immunity to radioelectric fields

10 V conforming to IEC 61000-4-6

Immunity to microbreaks

3 ms

Immunity to voltage dips

70 % / 500 ms conforming to IEC 61000-4-11


Information About LUCB12FU

The LUCB12FU is an advanced control unit designed for integration into the TeSys Ultra system. Specifically engineered for 3-phase motor applications ranging from 3A to 12A, this unit offers comprehensive protection and diagnostic capabilities.

Intended for use within advanced power bases such as LUB120, LUB320, and LUB380, the LUCB12FU facilitates the creation of a TeSys Ultra starter controller, suitable for managing motors with power ratings up to 5.5kW at 400V.

Key features of the LUCB12FU include full motor protection with a rated current range adjustable from 3A to 12A (Ir), overload tripping configured to class 10 standards, short-circuit protection activated at 13 times the maximum rated current (Irmax), overcurrent protection triggered at 14.2 times Ir, as well as safeguards against phase loss and insulation faults (equipment protection only).

Furthermore, the unit incorporates a thermal overload alarm, enabling local alarm functionality with the optional LUFDA module or remote alarm capabilities with the LULC module. Additionally, a test push button facilitates overload simulation for diagnostic purposes.

The control unit operates within a voltage range of 110-240V AC or 110-220V DC, facilitating control of the starter through designated control terminals A1/A2 within the power base.

Certified for compliance with various international standards including IEC, UL, CSA, CCC, EAC, and Marine regulations, the LUCB12FU ensures reliable performance and safety across diverse operational environments. Furthermore, it adheres to Green Premium standards, demonstrating compliance with RoHS and REACh directives, thus aligning with environmentally conscious practices.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
