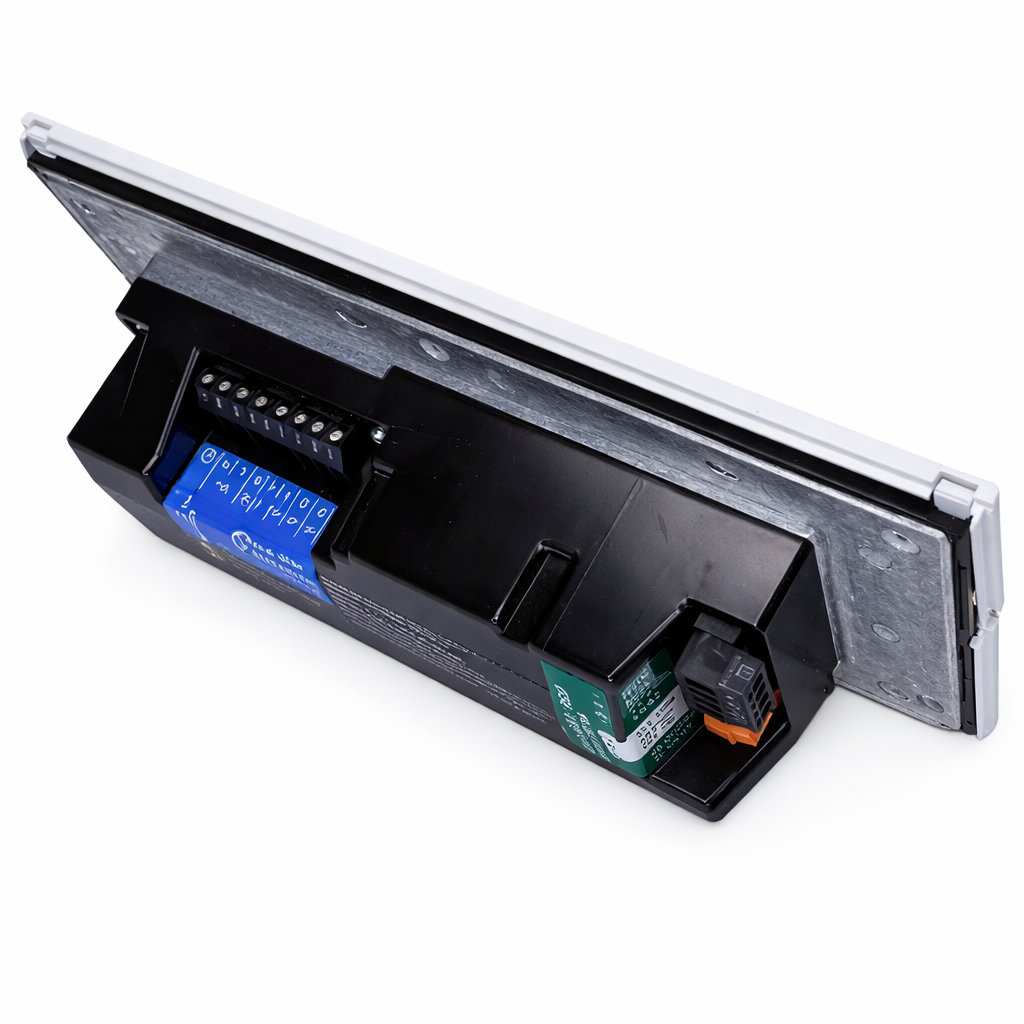

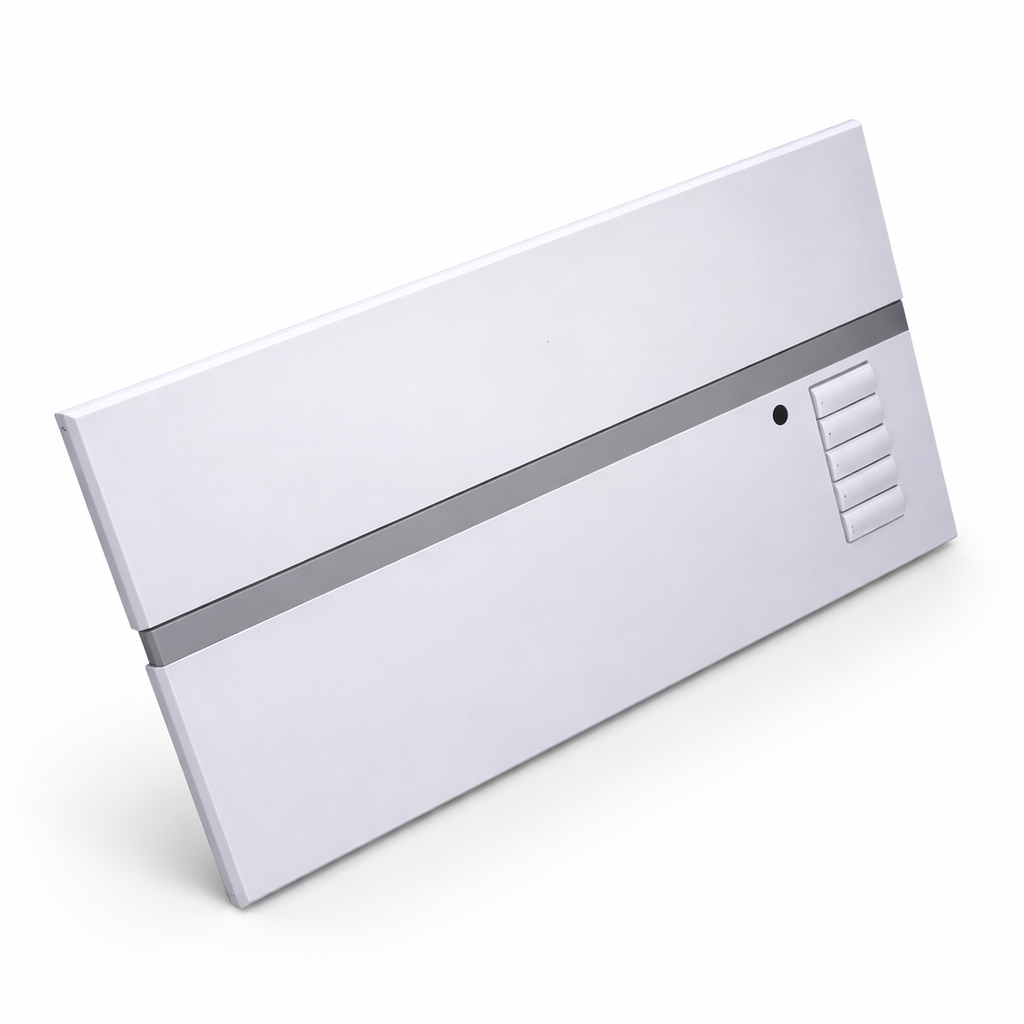

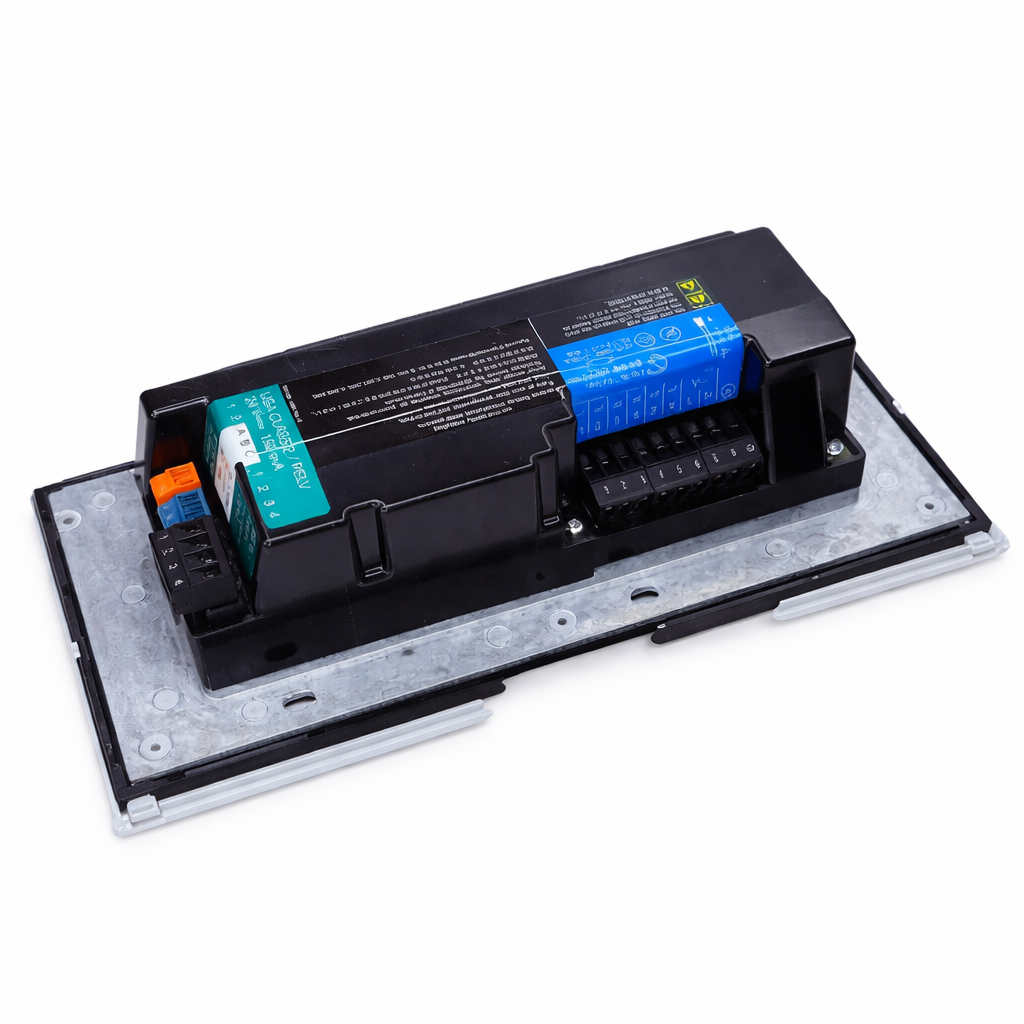

QSGR-6P | Lutron GRAFIK Eye QS 6-Zone Wired Lighting Control Unit
- Regular price
- $2,577.00
- Sale price
- $2,577.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QSGR-6P
Description
The Lutron QSGR-6P is a GRAFIK Eye QS wired 6-zone lighting control main unit designed for precise scene-based dimming and centralized lighting management. Engineered for commercial and high-end residential applications, it supports multiple lamp types and delivers up to 2300W total load capacity. The unit enables seamless integration within QS systems, providing reliable performance and flexible lighting customization.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron Electronics Co., Inc. |
| Category | Lighting Controls |
| Part Number | QSGR-6P |
| Subcategory | Lighting Control Unit |
| Model | GRAFIK Eye QS |
| Type | 6-Zone Wired (Non-RF) |
| Voltage Rating | 120โ127V / 220โ240V AC, 50/60 Hz |
| Power Rating | 2300 W |
| Number of Scenes | 16 |
| Fade Time | 3 Seconds |
| Lamp Compatibility | Incandescent, Halogen, Fluorescent, CFL, Magnetic Low Voltage, Neon/Cold Cathode |
| Wall Box Type | 4-Gang Backbox |
| Wall Box Depth Requirement | 3.5 Inch |
| Width | 9.38 Inch |
| Height | 4.69 Inch |
| Depth | 2.36 Inch |
| Operating Temperature | 32 to 104ยฐF (0 to 40ยฐC) |
| Approvals | UL, CSA, NOM, CEC |
| Country of Manufacture | USA |
| Weight | Approx. 2.5 lb |
Information About QSGR-6P
The QSGR-6P is a non-RF GRAFIK Eye QS 6-zone control unit built for structured wired lighting systems operating at 120โ127V or 220โ240V AC. It features a robust wall-mounted design intended for installation in a 4-gang backbox and supports a wide range of load types including incandescent, halogen, fluorescent, magnetic low-voltage, CFL, and neon/cold cathode lighting. As part of the QS ecosystem, it communicates with compatible keypads, sensors, shade controls, and integration interfaces to form scalable lighting networks. The unit incorporates advanced control technologies such as scene programming, fade control, occupancy sensor input, and an integrated timeclock for automated operation.
Key Features:
- Six-Zone Lighting Control: Independently manages up to six lighting zones from a single wall-mounted unit.
- 2300W Total Load Capacity: Supports high combined lighting loads for commercial and large residential spaces.
- 16 Programmable Scenes: Four preset scenes with direct access plus twelve additional scenes via QS devices.
- 3-Second Fade Time: Smooth transition between lighting scenes for enhanced visual comfort.
- Multi-Lamp Compatibility: Supports incandescent, halogen, fluorescent, magnetic low voltage, CFL, and neon/cold cathode loads.
- Integrated Timeclock: Built-in astronomic scheduling for automated lighting adjustments.
- QS Communication Link: Enables integration with up to 100 QS devices including shades, sensors, and wallstations.
- Occupancy Sensor Input: Dedicated input with 24V power supply for direct sensor connection.
The QSGR-6P delivers the reliability and precision required for advanced multi-zone architectural lighting control systems.
