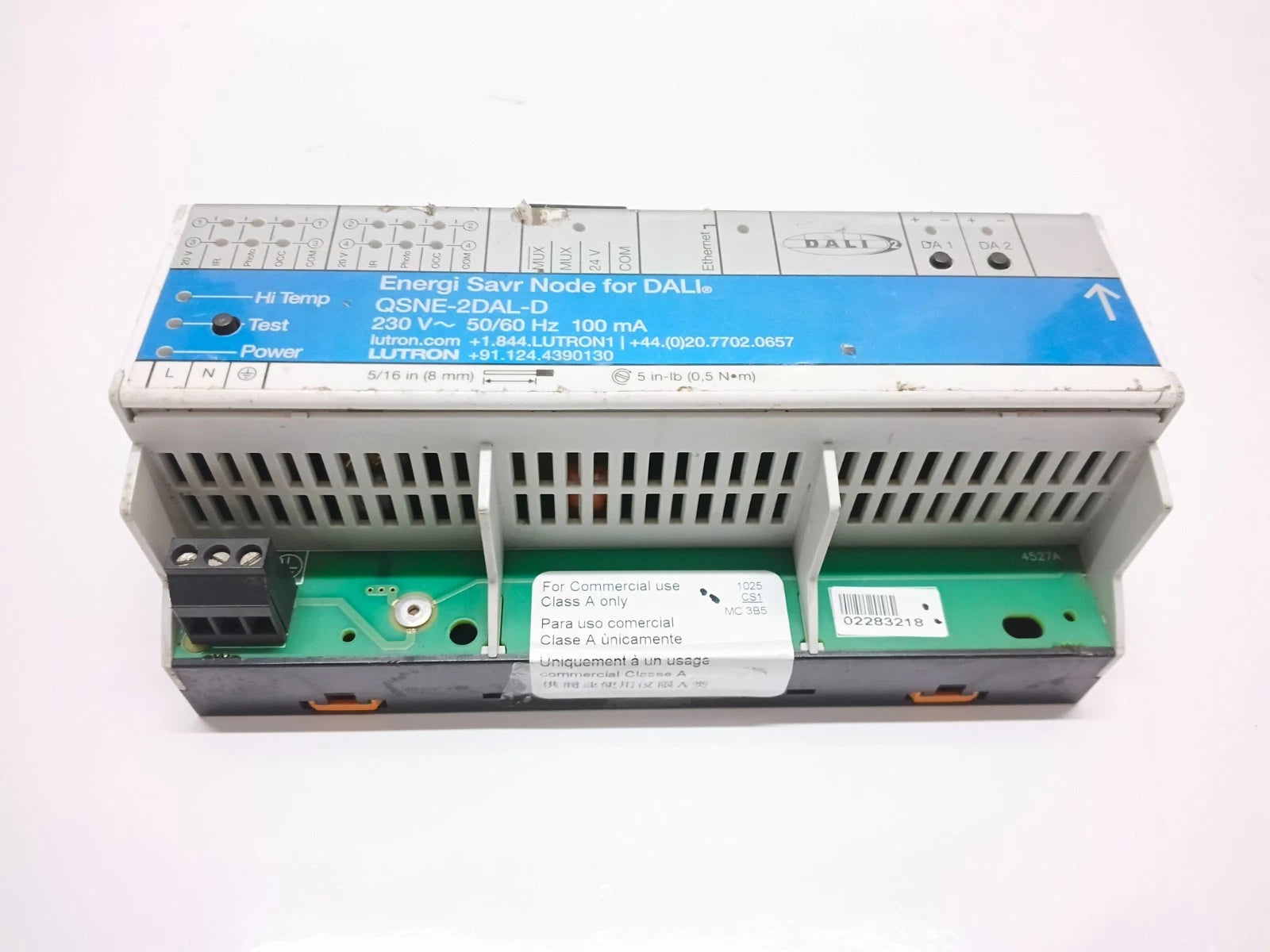

Lutron QSNE-2DAL-D | Dual-Bus DALI-2 Fixture Controller, Energi Savr Node, 230V, QS Link Integration
- Regular price
- $837.00
- Sale price
- $837.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: QSNE-2DAL-D
Description
The Lutron QSNE-2DAL-D Energi Savr Node for DALI® is a DALI-2® certified application controller designed to manage up to two independent DALI® buses. Each bus supports up to 64 DALI®-compliant digital addressable dimming loads. It enables seamless integration of lighting with occupancy/daylight sensors and QS devices for intelligent and energy-efficient control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Model Number | QSNE-2DAL-D |
| Category | Lighting Control |
| Subcategory | DALI® Interface Modules |
| Input Voltage | 220–240 V~ 50/60 Hz, 100 mA |
| DALI Output | Two independent buses, 128 mA (guaranteed), 250 mA (max) each |
| Zone Support | 64 digital dimming loads per bus (128 total) |
| Group Support | 16 groups per DALI bus |
| Emergency Fixture Support | Maintained & non-maintained fixtures (Quantum integration) |
| Tunable White Support | Yes (2-channel control) |
| Sensor Inputs | 4 Occupancy, 4 Daylight, 4 IR |
| QS Link | Yes, for integration with GRAFIK Eye, seeTouch QS, QSM, QSE-IO |
| Power Draw Units (PDU) | Supplies 3 PDUs to the QS Link |
| Surge Protection | 6 kV, 3000 A (meets ANSI/IEEE 62.31-1980) |
| Mounting | DIN Rail (9 modules, 161.7 mm) |
| Ambient Temp Range | 0°C to 40°C |
| Humidity | <90% non-condensing |
| Certifications | DALI-2®, IEC 60669-2-5, ISO 9001:2015, CE, UL, NOM |
| Compatible Systems | Lutron Quantum, HomeWorks QS |
| Dimensions | Approx. 9 DIN-wide (est. 161.7 mm) |
Information About QSNE-2DAL-D
The QSNE-2DAL-D is a DIN-rail mounted controller that provides both bus power and command signals to DALI® lighting systems. It supports advanced functions such as lamp/gear failure reporting, emergency fixture management, tunable white control, and programmable response to occupancy and daylight inputs. The unit also features QS link connectivity for integration with other Lutron systems like Quantum or HomeWorks QS.
Key Features:
- DALI-2 Certified: Ensures high compatibility and performance.
- Dual DALI® Bus Output: Powers and controls two buses (up to 64 loads each).
- Built-In Sensor Support: Directly connects 4 occupancy, 4 daylight, and 4 IR receivers.
- QS Integration: Full compatibility with QS control stations, sensor modules, and GRAFIK Eye.
- Advanced Control Features: Lamp and control gear failure reporting, Two-channel tunable white support (Quantum v3.4), Emergency fixture monitoring, Power failure memory
- DIN Rail Mounting: 9-module width, mounts in standard IP20-rated panels.
- No Commissioning Required: Default configuration ready out of the box.
- App Support: Program standalone units with the Lutron Energi Savr app via iPhone/iPod and Wi-Fi router.
