Lutron VB-8200 Vibration Meter Portable Velocity and Acceleration Measurement Device
- Regular price
- $659.00
- Sale price
- $659.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: VB-8200
Description

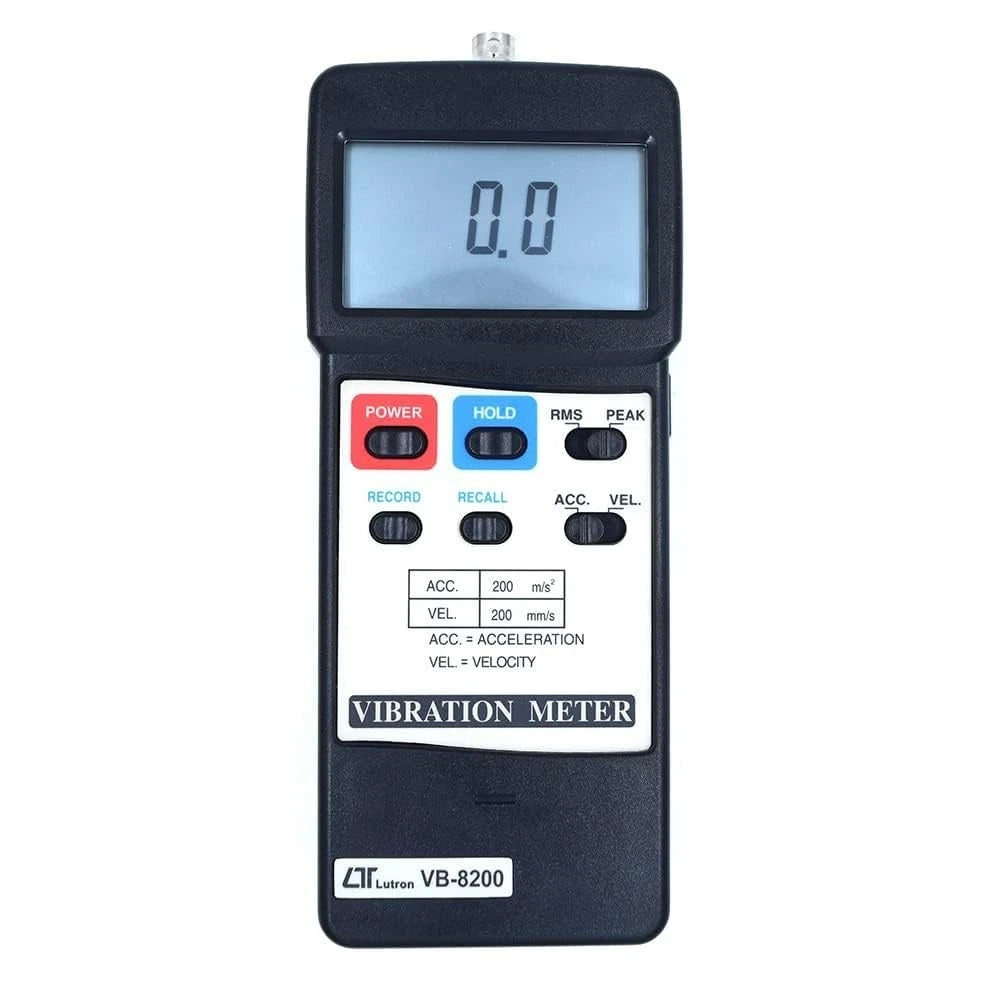

The Lutron VB-8200 vibration meter is a precision handheld instrument designed for measuring vibration velocity and acceleration in industrial equipment. It provides accurate RMS and peak value readings, making it suitable for machinery diagnostics, maintenance, and condition monitoring. The unit supports a wide measurement range and reliable performance for field and laboratory applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Test & Measurement |
| Part Number | VB-8200 |
| Subcategory | Vibration Meters |
| Measurement Types | Velocity, Acceleration (RMS & Peak) |
| Velocity Range | 0.5 to 199.9 mm/s |
| Acceleration Range | 0.5 to 199.9 m/s² |
| Frequency Range | 10 Hz to 1 kHz |
| Accuracy | ±(5% + 2d) at 160 Hz, 80 Hz @ 23 ± 5°C |
| Calibration Points | Velocity: 50 mm/s (160 Hz); Acceleration: 50 m/s² (160 Hz) |
| Sampling Time | Approx. 1 second |
| Data Output | RS232 / USB |
| Display | 61 x 34 mm LCD, 15 mm digits |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | < 80% RH |
| Power Supply | 9V battery (006P, MN1604, PP3 or equivalent) |
| Power Consumption | Approx. DC 6 mA |
| Dimensions | 180 x 72 x 32 mm |
| Probe Dimensions | 19 mm diameter x 21 mm |
| Weight | Meter: 230 g; Probe: 38 g |
Information About VB-8200

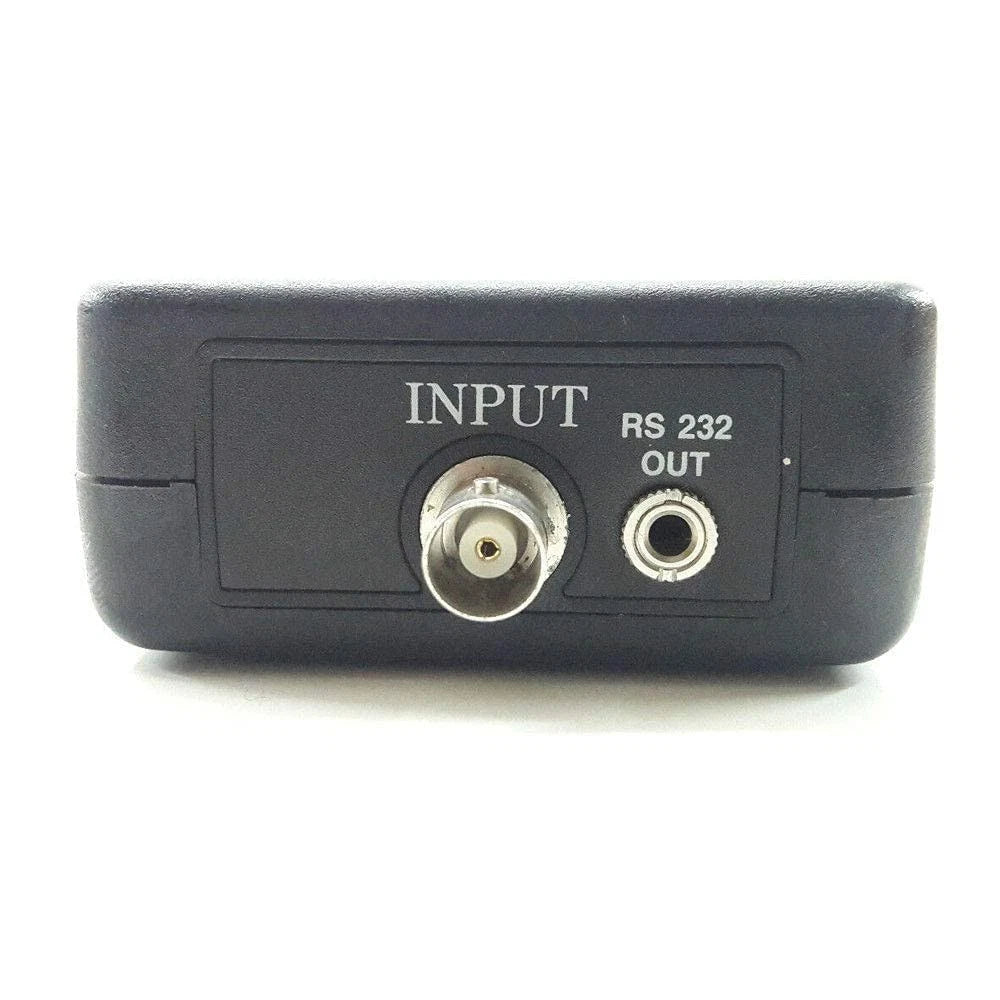

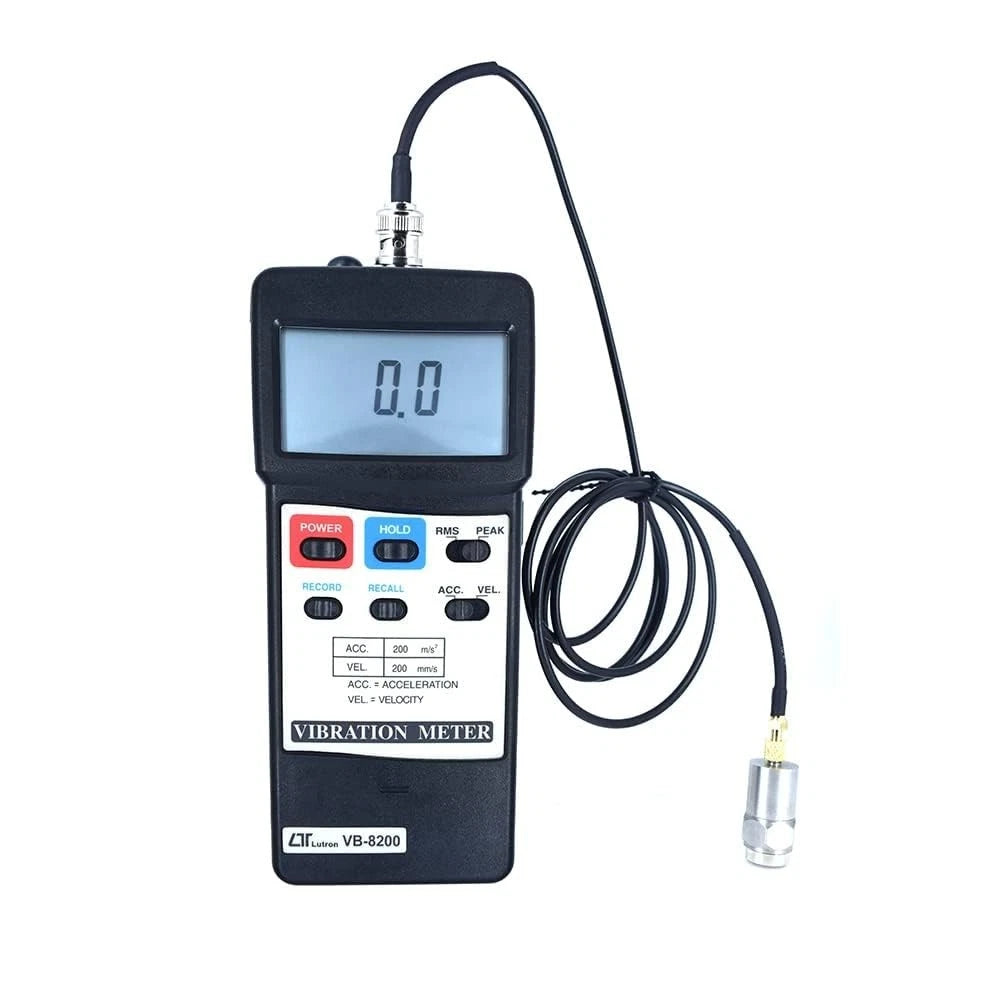

The VB-8200 is a portable vibration measurement device engineered with an exclusive microcomputer circuit for stable and consistent signal processing. It is designed for use with a remote vibration sensor probe, allowing accurate readings in hard-to-reach or critical measurement points. The device supports both velocity and acceleration measurements across a broad frequency range, making it compatible with various industrial machines such as motors, pumps, and rotating equipment. With RS232 and USB data output capabilities, it enables integration with data acquisition systems and software for analysis and record-keeping.
Key Features:
- Dual Measurement Modes: Measures both vibration velocity and acceleration for comprehensive analysis
- RMS and Peak Values: Provides RMS and peak readings for accurate condition monitoring
- Wide Measurement Range: Covers 0.5 to 199.9 mm/s (velocity) and 0.5 to 199.9 m/s² (acceleration)
- Frequency Response: Operates within a 10 Hz to 1 kHz frequency range for versatile applications
- Data Hold & Min/Max: Captures and retains readings including minimum and maximum values
- Digital Output Interface: Supports RS232 and USB connectivity for external data logging
- Microcomputer Circuit Design: Ensures stable performance and precise signal processing
- Portable and Complete Kit: Includes sensor probe, carrying case, and battery for immediate use
The VB-8200 delivers the reliability and precision required for industrial vibration analysis and predictive maintenance tasks.
Description
The Lutron VB-8200 vibration meter is a precision handheld instrument designed for measuring vibration velocity and acceleration in industrial equipment. It provides accurate RMS and peak value readings, making it suitable for machinery diagnostics, maintenance, and condition monitoring. The unit supports a wide measurement range and reliable performance for field and laboratory applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Test & Measurement |
| Part Number | VB-8200 |
| Subcategory | Vibration Meters |
| Measurement Types | Velocity, Acceleration (RMS & Peak) |
| Velocity Range | 0.5 to 199.9 mm/s |
| Acceleration Range | 0.5 to 199.9 m/s² |
| Frequency Range | 10 Hz to 1 kHz |
| Accuracy | ±(5% + 2d) at 160 Hz, 80 Hz @ 23 ± 5°C |
| Calibration Points | Velocity: 50 mm/s (160 Hz); Acceleration: 50 m/s² (160 Hz) |
| Sampling Time | Approx. 1 second |
| Data Output | RS232 / USB |
| Display | 61 x 34 mm LCD, 15 mm digits |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | < 80% RH |
| Power Supply | 9V battery (006P, MN1604, PP3 or equivalent) |
| Power Consumption | Approx. DC 6 mA |
| Dimensions | 180 x 72 x 32 mm |
| Probe Dimensions | 19 mm diameter x 21 mm |
| Weight | Meter: 230 g; Probe: 38 g |
Information About VB-8200
The VB-8200 is a portable vibration measurement device engineered with an exclusive microcomputer circuit for stable and consistent signal processing. It is designed for use with a remote vibration sensor probe, allowing accurate readings in hard-to-reach or critical measurement points. The device supports both velocity and acceleration measurements across a broad frequency range, making it compatible with various industrial machines such as motors, pumps, and rotating equipment. With RS232 and USB data output capabilities, it enables integration with data acquisition systems and software for analysis and record-keeping.
Key Features:
- Dual Measurement Modes: Measures both vibration velocity and acceleration for comprehensive analysis
- RMS and Peak Values: Provides RMS and peak readings for accurate condition monitoring
- Wide Measurement Range: Covers 0.5 to 199.9 mm/s (velocity) and 0.5 to 199.9 m/s² (acceleration)
- Frequency Response: Operates within a 10 Hz to 1 kHz frequency range for versatile applications
- Data Hold & Min/Max: Captures and retains readings including minimum and maximum values
- Digital Output Interface: Supports RS232 and USB connectivity for external data logging
- Microcomputer Circuit Design: Ensures stable performance and precise signal processing
- Portable and Complete Kit: Includes sensor probe, carrying case, and battery for immediate use
The VB-8200 delivers the reliability and precision required for industrial vibration analysis and predictive maintenance tasks.
