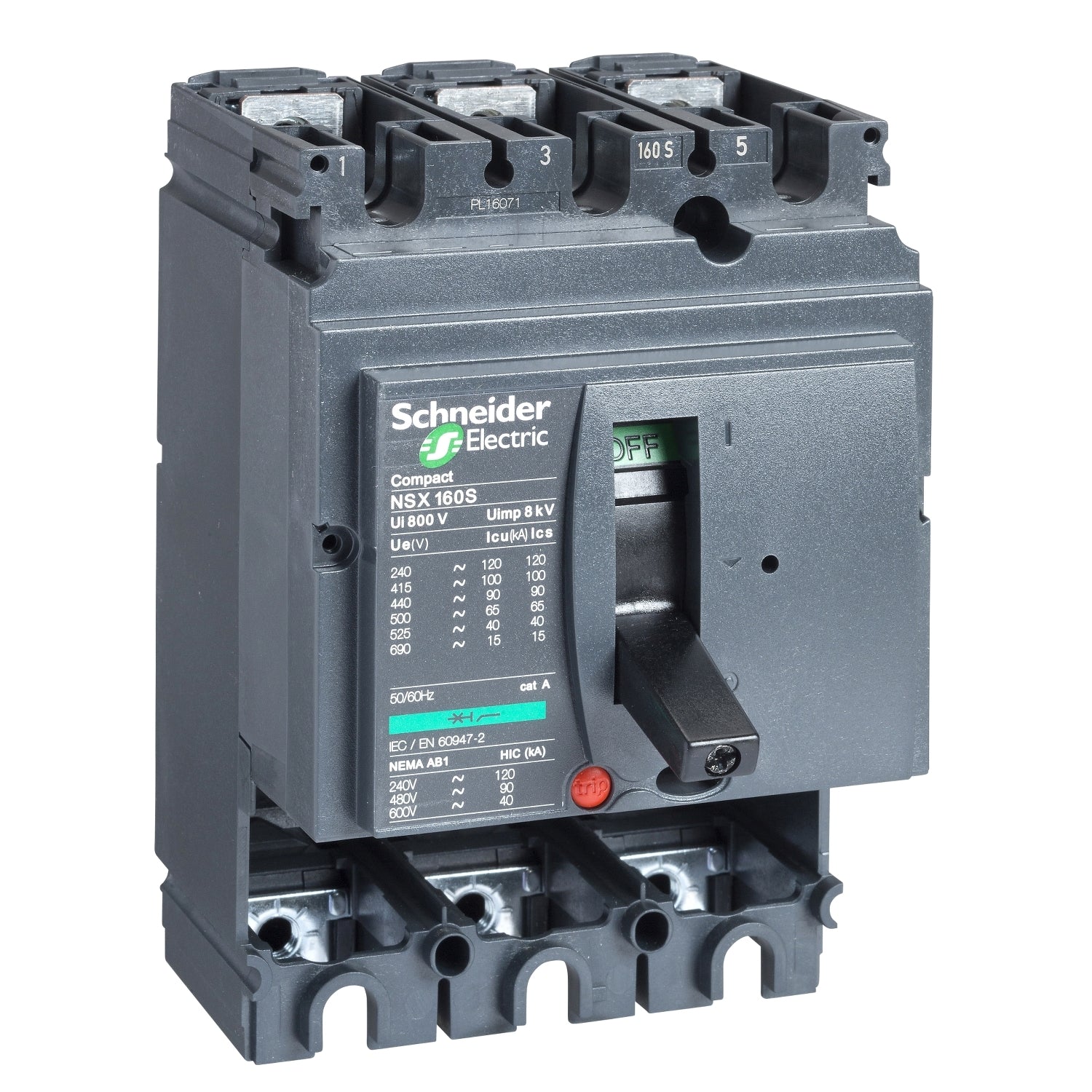

LV431405 | Schneider Electric Circuit breaker
- Regular price
- $2,542.00
- Sale price
- $2,542.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LV431405
Description
C.B. frame without trp unit - Schneider Electric / Merlin Gerin (Compact NSX) - 3 poles (3P3d) - Rated current 250A - Short circuit breaking capacity (Icu) 150kA (380-415Vac) - Lug connection
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LV431405 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Compact NSX |
| Type | LV4 |
| Voltage | 690 |
| Amperage | 250 |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Phase | 3 |
| AIC Rating | 150kA@415V |
| Connection | Bolt-On |
Information About LV431405
This is a 3 poles basic frame for Compact NSX250L. Compact NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 150kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX250L is part of Schneider Electric EcoStruxure Power architecture.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
C.B. frame without trp unit - Schneider Electric / Merlin Gerin (Compact NSX) - 3 poles (3P3d) - Rated current 250A - Short circuit breaking capacity (Icu) 150kA (380-415Vac) - Lug connection
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LV431405 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Compact NSX |
| Type | LV4 |
| Voltage | 690 |
| Amperage | 250 |
| Poles | 3 |
| Protection | Thermal Magnetic |
| Phase | 3 |
| AIC Rating | 150kA@415V |
| Connection | Bolt-On |
Information About LV431405
This is a 3 poles basic frame for Compact NSX250L. Compact NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 150kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX250L is part of Schneider Electric EcoStruxure Power architecture.
