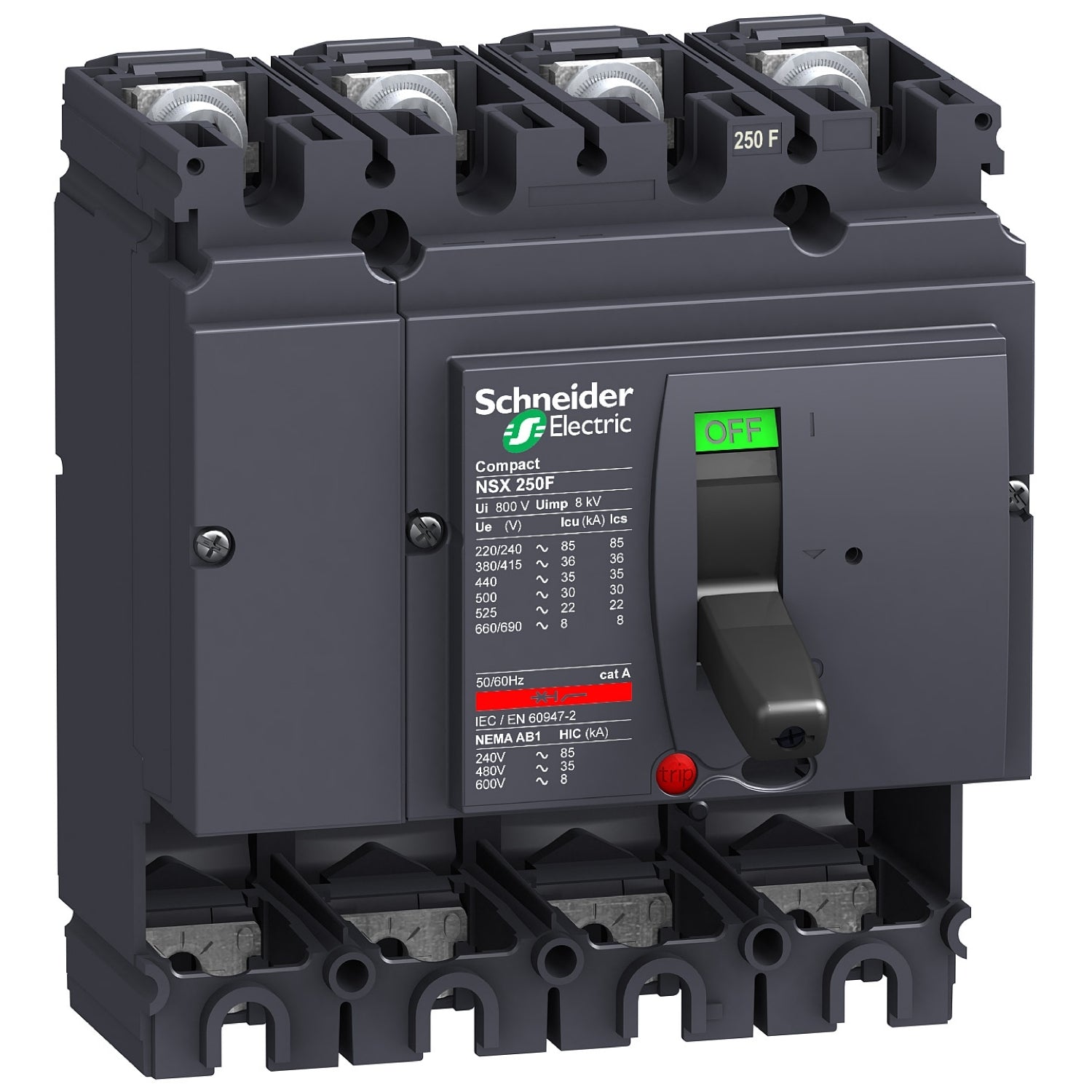

LV431408 | Schneider Electric Compact NSX250F LV4 4-Pole Bolt-On Frame 250A Thermal Magnetic
- Regular price
- $2,649.00
- Sale price
- $2,649.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LV431408
Description
The Schneider Electric LV431408 is a Compact NSX250F molded case circuit breaker frame designed to support 250A applications in low-voltage distribution systems. Operating at up to 690V with a 36kA breaking capacity at 415V, it provides a reliable and adaptable foundation for configurable protection architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LV431408 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Compact NSX |
| Type | LV4 |
| Voltage Rating | 690 V |
| Amperage | 250 A |
| AIC Rating | 36 kA @ 415 V |
| Protection Type | Thermal Magnetic |
| Phase | 3-Phase |
| Poles | 4 |
| Connection Type | Bolt-On |
Information About LV431408
The Schneider Electric LV431408 is a 4-pole Compact NSX250F frame designed to accommodate a wide range of interchangeable trip units, allowing customized protection for various electrical distribution applications. With a 36 kA breaking capacity at 415 V and a maximum operational voltage of 690 V, it meets demanding fault protection requirements in commercial and industrial installations. Its bolt-on design ensures secure mounting, while compatibility with multiple accessories supports functional expansion. Built for space efficiency and system scalability, the frame adheres to international standards, forming a robust foundation for Schneider Electric’s EcoStruxure power distribution architecture.
Key Features:
- Modular Frame Construction: Provides a base for configuring customized protection by accepting multiple thermal magnetic or electronic trip units tailored to specific installation needs.
- High Interrupting Capacity: Rated at 36 kA @ 415 V, ensuring effective fault clearing performance in medium-demand industrial and commercial networks.
- Wide Voltage Compatibility: Operates up to 690 V, supporting use in a variety of global low-voltage distribution systems while maintaining reliable protection characteristics.
- Four-Pole Architecture: Protects all phases including the neutral, making it suitable for balanced and unbalanced loads or systems with sensitive neutrals.
- Bolt-On Mounting Design: Ensures secure mechanical connection and simplified installation within switchboards or distribution panels.
- Thermal Magnetic Protection: Offers dependable overload and short-circuit protection using industry-standard trip technology for predictable system safety.
- Trip Unit Flexibility: Fully compatible with Schneider Electric's range of NSX trip units, allowing upgrades or adaptations as system requirements change.
- Compliance With Global Standards: Meets IEC 60947 and other international approvals, ensuring safe operation and worldwide acceptability in electrical installations.
The LV431408 delivers the reliability and precision required for configurable, high-performance molded case protection in modern electrical distribution systems.
