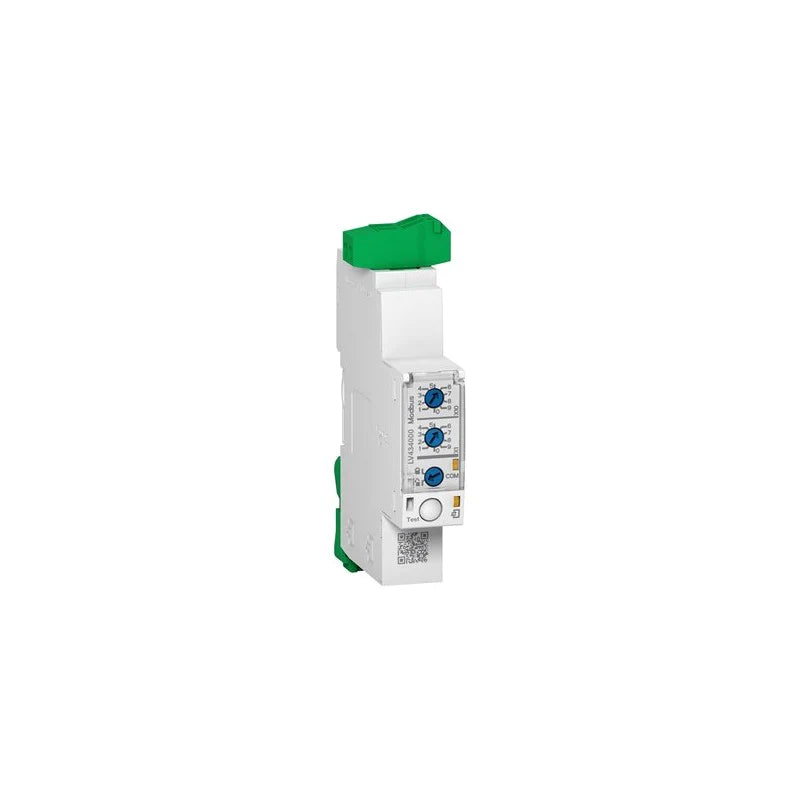

Product Description P/N: LV434000
Description
The Schneider Electric LV434000 is an interface module designed for use with Compact NSX circuit breakers to enable communication with monitoring systems. It collects status and measurement data from the circuit breaker and transmits it to supervisory systems.
Technical Specifications
| Brand | Schneider Electric |
| Communication Network Type | Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45 Universal Logic Plug on 2-port RJ45 |
| Input Voltage | 24 V DC - 20...10 % |
| Output Voltage | 24 V DC |
| Compatibility Code | IFM |
| Connections - Terminals | RJ45 connector screw type terminals |
| Current Consumption | 30 mA 24 V DC room temperature |
| Flame Retardance | V0 conforming to UL 94 |
| Depth | 73 mm |
| Height | 109 mm |
| Width | 18 mm |
| Memory Type | EEPROM data storage |
| Mounting Mode | by clips |
| Output Current | 3 A |
| Power Consumption | 1.635 W |
Information About LV434000
The LV434000 is part of the Schneider Electric Compact NSX communication accessories family, developed to provide connectivity and digital monitoring for molded-case circuit breakers. It acts as an IFM (Interface Module) between the Compact NSX breaker and communication networks, enabling access to key electrical parameters such as current, voltage, energy, breaker status, and trip information. It connects to the Micrologic trip unit of the breaker and communicates via Modbus RTU (RS-485) protocol for integration into SCADA or building management systems. The module is DIN rail–mounted and powered by a 24V DC supply. Integrated LEDs provide diagnostics for power, communication, and module status, simplifying commissioning and troubleshooting.
Key Features:
- Design: Communication interface module for Compact NSX circuit breakers.
- Function: Enables monitoring of current, voltage, energy, and breaker status.
- Communication: Modbus RTU (RS-485) interface for SCADA/BMS integration.
- Compatibility: Works with Compact NSX breakers fitted with Micrologic trip units.
- Diagnostics: LED indicators for power, communication, and fault status.
- Installation: DIN rail–mountable design for control panels.
- Power Supply: Operates on 24V DC.
- Application Range: Suitable for power distribution, energy management, and industrial electrical systems.
The LV434000 delivers the connectivity, monitoring, and integration capabilities required for smart power distribution and energy management using Compact NSX circuit breakers.
