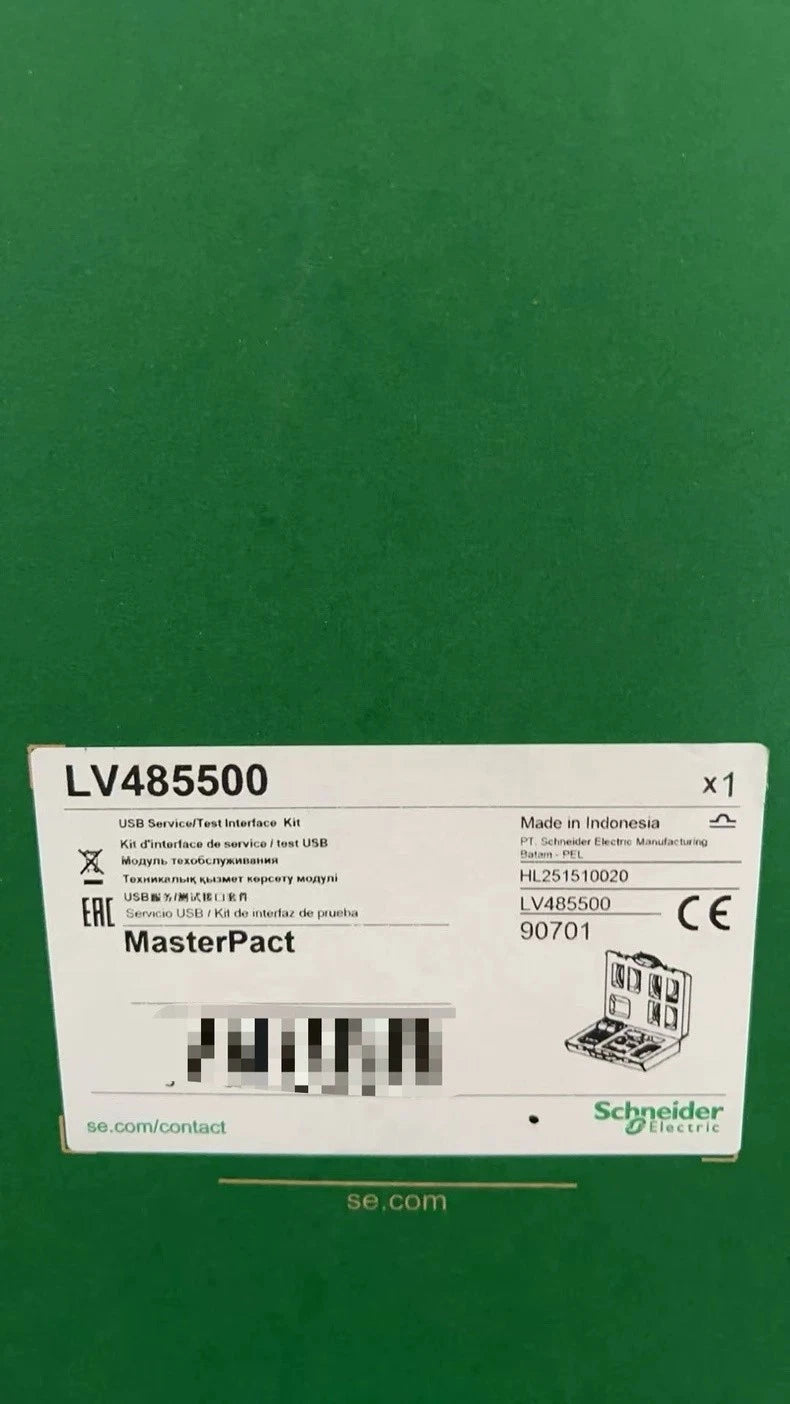

LV485500 | Schneider Electric Pact Series Circuit Breaker Service Interface Testing Kit
- Regular price
- $6,999.00
- Sale price
- $6,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LV485500
Description

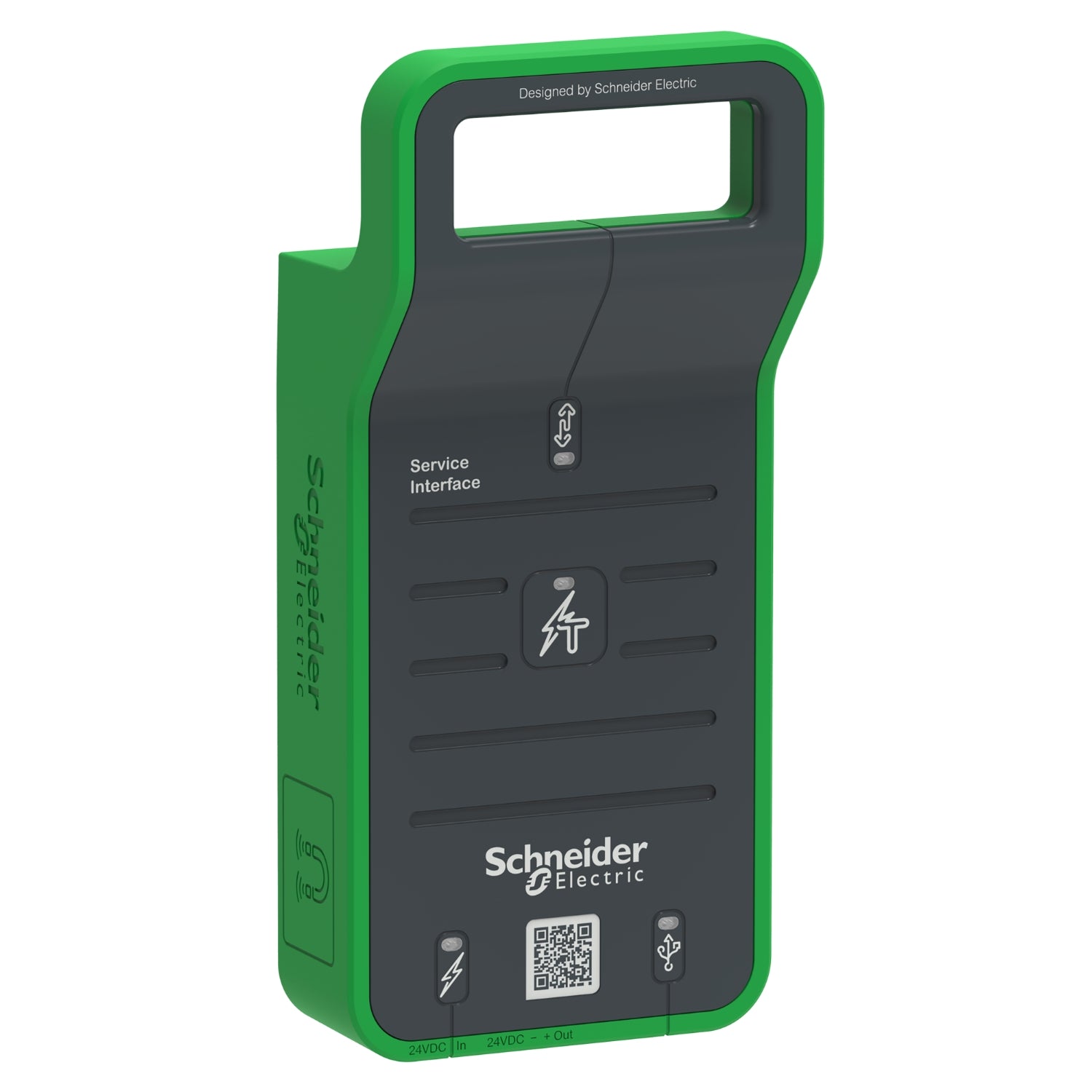

The Schneider Electric LV485500 is a service interface kit designed for testing and maintenance of Pact series circuit breakers. This kit enables accurate trip time measurement and functional verification of breaker protection systems using a dedicated power supply and test cables. Engineered for professional maintenance environments, the LV485500 supports reliable diagnostics across multiple Schneider Electric breaker families.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LV485500 |
| Subcategory | Circuit Breaker Accessory |
| Product Type | Service Interface / Testing Kit |
| Accessory Classification | Maintenance Accessory |
| Compatible Product Ranges | MasterPact NT, MasterPact NW, EasyPact MVS, ComPact NS |
| Rated Operating Voltage | 115/230 VAC ±10%, 47–63 Hz |
| Trip Time Measurement Range | 0 to 7500 s (±0.1%) |
| Impulse Withstand Voltage | 12 kV |
| Degree of Protection | IP20 |
| Overvoltage Category | II |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% at 55°C |
| Certifications | CE, UL |
| Standards Compliance | IEC 61010-1, IEC 61010-2-030, UL 61010-1, CSA C22.2 No. 61010-1 |
| Dimensions (H × W × D) | 106 mm × 451 mm × 358 mm |
| Weight | 10 lb |
Information About LV485500

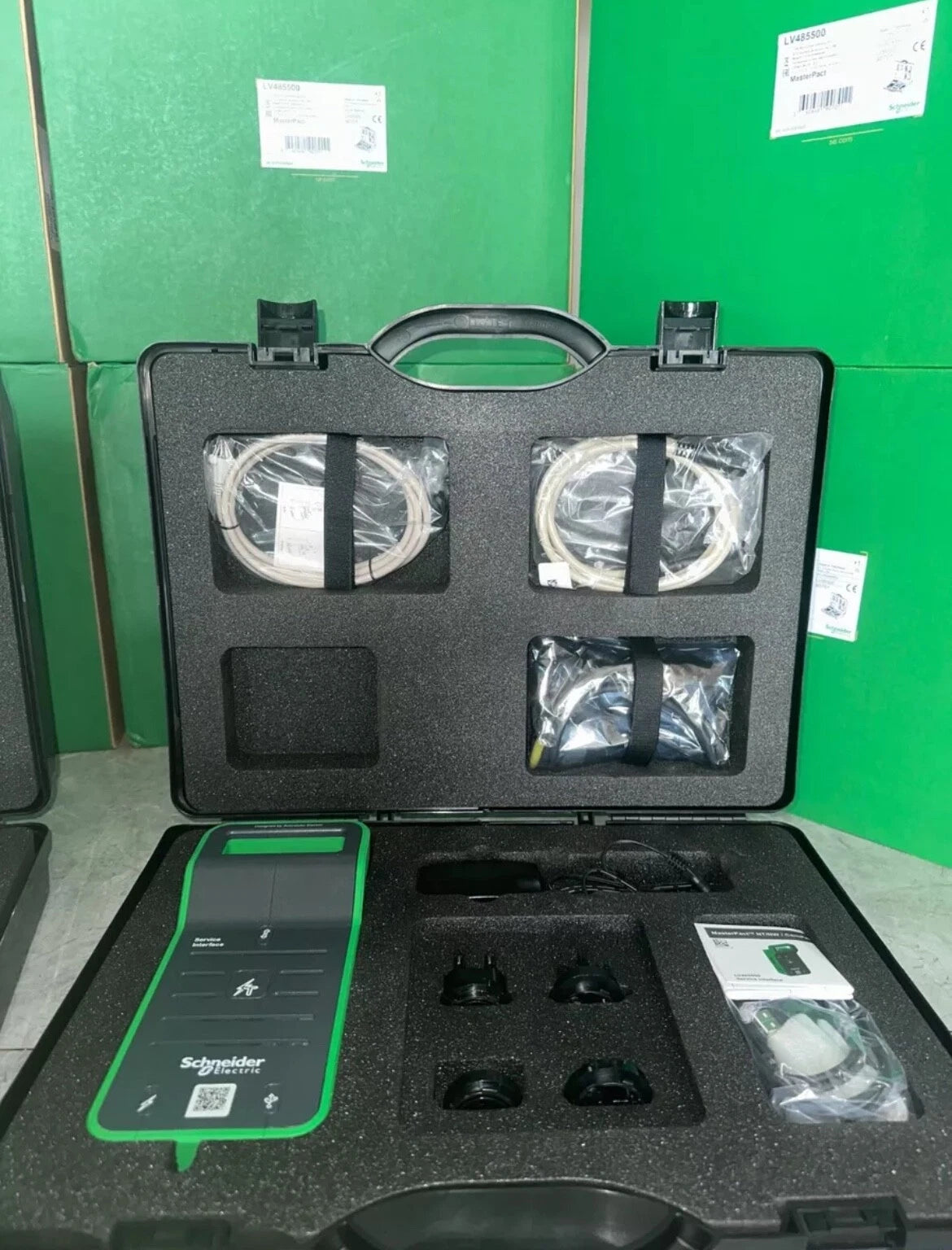

The LV485500 is a Schneider Electric maintenance accessory developed for use with MasterPact NT, MasterPact NW, EasyPact MVS, and ComPact NS series circuit breakers. It is designed as a dedicated testing kit that interfaces directly with breaker trip units to evaluate protection performance and trip timing accuracy. The kit includes a power supply, USB connection, and test cables, allowing controlled testing under standardized conditions. Built to international safety and EMC standards, it is intended for service technicians performing inspection, commissioning, and preventative maintenance tasks.
Key Features:
- Service Interface Kit: Designed specifically for testing and maintaining Pact series circuit breakers
- Wide Breaker Compatibility: Supports MasterPact NT, MasterPact NW, EasyPact MVS, and ComPact NS ranges
- Accurate Trip Time Measurement: Measures trip times from 0 to 7500 seconds with high precision
- Integrated Test Equipment: Includes power supply, USB cable, and multiple test cables
- Dual Voltage Operation: Operates on 115/230 VAC for flexible use in global environments
- Industrial Safety Compliance: Certified to IEC, UL, CSA, and CE standards
- Compact Bench-Top Design: Suitable for workshop and field maintenance applications
The LV485500 delivers the reliability and precision required for professional circuit breaker testing and maintenance operations.
