LVS-9580 | Omron Portable Barcode Verification System
- Regular price
- $7,199.00
- Sale price
- $7,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LVS-9580
Description

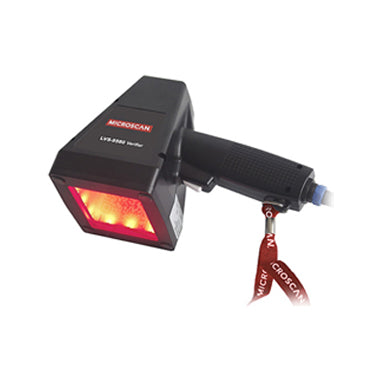

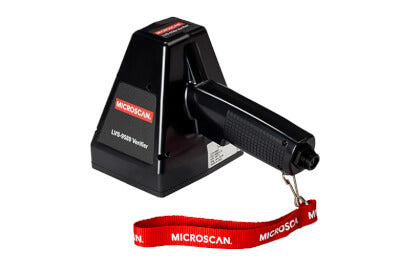

The Omron LVS-9580 is a high-performance handheld barcode verification system designed for off-line validation of 1D and 2D barcodes. Equipped with a 5.0 megapixel camera, it ensures accurate verification of barcodes up to 76.19 mm wide and 57.15 mm tall.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Barcode & Vision Systems |
| Part Number | LVS-9580 |
| Subcategory | Portable Barcode Verification System |
| Mounting | Hand Held |
| Sensor | 5MP CMOS |
| Type | Off-line barcode verifier |
| Code Type | 2D and 1D Codes |
| 2D Verification x-dim | 5.9 mil |
| Field Of View | 76mm x 57mm |
| Weight | 0.64 kgs |
Information About LVS-9580
The Omron LVS-9580 is a high-performance handheld barcode verification system designed for off-line validation of 1D and 2D barcodes. Equipped with a 5.0 megapixel camera, it ensures accurate verification of barcodes up to 76.19 mm wide and 57.15 mm tall. The LVS-9580 supports a wide range of symbologies, including linear, stacked, and matrix codes, and is compliant with ISO/IEC, GS1, UDI, and MIL-STD-130N standards. Its USB-powered operation and compatibility with various surfaces make it ideal for diverse industrial applications.
Key Features:
- Product Type: Portable Barcode Verification System
- Model: LVS-9580
- Camera Resolution: 5.0 megapixel
- Supported Codes: 1D (e.g., Code 128, UPC), 2D (e.g., Data Matrix, QR Code), Stacked (e.g., PDF417)
- Verification Standards: ISO/IEC 15415, 15416, 15418; ISO/IEC TR 29158; MIL-STD-130N; GS1; UDI
- Field of View: 76.19 mm (horizontal) × 57.15 mm (vertical)
- Power Supply: USB 2.0 powered (5 VDC @ 400 mA)
- Dimensions: 215.9 mm (H) × 139.7 mm (D) × 120.6 mm (W)
- Weight: Approximately 0.64 kg
- Operating Temperature: 4°C to 46°C
- Compliance: 21 CFR Part 11 ready; includes NIST-Traceable Calibrated Conformance Standard Test Card
The LVS-9580's advanced features, including detailed reporting and analytical tools, make it a reliable solution for ensuring barcode quality and compliance in various industrial settings.
