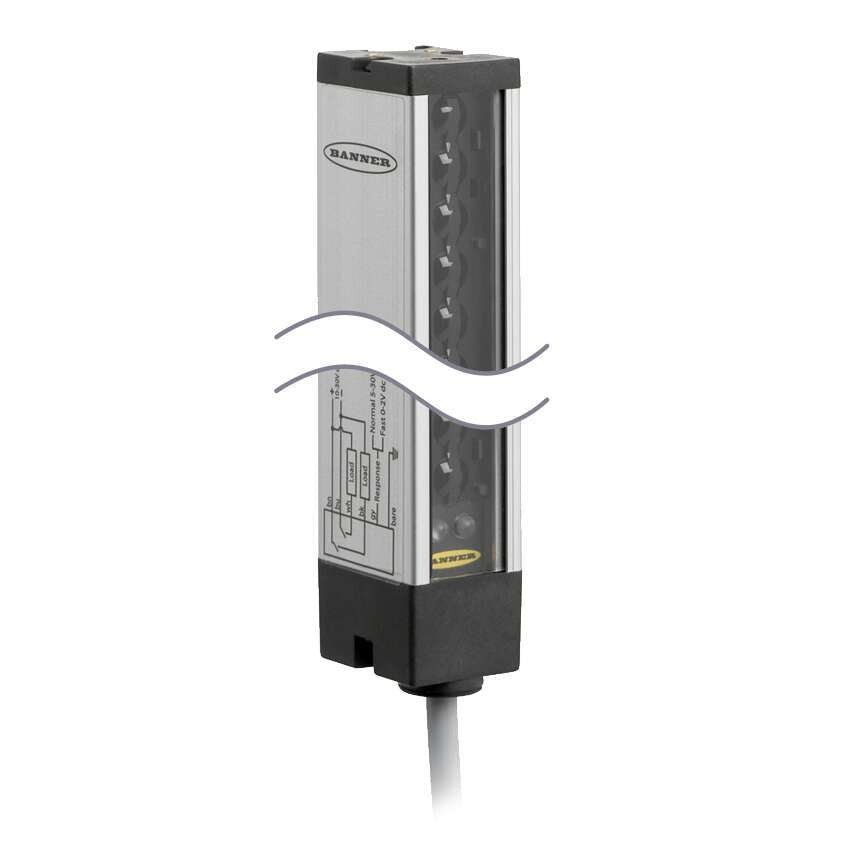

LX18EQ | Banner Engineering LX Series 447 mm Standard Range Array Emitter
- Regular price
- $619.00
- Sale price
- $619.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LX18EQ
Description
The Banner Engineering LX18EQ is a standard-range array emitter from the LX Series, designed for part-sensing light screen applications with a maximum sensing range of 2 meters. Featuring a 447 mm array length and 9.5 mm minimum object detection capability, it supports precise detection of small parts in industrial automation systems. Powered by 10–30 VDC, it integrates easily into control environments using an M12 quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | LX18EQ |
| Subcategory | Light Screen Emitters |
| Series | LX Series |
| Device Type | Array Emitter |
| Sensing Mode | Emitter (Standard Range) |
| Maximum Sensing Range | 2000 mm (2 m) |
| Array Length | 447 mm |
| Minimum Object Detection | 9.5 mm |
| Supply Voltage | 10–30 V DC |
| Output Response Time | 4.8 ms ON / 10 ms OFF |
| Connection Type | Pigtail Quick Disconnect |
| Quick Disconnect Type | M12 (Euro), 5-Pin |
| Cable Length | 0.15 m (150 mm) |
| Housing Style | Array |
| Primary Housing Material | Aluminum |
| Lens Material | Acrylic |
| IP Rating | IP65 |
| Operating Temperature Range | -20°C to 70°C |
| Max Relative Humidity | 90% at 50°C |
| Dimensions (L × W × D) | 447 mm × 25.4 mm × 31.8 mm |
| Country of Origin | Mexico |
| Compliance | cURus, CE |
| Weight | 0.5 kg |
Information About LX18EQ
The LX18EQ is a standard-range emitter within Banner Engineering’s LX Series light screen family, engineered for cross-hatched array part detection in manufacturing and material handling processes. Constructed with an aluminum housing, acrylic lens, and zinc die-cast end caps, it offers durable performance in industrial environments rated IP65. The emitter projects a structured sensing field across its 447 mm array length and is intended to operate with a compatible LX receiver to form a complete detection system. A 150 mm pigtail terminated with a 5-pin M12 Euro-style connector ensures secure and simplified wiring within control panels.
Key Features:
- 447 mm Array Length: Provides extended part-sensing coverage across wide conveyor or feed areas.
- Standard Range up to 2 m: Supports reliable detection over moderate installation distances.
- 9.5 mm Minimum Object Detection: Enables sensing of small components in assembly and packaging lines.
- Cross-Hatched Light Screen Pattern: Improves detection reliability for irregularly shaped parts.
- 10–30 VDC Supply Voltage: Compatible with standard industrial DC systems.
- M12 (Euro) Quick Disconnect: Ensures efficient and secure electrical connection.
- IP65 Aluminum Housing: Protects against dust and water spray in industrial settings.
- LED Status Indicators: Green power LED and red failure LED for visual diagnostics.
The LX18EQ delivers the reliability and precision required for industrial part-sensing and automated inspection applications.
