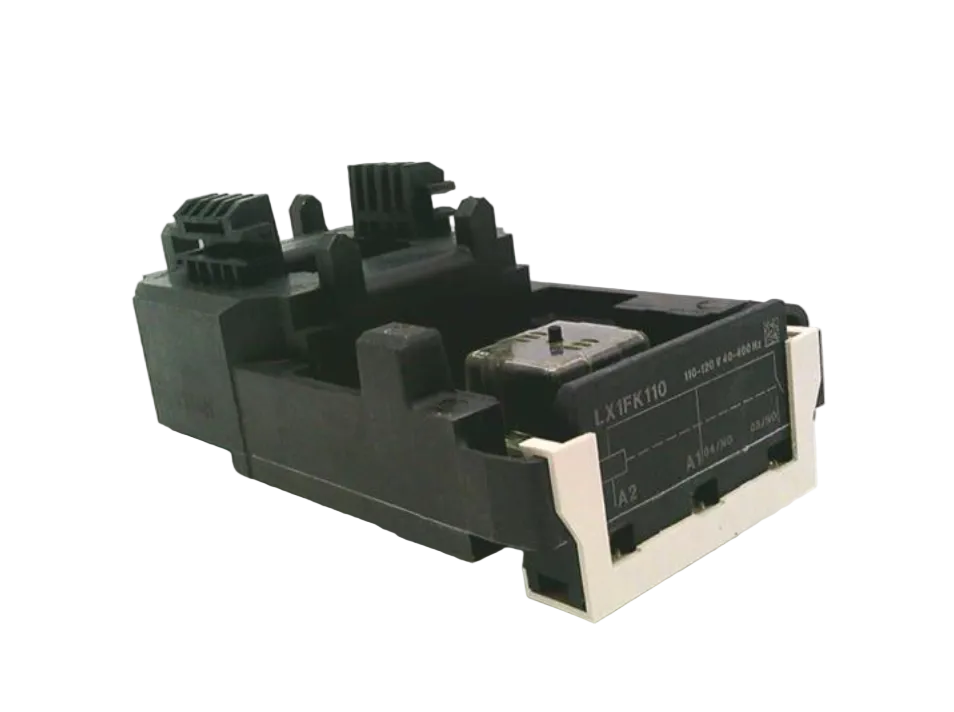

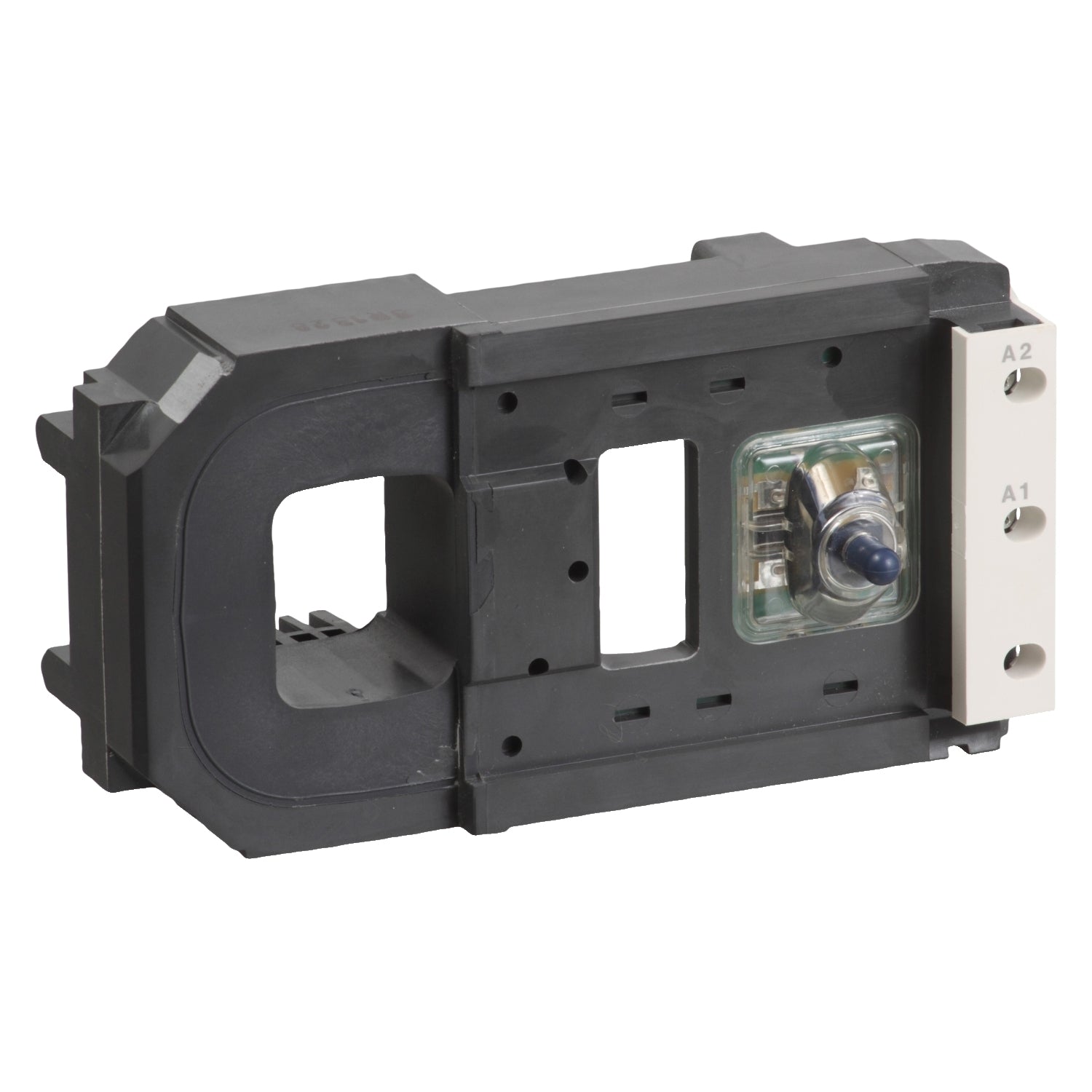

LX1FK110 | Schneider Electric TeSys F 110–120VAC Contactor Coil for LC1F500
- Regular price
- $627.00
- Sale price
- $627.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LX1FK110
Description
The Schneider Electric LX1FK110 is an AC contactor coil designed for reliable operation of TeSys F series power contactors. It provides stable electromagnetic actuation for LC1F500 contactors across a wide frequency range while maintaining low sealed power consumption. This coil is used in industrial motor control and power switching applications requiring high operating rates.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Motor Control |
| Part Number | LX1FK110 |
| Subcategory | Contactor Coils |
| Series | TeSys F (LX1) |
| Compatible Contactor | LC1F500 |
| Control Circuit Type | AC |
| Control Voltage | 110–120 V AC |
| Frequency Rating | 40–400 Hz |
| Coil Technology | Without built-in suppressor module |
| Inrush Power | 1100 VA |
| Holding Power Consumption | 18 VA |
| Maximum Operating Rate | 2400 cycles/hour |
| Operating Temperature | −5 °C to +55 °C |
| Mechanical Durability | 10 million cycles |
| Weight | 2.54 lb (1.15 kg) |
Information About LX1FK110
The LX1FK110 is part of Schneider Electric’s TeSys F accessory range and is specifically engineered for compatibility with TeSys F LC1F500 3-pole and 4-pole contactors. It features an AC control circuit designed to operate over a broad frequency range, supporting both standard and variable-frequency power environments. The coil is built without an integrated suppressor module, allowing system designers to select external suppression as required. Its construction supports high mechanical endurance and reliable performance in demanding industrial environments up to 55 °C.
Key Features:
- TeSys F Series Coil: Designed specifically for TeSys F LC1F500 contactors.
- Wide Frequency Operation: Supports AC control circuits from 40 to 400 Hz.
- 110–120 VAC Control Voltage: Suitable for standard industrial control systems.
- Low Sealed Power Consumption: Reduces energy usage during continuous operation.
- High Operating Rate Capability: Supports contactor operation up to 2400 cycles per hour.
- Wide Temperature Tolerance: Operates reliably in ambient temperatures up to 55 °C.
- No Built-In Suppressor: Allows flexible integration of external surge suppression devices.
The LX1FK110 delivers the reliability and precision required for consistent actuation of high-power contactors in industrial motor control systems.
