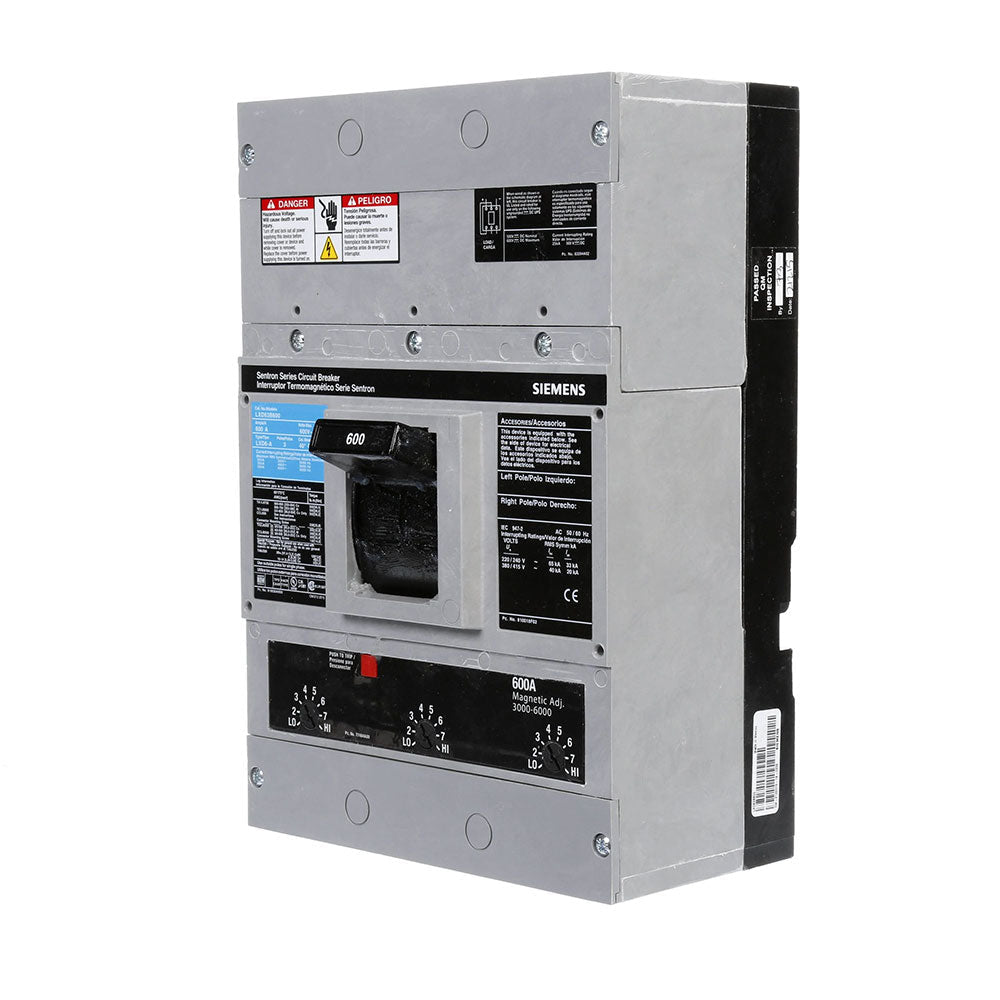

LXD63B600H | Siemens 600A 3-Pole 600VAC Sentron Molded Case Circuit Breaker
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LXD63B600H
Description
The Siemens LXD63B600H is a 3-pole molded case circuit breaker designed for dependable protection in low-voltage power distribution systems. Featuring a thermal-magnetic trip unit, it delivers consistent performance with a 600A current rating and up to 600VAC operating voltage. This breaker provides high interrupting capacity, ensuring safe and efficient circuit protection for industrial and commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Protection |
| Part Number | LXD63B600H |
| Subcategory | Molded Case Circuit Breaker |
| Series | Sentron |
| Type | LXD6 Low Voltage |
| Frame | LD Frame |
| Amperage Rating | 600 A |
| Voltage Rating | 600 VAC |
| Interrupt Rating | 25kA@600V, 35kA@480V |
| Poles | 3 |
| Phase | 3 |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time, Short-Time, Instantaneous |
| Connection Type | Bolt-On |
| Mounting Type | Bolted-On |
| Wire Size | 3/0 AWG – 500 kcmil |
| Temperature Rating | 40 °C |
| Compliance Standards | UL 489, IEC 60947-2, CSA |
| Dimensions (W x H x D) | 7.5 x 11 x 4 in |
| Weight | 18 lb |
Information About LXD63B600H
The LXD63B600H is part of Siemens’ Sentron Series of molded case circuit breakers, engineered for precision and durability in demanding electrical environments. Built with a robust LD frame, it meets UL 489 and IEC 60947-2 standards for global compliance. The breaker supports bolt-on connections and is rated for 100% continuous operation at 40°C, ideal for use in panelboards, switchboards, and industrial control systems. Its thermal-magnetic trip mechanism provides long-time, short-time, and instantaneous protection functions, ensuring safe overload and short-circuit protection across 3-phase systems.
Key Features:
- High Current Rating: Supports 600A continuous current at 600VAC for heavy-duty power circuits.
- Thermal-Magnetic Trip Unit: Ensures precise overload and short-circuit protection under varying load conditions.
- Standard LD Frame: Offers proven performance and mechanical strength for industrial installations.
- Interrupting Capacity: Rated at 25kAIC @ 600V and 35kAIC @ 480V for secure fault current interruption.
- 100% Rated Breaker: Maintains full load capacity without derating at 40°C ambient temperature.
- Bolt-On Mounting: Simplifies installation with reliable, vibration-resistant mounting configuration.
- Compliance: Meets UL 489 and IEC 60947-2 standards for global electrical safety requirements.
- Compact Design: Optimized dimensions of 7.5 x 11 x 4 inches for space-efficient installation.
The LXD63B600H delivers the reliability and precision required for demanding power distribution and protection systems in industrial and commercial environments.
