LXM32MD18N4 | Schneider Electric | Motion servo drive
LXM32MD18N4 | Schneider Electric | Motion servo drive
Part #: LXM32MD18N4 Manufactured by: Schneider Electric

LXM32MD18N4 | Schneider Electric | Motion servo drive

Regular price
$1,042.00
Sale price
$1,042.00
Regular price
Never Used Surplus
2 in Stock
Product Overview
The LXM32MD18N4 is a motion servo drive from the Lexium 32 series designed for industrial applications. With a supply volt...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: LXM32MD18N4
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
LXM32MD18N4 | Schneider Electric | Motion servo drive
    LXM32MD18N4 | Schneider Electric | Motion servo drive
LXM32MD18N4 | Schneider Electric | Motion servo drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

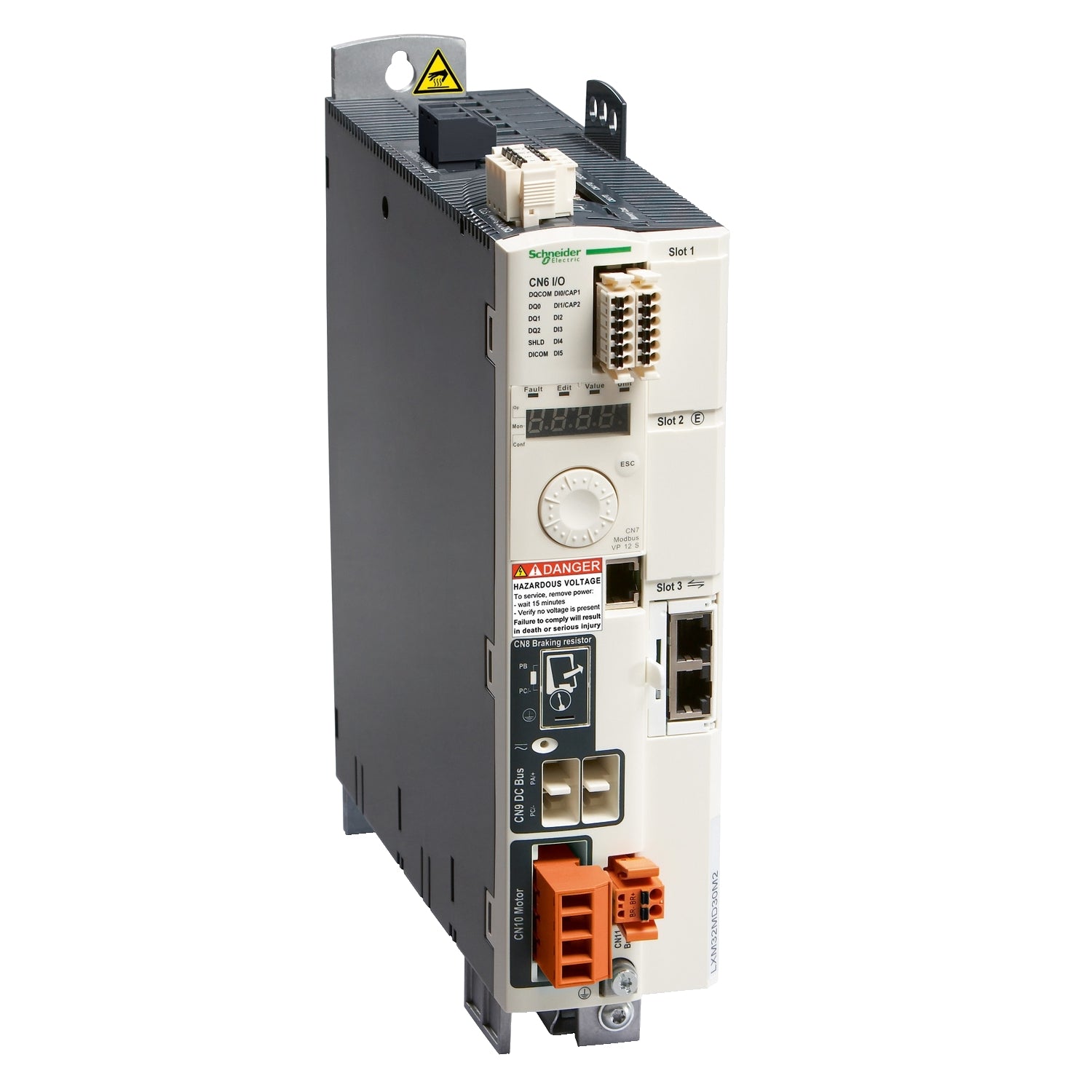

Product Description P/N: LXM32MD18N4

Description / Specifications

Description

The LXM32MD18N4 is a motion servo drive from the Lexium 32 series, designed for industrial applications. It operates with a rated supply voltage ranging from 208Vac to 480Vac and is compatible with 3-phase synchronous motors BMH or BSH.

Featuring a continuous output current of 6A at 8kHz, this servo drive delivers high performance while maintaining compact dimensions, optimizing space utilization in industrial setups.

Engineered to meet international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3, as well as being UL and CSA certified and CE marked, the LXM32MD18N4 ensures compliance with regulatory requirements and standards. Additionally, it adheres to environmental protection directives (RoHS).





Technical Specifications



Part #

LXM32MD18N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Servo Products

Subcategory

Servo Drive/Servo Control Range of Product

Product or Component Type

Motion Servo Drive

Device Short Name

LXM32M

Format of the Drive

Book

Network Number of Phases

Three Phase

[Us] Rated Supply Voltage

200...240 V - 15...10 %

Supply Frequency

50/60 Hz - 5...5 %

Network Frequency

47.5...63 Hz

EMC Filter

Integrated

Continuous Output Current

6 A at 8 kHz

Output Current 3s Peak

18 A at 208 V for 5 s switching frequency

Overvoltage Category

III

Maximum Leakage Current

30 mA

Output Voltage

<= Power Supply Voltage

Electrical Isolation

Between Power and Control

Response Time

<= 5 ms Compliment of STO_A, Compliment of STO_B

Discrete Output Number

3

Discrete Output Type

Logic Output(s) (DO)24 V DC

Discrete Output Voltage

<= 30 V DC

Discrete Output Logic

Positive or Negative (DO) Conforming to EN/IEC 61131-2

Contact Bounce Time

<= 1 ms for Compliment of STO_A, Compliment of STO_B

Braking Current

1.7 A

Response Time on Output

250 µs (DO) for Discrete Output(s)

Connector Type

RJ45 (Labelled CN7) for Modbus

Commissioning Port

2-Wire RS485 Multidrop for Modbus

Transmission Rate

9600, 19200, 38400 bps for Bus Length of 40 m for Modbus

Number of Addresses

1…247 for Modbus

Status LED

1 LED (Red) Servo Drive Voltage

Signalling Function

Display of Faults 7 Segments

Marking

CE

Operating Position

Vertical +/- 10 Degree

Vibration Resistance

1 gn (f= 13…150 Hz) Conforming to EN/IEC 60068-2-6

Shock Resistance

15 gn for 11 ms Conforming to EN/IEC 60028-2-27

Pollution Degree

2 Conforming to EN/IEC 61800-5-1

Environmental Characteristic

Classes 3C1 Conforming to IEC 60721-3-3

Relative Humidity

Class 3K3 (5 to 85 %) without Condensation Conforming to IEC 60721-3-3

Ambient Air Temperature for Operation

0…50 °C Conforming to UL

Ambient Air Temperature for Storage

-25…70 °C

Type of Cooling

Integrated Fan



Information About LXM32MD18N4



The LXM32MD18N4 is a motion servo drive belonging to the Lexium 32 series. It operates on a rated supply voltage ranging from 208Vac to 480Vac. Designed to power 3-phase synchronous motors BMH or BSH, this servo drive delivers a continuous output current of 6A at 8kHz.

With its compact size, the servo drive, along with its associated servo motor, maximizes power output while occupying minimal space. Tailored for industrial machines, it offers high performance and simplicity of use in motion control applications.

Compliant with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3, the LXM32MD18N4 carries certifications from UL, CSA, and CE, ensuring its adherence to stringent quality and safety regulations. Additionally, it meets the environmental protection requirements outlined by the Restriction of Hazardous Substances (RoHS) directives.

The LXM32MD18N4 is engineered to deliver reliable and efficient operation in industrial environments. Its robust design and advanced features make it suitable for a wide range of applications, including automation, robotics, and manufacturing processes.

Equipped with comprehensive protection mechanisms, the servo drive safeguards against voltage fluctuations, overcurrent, and other electrical anomalies, ensuring stable and consistent performance under varying operating conditions.

The integration of advanced control algorithms and feedback mechanisms enhances precision and accuracy in motion control tasks, enabling smooth and precise operation of machinery and equipment.

Thanks to its versatile design and compatibility with a variety of industrial systems, the LXM32MD18N4 offers flexibility and scalability in deployment, making it a preferred choice for OEMs and system integrators seeking reliable motion control solutions.
