LXM62PD84A11000 | Schneider Electric LXM 62P Power Supply Drive
- Regular price
- $2,219.00
- Sale price
- $2,219.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LXM62PD84A11000
Description

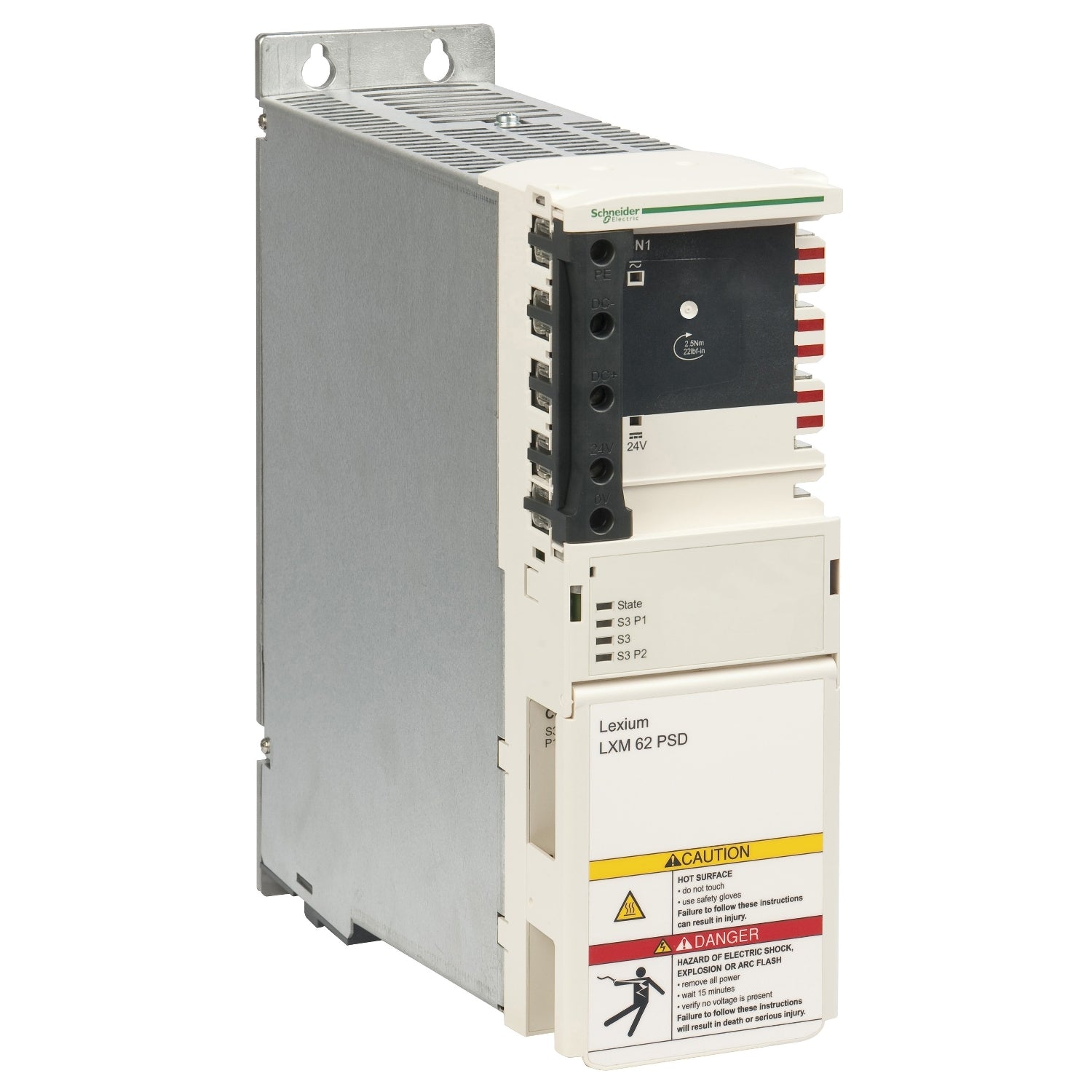

The Schneider Electric LXM62PD84A11000 is a Lexium 62 multi-axis servo drive power supply module designed to provide DC bus power to Lexium 62 servo drives. It delivers high-performance motion control capability for multi-axis automation systems.
Technical Specifications
| Brand | Schneider Electric |
| Amperage | 21 Amp |
| Applications | PACDRIVE 3 |
| Enclosure | IP20 WITH PLUGGED-IN CONNECTORS CONFORMING TO EN/IEC 60721-3-3 |
| Line Rated Current | 21 A |
| Operating Temperature | 40-55 degrees C With Current Derating Of 2 % Per degrees C) || 5-40 degrees C |
| Standard | EN/IEC 61800-3,EN/IEC 61800-5-1,UL 508C |
| Storage Temperature | -25-55 degrees C |
| Type | Power supply |
| Wattage | 22.1 kW 400 Volt THREE Phase AC-26.6 kW 480 Volt THREE Phase AC44.2 kW 400 Volt THREE Phase AC-53.2 kW 480 Volt THREE Phase AC |
| Depth | 270 mm |
| Height | 310 mm |
| Length | 10.63 Inch |
| Width | 89.5 mm |
Information About LXM62PD84A11000
The LXM62PD84A11000 is part of the Schneider Electric Lexium 62 servo drive family, developed to offer centralized multi-axis motion control with modular scalability. This power supply module (DC bus supply) converts 400–480V AC three-phase input into regulated DC bus voltage to supply connected Lexium 62 drive modules. It is rated for 84 A continuous output current, providing sufficient power for multiple servo axes. Integrated features include inrush current limiting, DC bus capacitors, and internal pre-charging circuits to stabilize the system. Communication and synchronization with controllers are handled via the Sercos III real-time Ethernet fieldbus. With its compact design and shared DC bus architecture, the LXM62PD84A11000 reduces wiring complexity, panel space, and energy consumption while ensuring high system efficiency.
Key Features:
- Design: Lexium 62 power supply module for multi-axis servo systems.
- Input Voltage: Operates on 400–480V AC three-phase mains.
- Output: Supplies regulated DC bus power with 84 A continuous current.
- Integration: Feeds multiple Lexium 62 servo drives from a shared DC bus.
- Communication: Supports Sercos III for synchronization and diagnostics.
- Protection: Built-in inrush current limiting and pre-charge circuitry.
- Efficiency: Centralized power architecture reduces wiring and energy losses.
- Application Range: Ideal for packaging, robotics, and high-performance machine automation.
The LXM62PD84A11000 delivers the power capacity, efficiency, and reliability required for advanced multi-axis motion control systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
