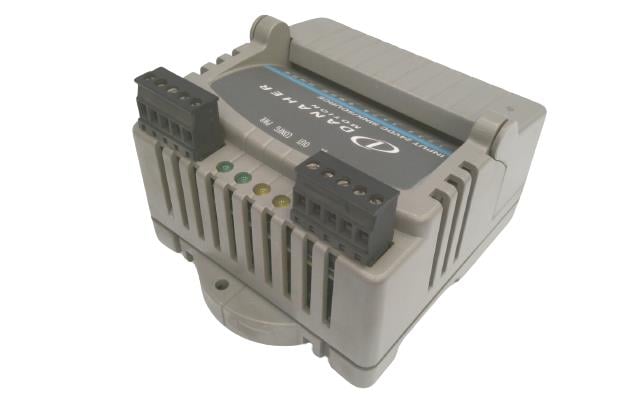

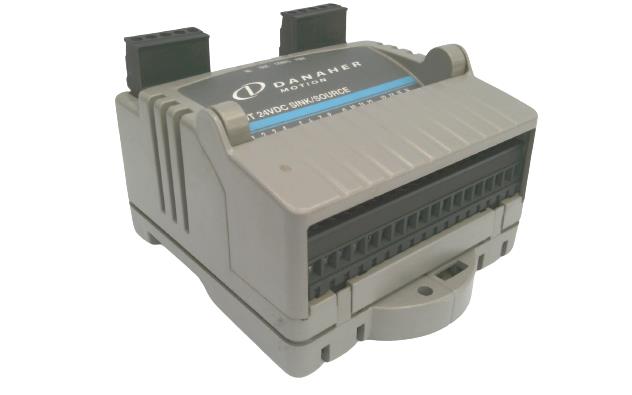

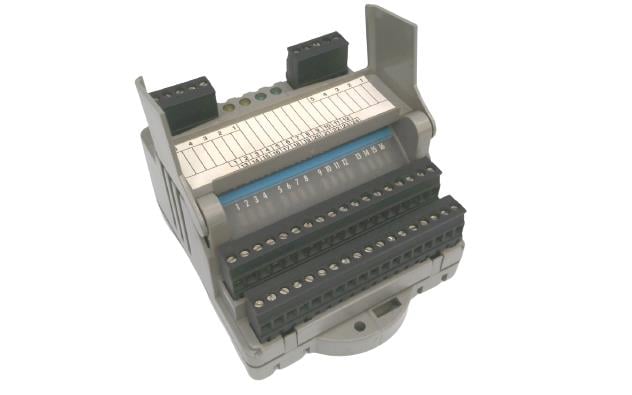

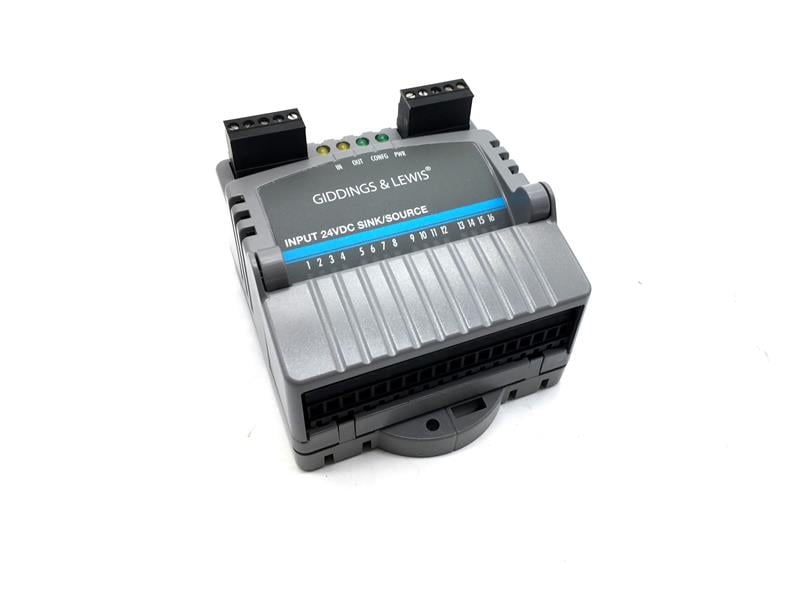

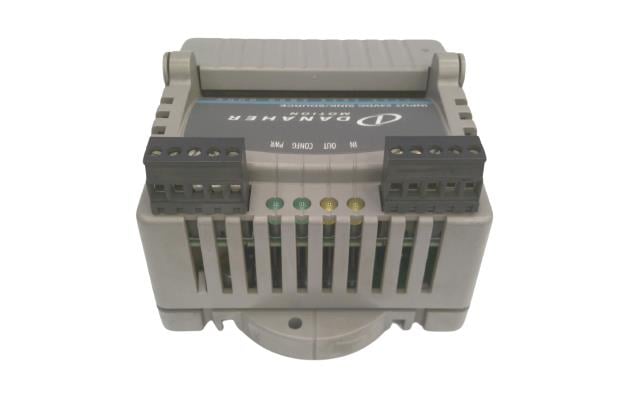

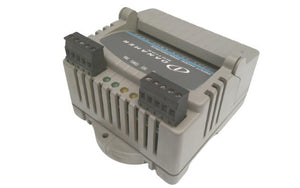

M.1300.7372 | Giddings & Lewis 24VDC Isolated Input Module, 16-Point (Sink/Source)
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: M.1300.7372
Description
The M.1300.7372 is a 16-point isolated input module by Giddings & Lewis, designed for use in PLC systems. It supports both sink and source 24 VDC signals, providing reliable digital input acquisition for industrial automation tasks.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Giddings & Lewis |
| Category |
PLCs / Machine Control
|
| Part Number | M.1300.7372 |
| Subcategory | PLC Module / Rack |
| Product Type | Isolated Digital Input Module |
| Number of Inputs | 16 |
| Input Voltage Range | 14–30 VDC |
| Input Type | Sink or Source |
| Nominal Input Voltage | 24 VDC |
| Max Input Current | 7.5 mA per point at 30 VDC |
| Guaranteed ON Voltage | ≥14 VDC |
| Guaranteed OFF Voltage | ≤5 VDC |
| Input Delay Time | 1 ms max (on/off) |
| Logic Side Power | 1 A at 24 VDC nominal |
| Max Ambient Temperature | 55 °C |
| Mounting Type | PLC Rack Mount |
| Weight | 0.99 lbs (approx. 0.45 kg) |
Information About M.1300.7372
The M.1300.7372 from Giddings & Lewis is a discontinued 24 VDC input module used in machine control systems for processing up to 16 discrete digital signals. It operates within an input range of 14–30 VDC, with guaranteed “on” at 14 VDC and “off” at 5 VDC. Input response time is 1 millisecond, suitable for high-speed operations. This module supports sink/source configurations, draws a maximum of 7.5 mA per point at 30 VDC, and is powered on the logic side with up to 1 A at 24 VDC. It is designed for use in environments up to 55 °C.
Key Features:
- 16-Point Input: Processes 16 discrete 24 VDC input signals.
- Sink/Source Support: Compatible with both input wiring types.
- Industrial Voltage Range: Operates from 14 to 30 VDC.
- Fast Switching: Input delay is limited to 1 ms on/off.
- Low Input Current: 7.5 mA max at 30 VDC for efficient operation.
- Logic Power Handling: Supports 1 A at 24 VDC on logic side.
- Reliable Thresholds: Guaranteed ON at 14 VDC, OFF at 5 VDC.
The M.1300.7372 delivers robust digital input handling for legacy Giddings & Lewis automation systems.
