M15100E | Lenze 10HP M1000 Series VFD NEMA 4X Stainless 575VAC
- Regular price
- $4,799.00
- Sale price
- $4,799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M15100E
Description

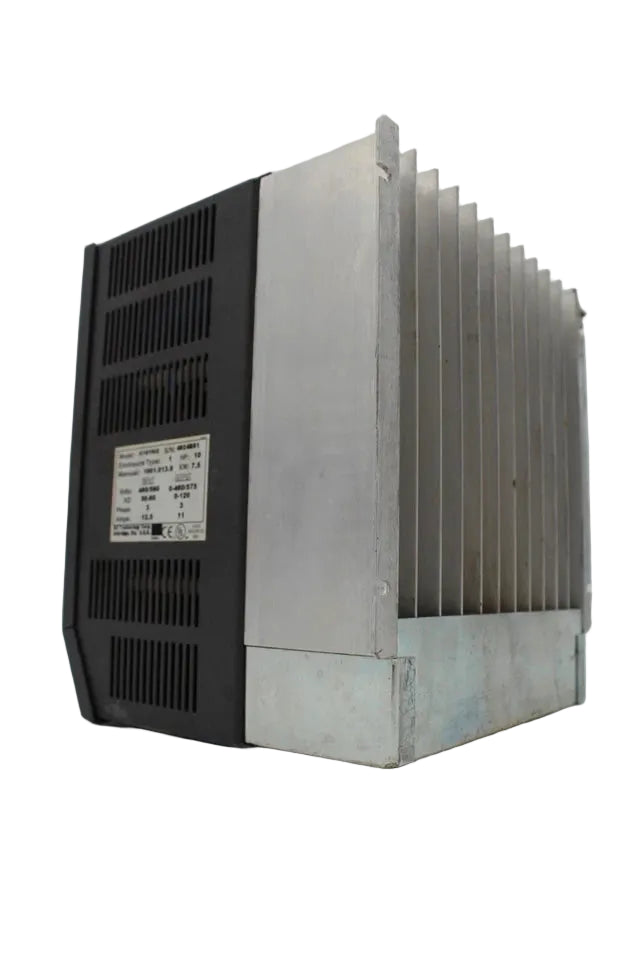

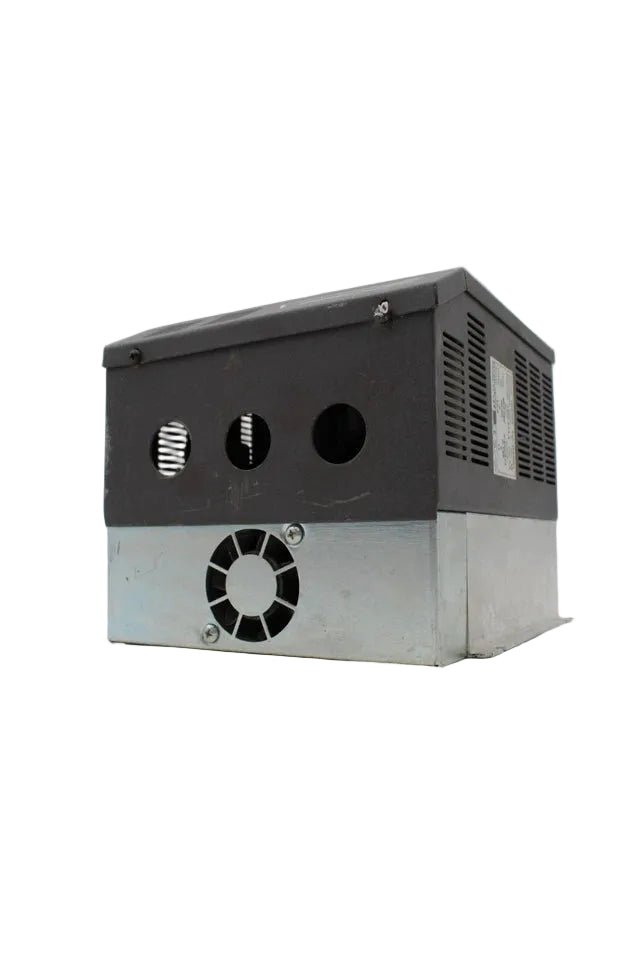

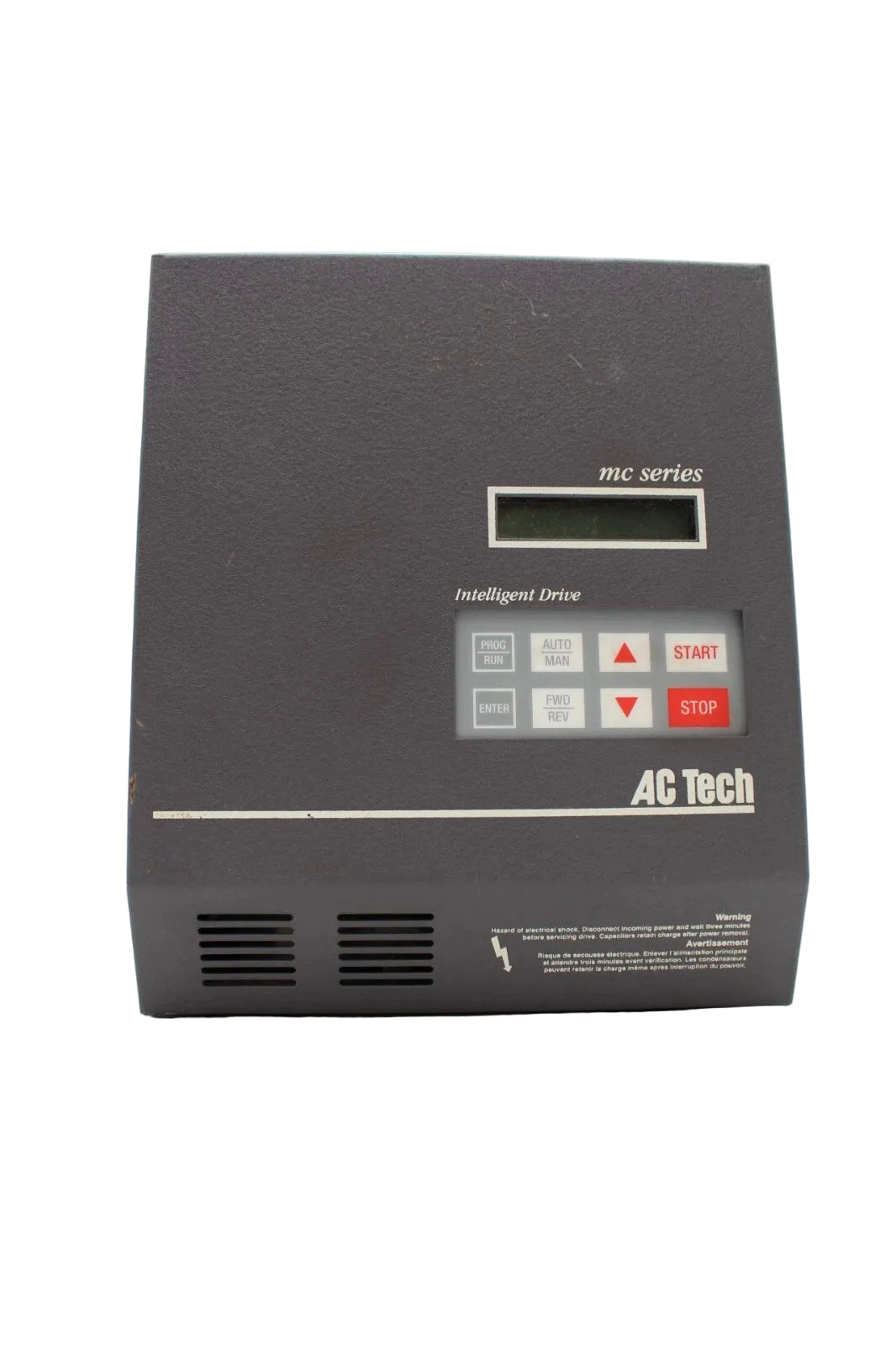

The Lenze M15100E is a three-phase variable speed inverter drive from the M1000 Series designed to control 10 HP (7.5 kW) motors in industrial applications. Operating on 480–590 VAC at 50/60 Hz, it delivers 11.0 A output current with precise speed regulation. The drive is housed in a NEMA 4X stainless steel enclosure for water-, dust-, and corrosion-resistant performance in indoor and outdoor environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Control |
| Part Number | M15100E |
| Subcategory | AC Drives |
| Series | M1000 Series |
| Drive Type | AC Inverter / Variable Frequency Drive |
| Horsepower | 10 HP |
| Power Rating | 7.5 kW |
| Input Voltage | 480–590 VAC (575 VAC Class) |
| Input Phase | Three-Phase |
| Output Phase | Three-Phase |
| Output Current | 11.0 A |
| Frequency | 50/60 Hz |
| Enclosure Type | NEMA 4X (Stainless Steel) |
| IP Rating | IP65 |
| Direction Control | Forward / Stop / Reverse |
| Environment | Indoor / Outdoor |
| Corrosion Resistance | Yes |
| Weight | Approx. 35 lbs |
Information About M15100E
The M15100E is an AC inverter drive engineered within Lenze’s M1000 Series for reliable motor speed control using variable frequency technology. It supports 575 VAC three-phase input systems and provides controlled three-phase output for industrial motor applications. The unit is constructed in a NEMA 4X (IP65) stainless steel enclosure, offering protection against moisture, dust, and corrosive conditions. Integrated forward/stop/reverse direction controls enable local operational control, making it suitable for installations in processing plants, water treatment facilities, and outdoor industrial sites.
Key Features:
- 10 HP / 7.5 kW Rating: Designed for medium-duty industrial motor control applications.
- 480–590 VAC Three-Phase Input: Compatible with 575 VAC class industrial power systems.
- 11.0 Amp Output Current: Provides stable and consistent motor performance.
- NEMA 4X Stainless Steel Enclosure: Water-, dust-tight, and corrosion-resistant housing.
- IP65 Protection Rating: Suitable for indoor and outdoor installations.
- Forward/Stop/Reverse Controls: Integrated direction control for local operation.
- 50/60 Hz Operation: Supports global industrial frequency standards.
- M1000 Series Platform: Built on Lenze’s proven inverter drive architecture.
The M15100E delivers the reliability and precision required for variable speed motor control in harsh and corrosion-prone industrial environments.
