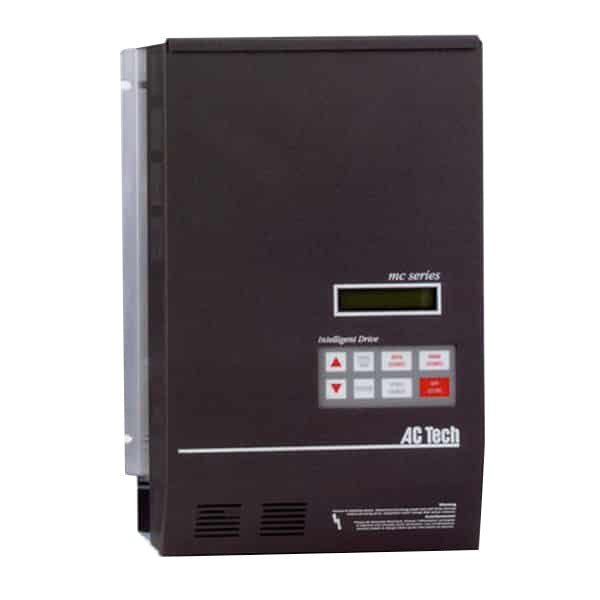

M15600D | Lenze MC1000 60HP 480–590V AC Inverter Drive NEMA 12
- Regular price
- $14,999.00
- Sale price
- $14,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M15600D
Description
The Lenze M15600D is an MC1000 Series variable speed AC inverter drive designed for three-phase industrial motor control. Rated at 45 kW (60 HP), it operates on 480–590 VAC at 50/60 Hz and provides adjustable speed regulation for demanding applications. The unit is housed in a NEMA 12 oil- and dust-tight enclosure for indoor industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze / AC Tech |
| Category | Drives |
| Part Number | M15600D |
| Subcategory | Motor Drive |
| Series | MC1000 |
| Rated Power | 45 kW (60 HP) |
| Input Voltage | 480–590 VAC |
| Input Phase | 3 Phase |
| Output Voltage | 490–600 VAC |
| Output Phase | 3 Phase |
| Rated Output Current | 62 A |
| Input Frequency | 50/60 Hz |
| Enclosure Type | NEMA 12 (Oil/Dust Tight) |
| Control Modes | V/Hz, Constant Torque, Variable Torque |
| Communication | Modbus RTU (RS-485) |
| Analog Inputs | 0–10 VDC, 4–20 mA |
| Analog Outputs | 0–10 VDC, 2–10 VDC, 4–20 mA |
| Digital Inputs | 6 (NPN) |
| Digital Outputs | 1 Relay, 2 NPN |
| Mounting | Enclosed Cabinet |
| Dimensions | 21 in H x 14 in W x 8 in D |
| Weight | 36.29 kgs |
Information About M15600D
The M15600D is part of the Lenze / AC Tech MC Series (MC1000) platform engineered for variable frequency motor control. It supports three-phase input and output with a rated output current of 62 A and provides V/Hz and torque control operating modes. The drive includes an integrated keypad for local configuration and Modbus RTU (RS-485) communication for system integration. Designed for enclosed indoor installations, the NEMA 12 housing protects internal components from dust and non-corrosive contaminants.
Key Features:
-
60 HP (45 kW) Rating: Suitable for medium- to high-power motor applications.
-
480–590 VAC Operation: Three-phase input and output configuration.
-
62 A Rated Output Current: Supports industrial motor loads.
-
NEMA 12 Enclosure: Oil- and dust-tight design for indoor industrial use.
-
Variable Speed Control: Supports V/Hz and torque control modes.
-
Integrated Keypad: Local parameter setup and operational control.
-
Modbus RTU Communication: RS-485 interface for automation system integration.
-
Dynamic Braking Capability: Supports controlled deceleration in motor applications.
-
Multiple I/O Options: Includes analog inputs, analog outputs, digital inputs, and relay/NPN outputs.
The M15600D delivers the reliability and precision required for industrial variable frequency drive applications.
