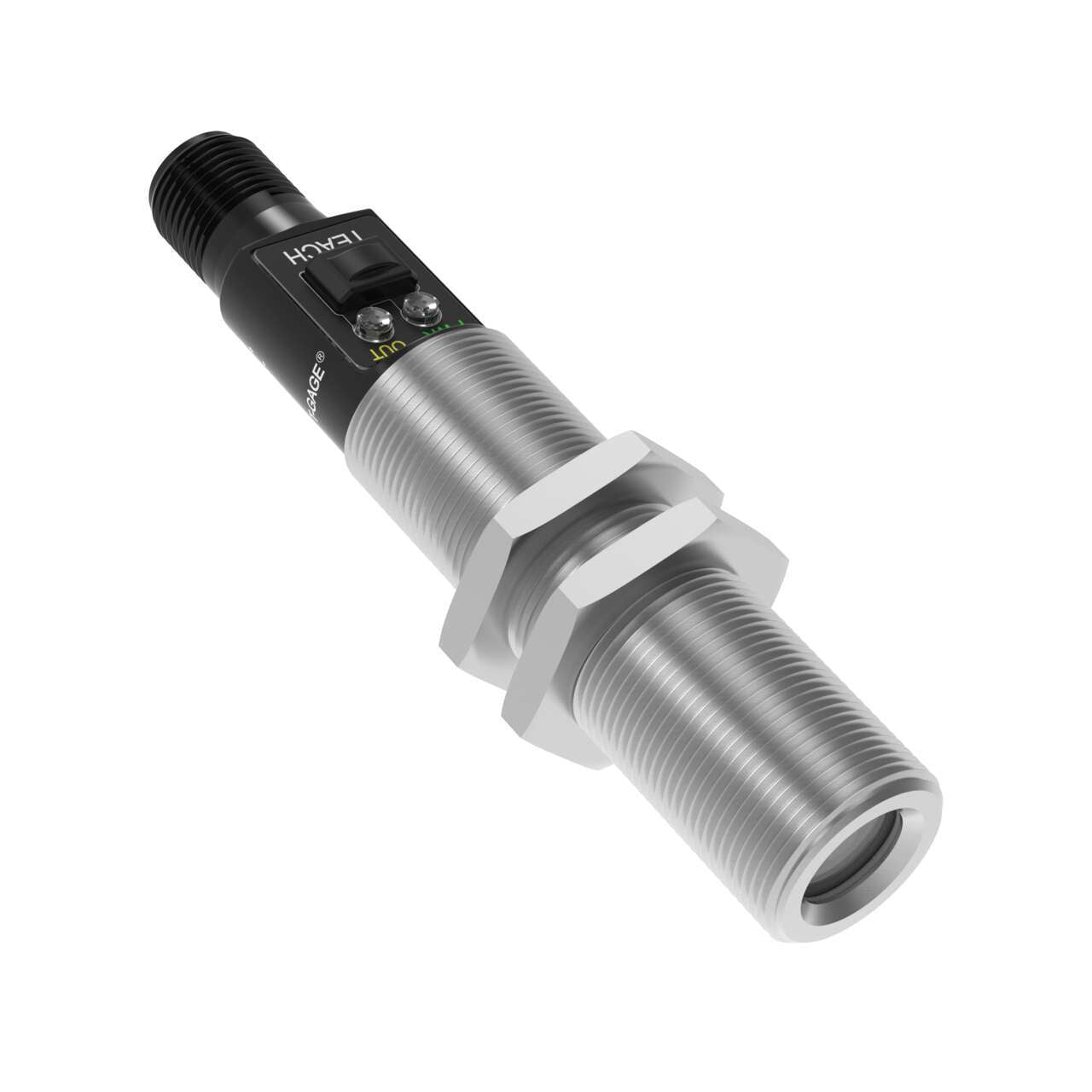

M18TUP14Q | Banner Engineering Infrared Temperature Sensor, 14:1 Optics, 0–10 V Output
- Regular price
- $1,129.00
- Sale price
- $1,129.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M18TUP14Q
Description
The Banner Engineering M18TUP14Q is an infrared temperature sensor designed for non-contact temperature measurement of moving or stationary objects. It uses a 14:1 germanium optical lens and provides an analog 0–10 V output with a PNP alarm function. The sensor operates without an emitter or external controller and is suitable for industrial monitoring applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | M18TUP14Q |
| Subcategory | Temperature Sensors |
| Series | M18T |
| Sensor Type | Infrared Temperature Sensor |
| Optical Ratio | 14:1 |
| Remote Sensing Temperature Range | 0°C to 300°C |
| Ambient Operating Temperature | -20°C to +70°C |
| Analog Output Configuration | 0–10 VDC |
| Alarm Output Type | PNP |
| Supply Voltage | 12–30 VDC |
| Response Time (Minimum) | 25 ms |
| Housing Material | Stainless Steel |
| Housing Style | Threaded Barrel |
| Thread Size | M18 |
| Connection Type | 5-pin M12 Integral Quick Disconnect |
| Environmental Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Adjustments | Push Button, Remote Teach |
| Chemical Resistance | Yes |
| Weight | 15 oz |
Information About M18TUP14Q
The M18TUP14Q is part of the Banner Engineering M18T Series temperature sensors, developed for proximity-based thermal detection using infrared energy emitted by objects. It supports remote temperature sensing from 0°C to 300°C while operating in ambient conditions from -20°C to +70°C. The sensor features a stainless steel M18 threaded barrel housing and an integral 5-pin M12 quick-disconnect for simplified installation. Configuration and threshold adjustment can be performed via push-button controls or remote teach functions using a PC interface.
Key Features:
-
Infrared temperature sensing: Detects emitted thermal energy without physical contact.
-
14:1 optical ratio: Supports accurate temperature measurement at defined distances.
-
Wide sensing range: Measures target temperatures from 0°C to 300°C.
-
Analog voltage output: Provides 0–10 VDC output for continuous temperature monitoring.
-
Integrated PNP alarm output: Supports discrete threshold-based signaling.
-
Stainless steel housing: Designed for durability in industrial environments.
-
Integral M12 quick-disconnect: Enables fast and secure electrical connection.
The M18TUP14Q delivers the reliability and precision required for non-contact industrial temperature sensing applications.
