Part #: M4-CVM03050-0 Manufactured by: JOHNSON CONTROLS
Regular price
$633.00
Sale price
$633.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
CV series controllers feature an integral damper actuator, a digital Differential Pressure Transmitter (DPT) sensor, and a...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: M4-CVM03050-0
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for JOHNSON CONTROLS
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: M4-CVM03050-0

Description / Specifications

Description

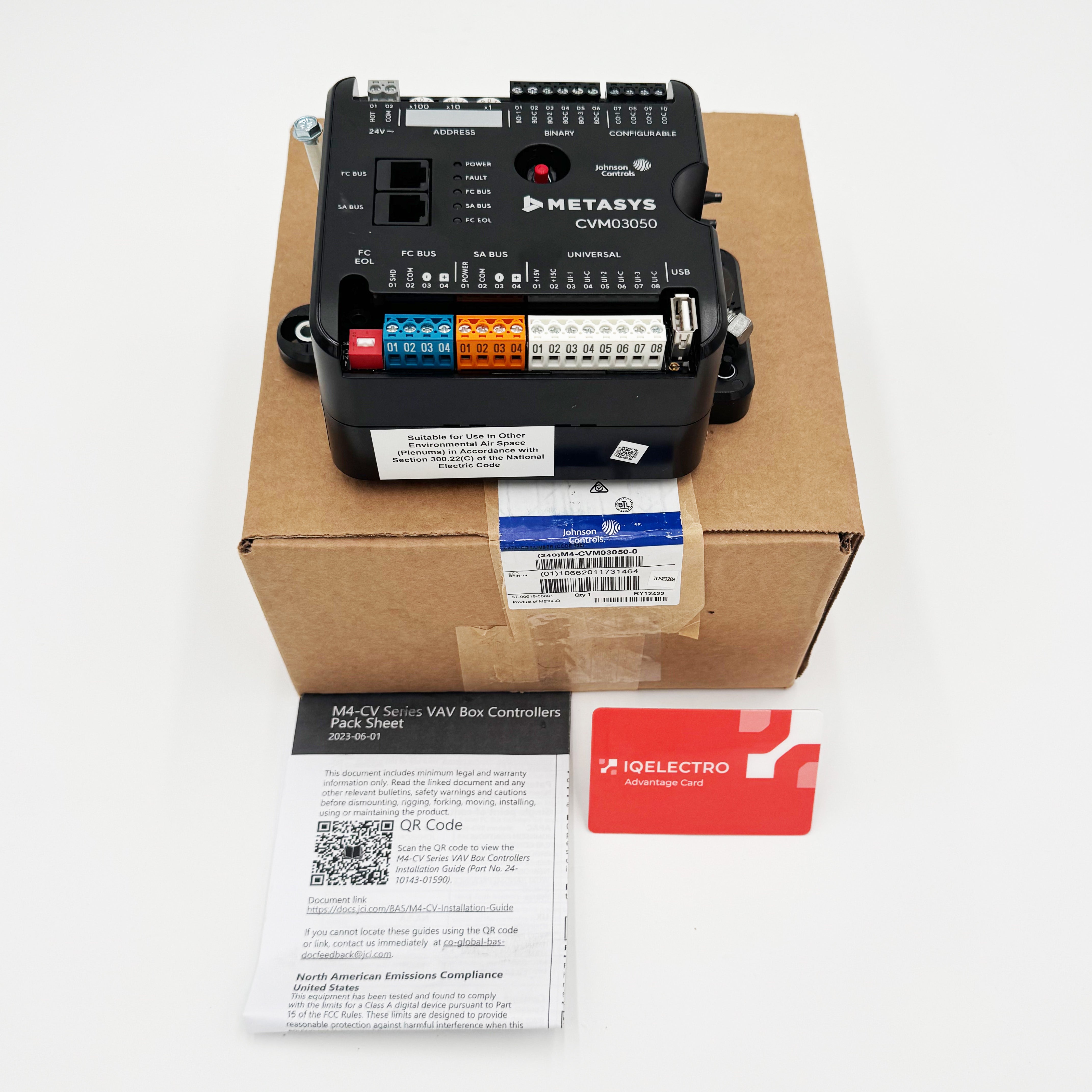

This Johnson Controls M4-CVM03050-0 Metasys CVM03050 Vav Controller is the perfect solution for your HVAC and refrigeration needs. With its reliable brand, Johnson Controls, you can trust that this VAV control will perform efficiently and effectively. The model, CVM03050, and MPN, CVM03050, make it easy to identify and locate the specific part you need. This VAV controller is ideal for use in business and industrial settings, specifically in HVAC and refrigeration. Its categories include parts and accessories as well as controls and circuit boards.



Technical Specifications



Brand JOHNSON CONTROLS
Type VAV Control
Part Number M4-CVM03050-0

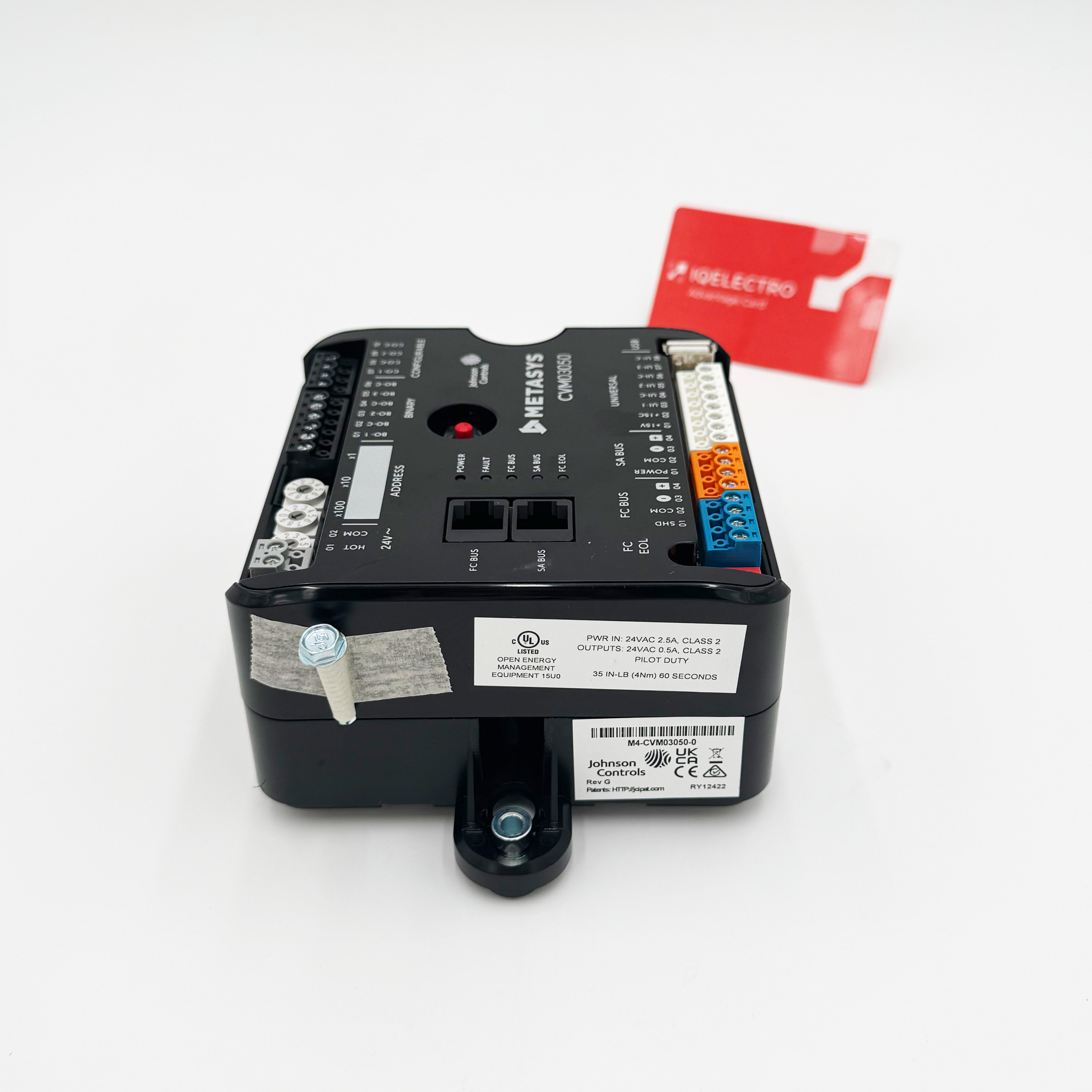

CONTROLLER CGM / VGM
CLASS CLASS 2
VAC 24
AMP INPUT 2.5
AMP OUTPUT 0.5





Information About M4-CVM03050-0

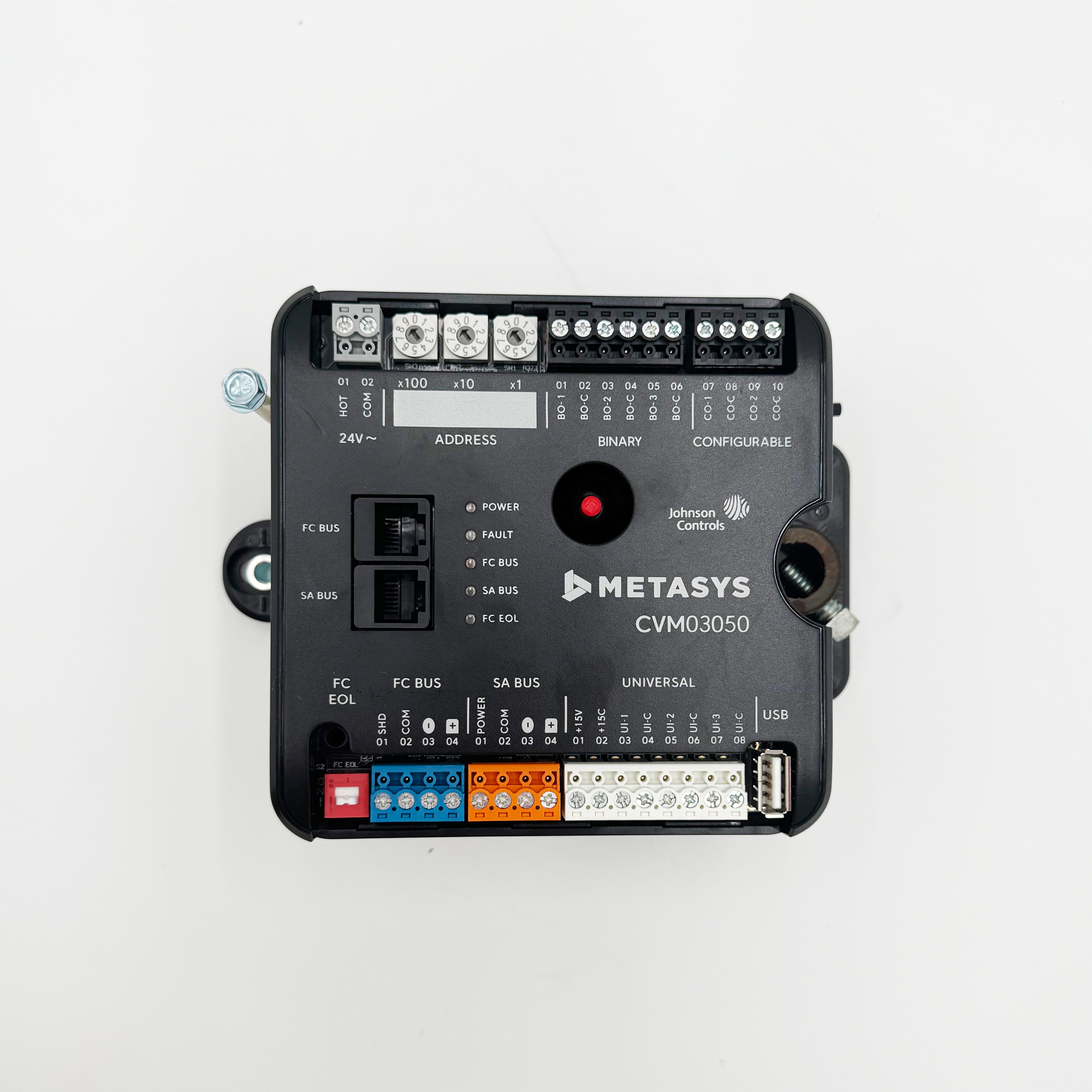

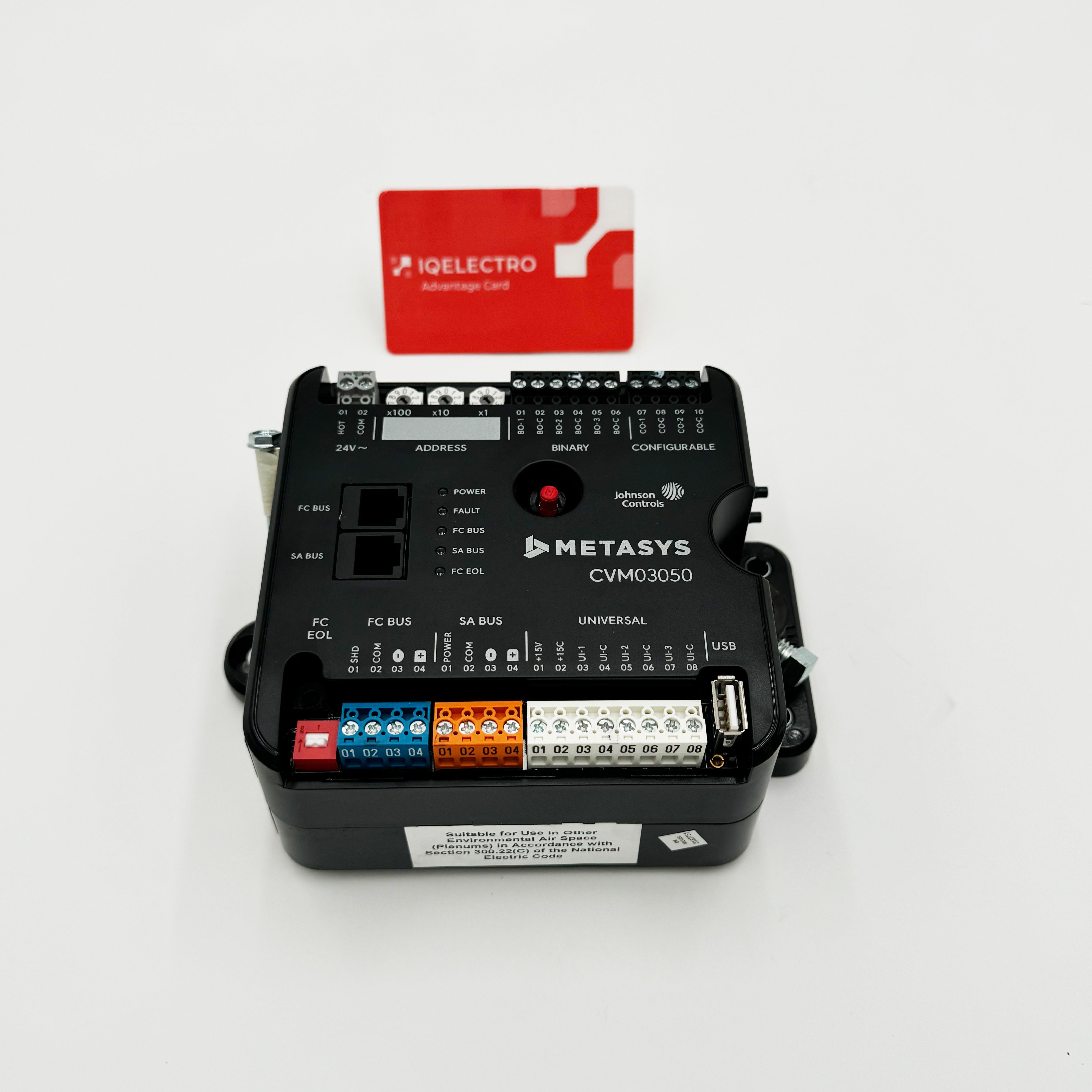

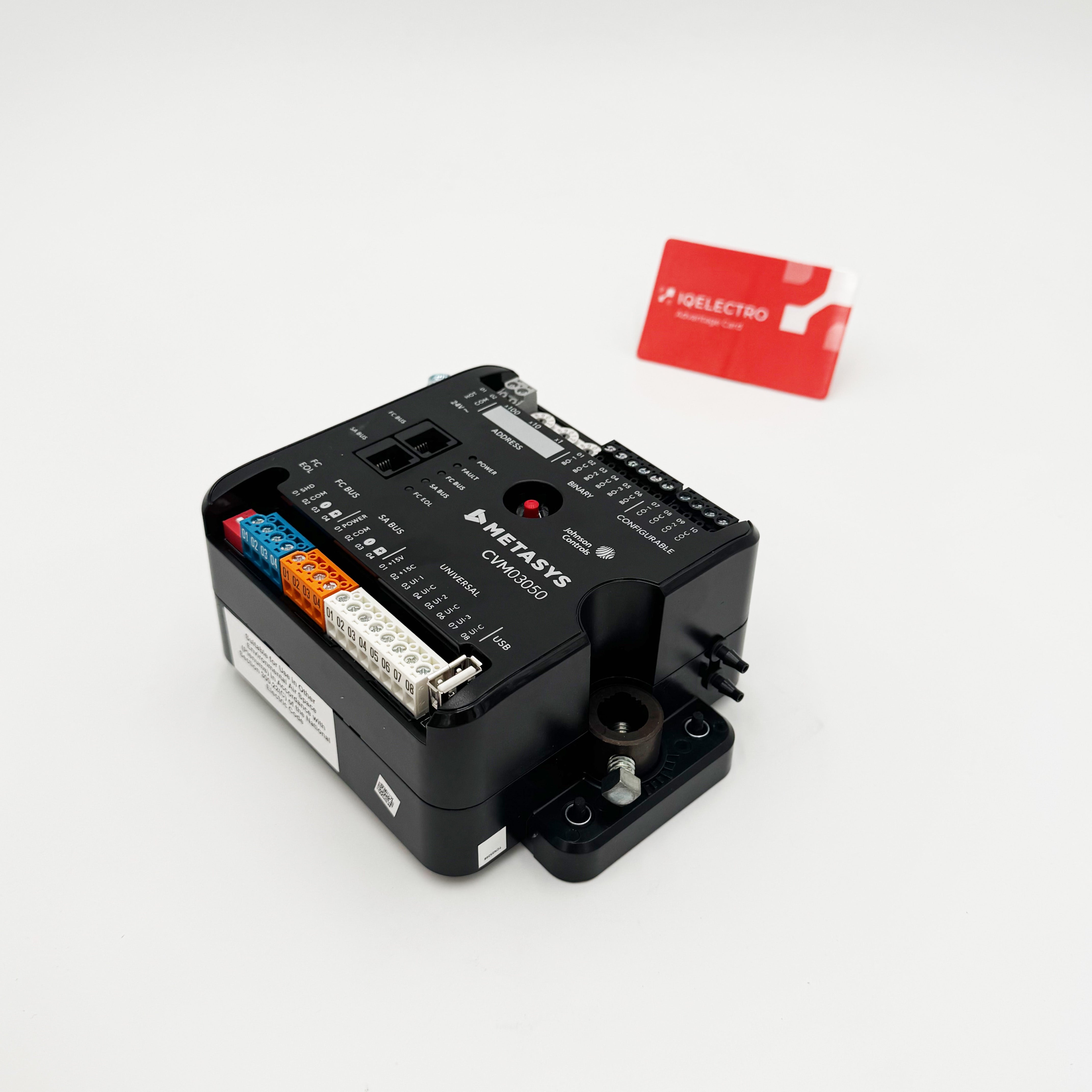

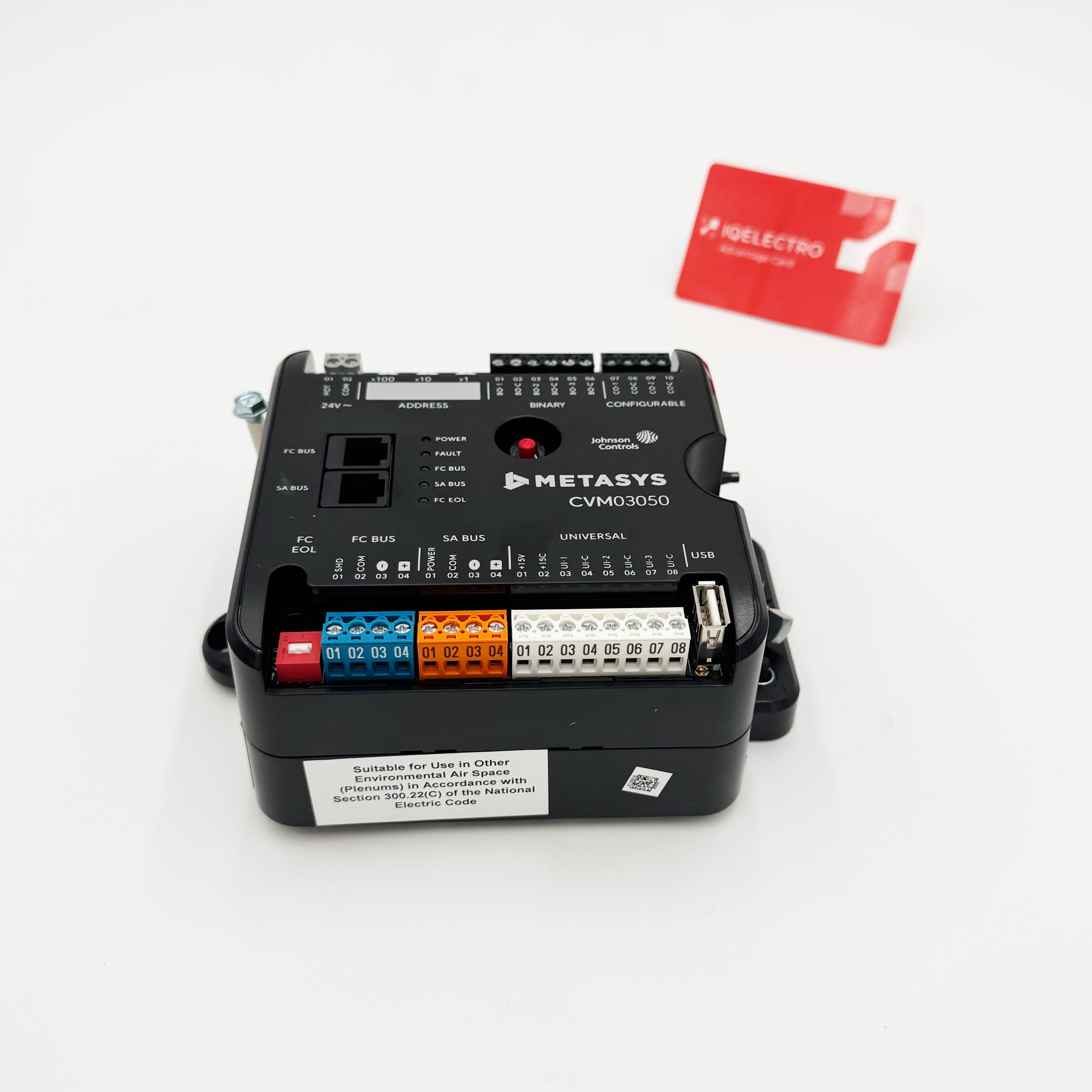

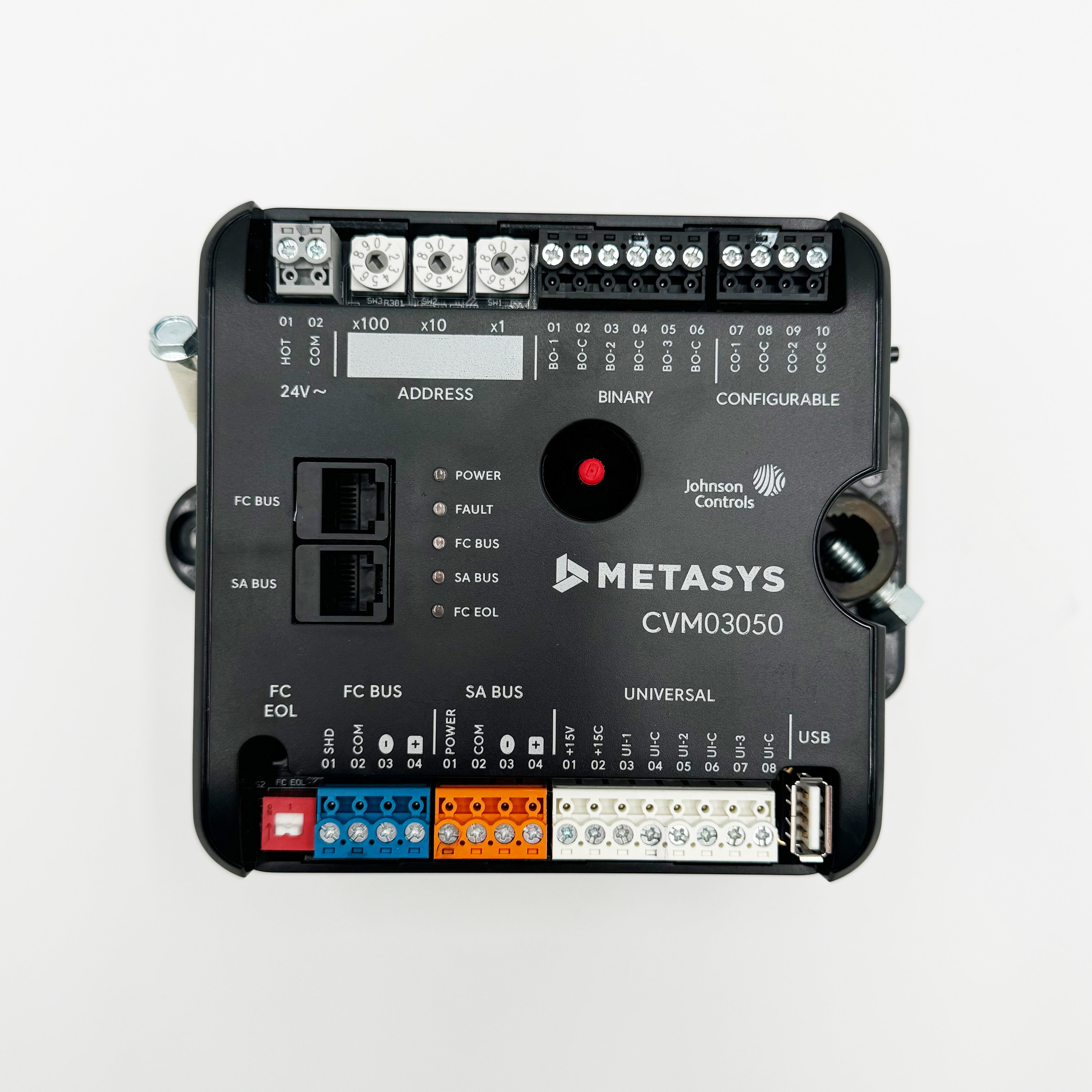

Johnson Controls M4-CVM03050-0 VAV Controller / Actuator, BACnet MS/TP; N2. Zigbee Wireless also supported (at FC Bus and for Sensors) with additional hardware.

The CV series controllers are designed for variable air volume (VAV) box applications. CV series controllers feature 14 preloaded standard applications to allow this controller to operate standard VAV box equipment with a proven energy-efficient sequence of operation, without the need for programming. For information on configuring a CV series controller to use a preloaded application, see Setting a preloaded application. These controllers are also fully programmable, using the Controller Configuration Tool (CCT), providing the flexibility to create custom control sequences.

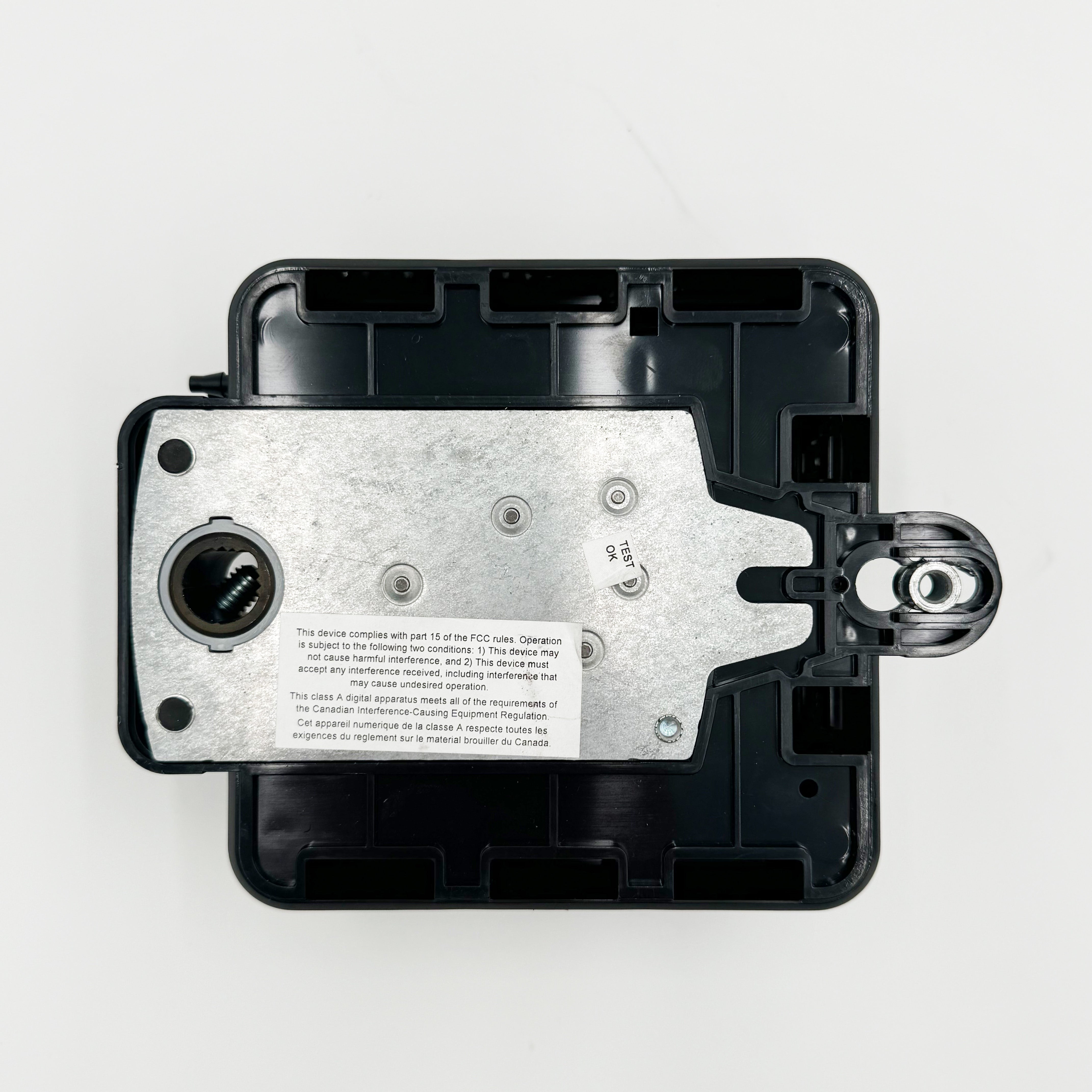

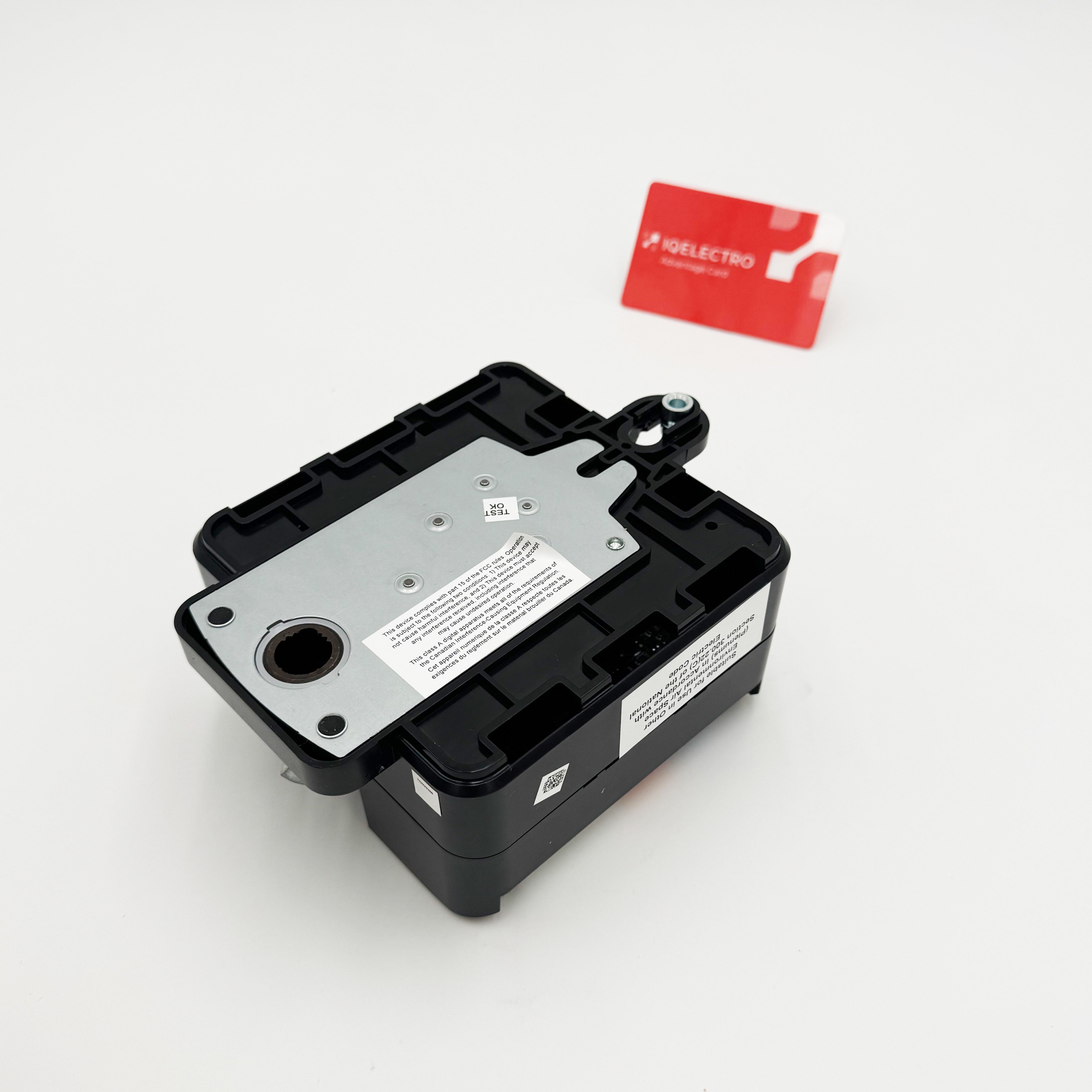

CV series controllers feature an integral damper actuator, a digital Differential Pressure Transmitter (DPT) sensor, and a 32-bit microprocessor. The CVM03050-0P and CVE03050-0P models feature an integral potentiometer to sense actual VAV box damper position. For information on configuring an application with integrated actuator feedback, refer to the M4-CV Series Actuator Feedback Application Note (LIT-12013631).

CV series controllers also include an integral real-time clock, which enables the controllers to monitor and control schedules, calendars, and trends, and operate for extended periods of time as stand-alone controllers when offline from the Metasys system network. These controllers connect easily to the wired and wireless network sensors for zone and discharge air temperature sensing. Their small package size facilitates quick field installation and efficient use of space without compromising control performance.



Manufacturer information

Johnson Controls is a multinational company specializing in building technologies, including HVAC systems, controls, batteries, and safety equipment. Founded in 1885, it is a leader in creating intelligent buildings for efficient and sustainable environments.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

This Johnson Controls M4-CVM03050-0 Metasys CVM03050 Vav Controller is the perfect solution for your HVAC and refrigeration needs. With its reliable brand, Johnson Controls, you can trust that this VAV control will perform efficiently and effectively. The model, CVM03050, and MPN, CVM03050, make it easy to identify and locate the specific part you need. This VAV controller is ideal for use in business and industrial settings, specifically in HVAC and refrigeration. Its categories include parts and accessories as well as controls and circuit boards.



Technical Specifications



Brand JOHNSON CONTROLS
Type VAV Control
Part Number M4-CVM03050-0
CONTROLLER CGM / VGM
CLASS CLASS 2
VAC 24
AMP INPUT 2.5
AMP OUTPUT 0.5





Information About M4-CVM03050-0

Johnson Controls M4-CVM03050-0 VAV Controller / Actuator, BACnet MS/TP; N2. Zigbee Wireless also supported (at FC Bus and for Sensors) with additional hardware.

The CV series controllers are designed for variable air volume (VAV) box applications. CV series controllers feature 14 preloaded standard applications to allow this controller to operate standard VAV box equipment with a proven energy-efficient sequence of operation, without the need for programming. For information on configuring a CV series controller to use a preloaded application, see Setting a preloaded application. These controllers are also fully programmable, using the Controller Configuration Tool (CCT), providing the flexibility to create custom control sequences.

CV series controllers feature an integral damper actuator, a digital Differential Pressure Transmitter (DPT) sensor, and a 32-bit microprocessor. The CVM03050-0P and CVE03050-0P models feature an integral potentiometer to sense actual VAV box damper position. For information on configuring an application with integrated actuator feedback, refer to the M4-CV Series Actuator Feedback Application Note (LIT-12013631).

CV series controllers also include an integral real-time clock, which enables the controllers to monitor and control schedules, calendars, and trends, and operate for extended periods of time as stand-alone controllers when offline from the Metasys system network. These controllers connect easily to the wired and wireless network sensors for zone and discharge air temperature sensing. Their small package size facilitates quick field installation and efficient use of space without compromising control performance.



Manufacturer information

Johnson Controls is a multinational company specializing in building technologies, including HVAC systems, controls, batteries, and safety equipment. Founded in 1885, it is a leader in creating intelligent buildings for efficient and sustainable environments.
