Product Description P/N: M4185B1009

Description / Specifications

Description

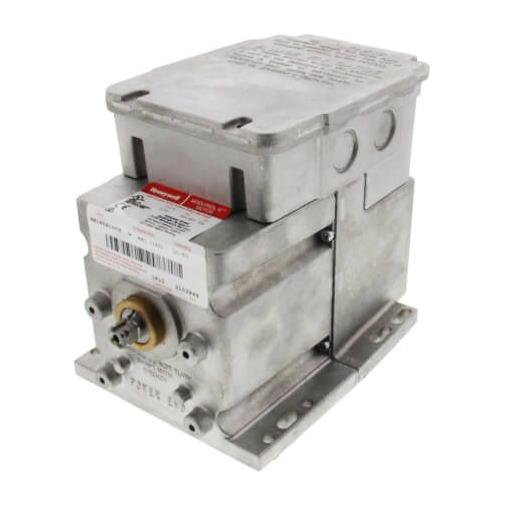

The Honeywell M4185B1009 is a Modutrol IV spring return motor engineered for two-position control of dampers and valves in HVAC systems. It operates on 120V AC at 50/60 Hz, provides 60 lb-in torque, and features an adjustable stroke from 90° to 160°, delivering durable, precise control performance with a built-in transformer and one auxiliary switch.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category HVAC Actuators
Part Number M4185B1009
Subcategory Modutrol IV Motor
Series 41 Series
Power Supply 120V AC, 50/60 Hz
Power Consumption 20 VA
Control Type Two-position, SPST
Fail-Safe Mode Spring return to normal position on power loss
Torque Output 60 lb-in
Stroke Adjustment Field adjustable 90°–160° (asymmetrical)
Timing 30–60 seconds nominal
Shaft Configuration Dual-ended, slotted and tapped both ends
Shaft Dimensions 0.375 in square
Mounting Type Foot-mounted
Auxiliary Switch 1 factory-installed SPDT switch
Switch Ratings 7.2A @ 120V, 3.6A @ 240V (AFL); 43.2A @ 120V, 21.6A @ 240V (ALR)
Rotation Direction Clockwise on signal increase (normally closed)
Electrical Connections Quick-connect terminals
Temperature Range -40°F to 150°F (-40°C to 65°C)
Enclosure Protection NEMA 3 (upright mounting)
Deadweight Load (Shaft) 200 lbs each end; 300 lbs combined
Construction Rolled steel frame with aluminum flange
Dimensions 6-7/16" H × 5-1/2" W × 8-3/4" D
Weight 9.00 lbs




Information About M4185B1009

The M4185B1009 is part of Honeywell’s Modutrol IV Series, a robust line of industrial and HVAC control motors built for precise, long-lasting performance. This model provides spring-return operation, ensuring automatic repositioning to normal state upon power interruption for fail-safe reliability. It includes a built-in transformer, dual-ended shaft, and one auxiliary switch for enhanced versatility. The adjustable stroke feature (90° to 160°) allows for customized control settings, while its 60 lb-in torque rating and 20 VA drive power make it suitable for a wide range of damper and valve control applications. Designed with a rugged steel housing and weather-protected junction box, it withstands harsh environmental conditions and continuous operation demands.

Key Features

  • Spring Return Function: Returns the motor to its normal position automatically during power loss, ensuring system safety.
  • High Torque Output: Provides 60 lb-in of torque for reliable control of dampers and valves under heavy loads.
  • Adjustable Stroke Range: Field-adjustable from 90° to 160° for flexible operation in various system configurations.
  • Dual-Ended Shaft Design: Enables operation of valve linkages from either end for normally open or normally closed configurations.
  • Integrated Transformer: Simplifies installation by providing built-in power conversion for Modutrol IV control circuitry.
  • Durable Construction: Features a rolled steel frame and aluminum flange for extended service life in industrial environments.
  • Auxiliary Switch Included: One factory-mounted SPDT switch allows additional control or feedback circuit integration.
  • Weather Protection: NEMA 3-rated junction box (upright mount) ensures protection against dust and moisture.

The M4185B1009 delivers the reliability and precision required for HVAC control applications, offering smooth actuation, configurable performance, and long-term operational durability.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Honeywell M4185B1009 is a Modutrol IV spring return motor engineered for two-position control of dampers and valves in HVAC systems. It operates on 120V AC at 50/60 Hz, provides 60 lb-in torque, and features an adjustable stroke from 90° to 160°, delivering durable, precise control performance with a built-in transformer and one auxiliary switch.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category HVAC Actuators
Part Number M4185B1009
Subcategory Modutrol IV Motor
Series 41 Series
Power Supply 120V AC, 50/60 Hz
Power Consumption 20 VA
Control Type Two-position, SPST
Fail-Safe Mode Spring return to normal position on power loss
Torque Output 60 lb-in
Stroke Adjustment Field adjustable 90°–160° (asymmetrical)
Timing 30–60 seconds nominal
Shaft Configuration Dual-ended, slotted and tapped both ends
Shaft Dimensions 0.375 in square
Mounting Type Foot-mounted
Auxiliary Switch 1 factory-installed SPDT switch
Switch Ratings 7.2A @ 120V, 3.6A @ 240V (AFL); 43.2A @ 120V, 21.6A @ 240V (ALR)
Rotation Direction Clockwise on signal increase (normally closed)
Electrical Connections Quick-connect terminals
Temperature Range -40°F to 150°F (-40°C to 65°C)
Enclosure Protection NEMA 3 (upright mounting)
Deadweight Load (Shaft) 200 lbs each end; 300 lbs combined
Construction Rolled steel frame with aluminum flange
Dimensions 6-7/16" H × 5-1/2" W × 8-3/4" D
Weight 9.00 lbs




Information About M4185B1009

The M4185B1009 is part of Honeywell’s Modutrol IV Series, a robust line of industrial and HVAC control motors built for precise, long-lasting performance. This model provides spring-return operation, ensuring automatic repositioning to normal state upon power interruption for fail-safe reliability. It includes a built-in transformer, dual-ended shaft, and one auxiliary switch for enhanced versatility. The adjustable stroke feature (90° to 160°) allows for customized control settings, while its 60 lb-in torque rating and 20 VA drive power make it suitable for a wide range of damper and valve control applications. Designed with a rugged steel housing and weather-protected junction box, it withstands harsh environmental conditions and continuous operation demands.

Key Features

  • Spring Return Function: Returns the motor to its normal position automatically during power loss, ensuring system safety.
  • High Torque Output: Provides 60 lb-in of torque for reliable control of dampers and valves under heavy loads.
  • Adjustable Stroke Range: Field-adjustable from 90° to 160° for flexible operation in various system configurations.
  • Dual-Ended Shaft Design: Enables operation of valve linkages from either end for normally open or normally closed configurations.
  • Integrated Transformer: Simplifies installation by providing built-in power conversion for Modutrol IV control circuitry.
  • Durable Construction: Features a rolled steel frame and aluminum flange for extended service life in industrial environments.
  • Auxiliary Switch Included: One factory-mounted SPDT switch allows additional control or feedback circuit integration.
  • Weather Protection: NEMA 3-rated junction box (upright mount) ensures protection against dust and moisture.

The M4185B1009 delivers the reliability and precision required for HVAC control applications, offering smooth actuation, configurable performance, and long-term operational durability.
