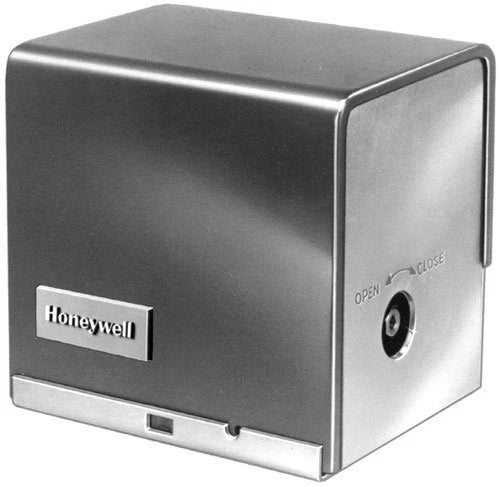

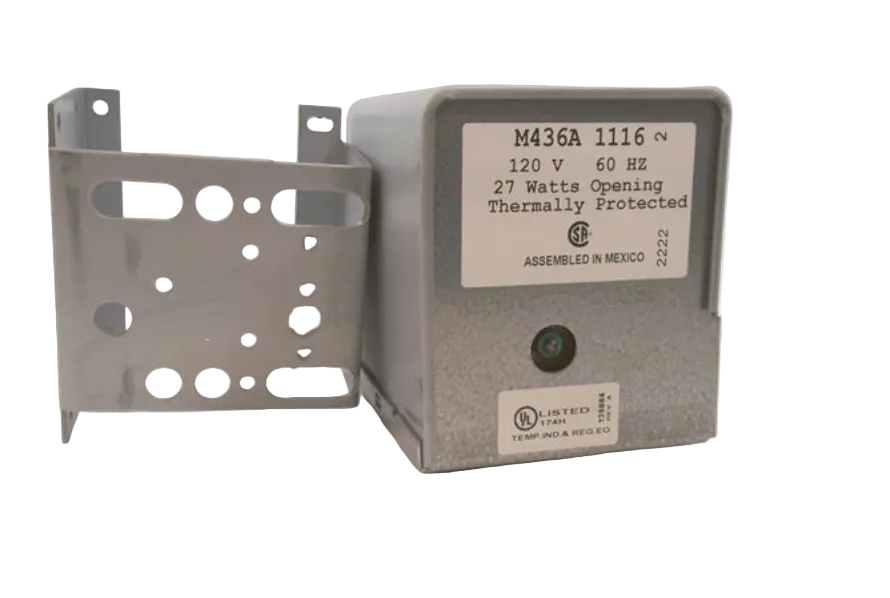

M436A1116 | Honeywell Spring-Return HVAC Damper Actuator, 20 in-lb, 120 VAC
- Regular price
- $912.00
- Sale price
- $912.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M436A1116
Description
The Honeywell M436A1116 is a spring-return damper actuator designed to control air dampers in HVAC systems using reliable electromechanical operation. This actuator delivers 20 in-lb of torque and operates on 120 VAC to provide precise damper positioning during normal operation and automatic return on power loss. It is commonly used in ventilation and air-handling applications requiring dependable airflow control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M436A1116 |
| Subcategory | HVAC Actuator |
| Actuator Type | Damper actuator |
| Operation | Spring return |
| Mounting Style | Remote mount |
| Torque Rating | 20 in-lb |
| Shaft Type | Hexagonal |
| Output Shaft | Double-ended |
| Switch Type | SPST |
| Supply Voltage | 120 VAC |
| Power Consumption | 28 W |
| Replacement For | M436A1090 |
| Application | HVAC damper and airflow control |
| Weight | 4.95 lbs |
Information About M436A1116
The M436A1116 is part of Honeywell’s M436 series of damper actuators engineered for remote-mounted HVAC control applications. It features a robust double-ended output shaft with a hexagonal profile to support flexible mechanical linkage configurations. The actuator is compatible with standard HVAC damper assemblies and integrates easily with building control systems using SPST switching. Typical usage includes air handlers, zone dampers, and ventilation systems where spring-return safety and consistent torque output are required.
Key Features:
- Spring-return operation: Automatically returns the damper to a fail-safe position upon power loss.
- 20 in-lb torque output: Provides sufficient force for reliable damper movement.
- 120 VAC power supply: Designed for standard HVAC electrical systems.
- Remote mount design: Allows flexible installation away from the damper shaft location.
- Double-ended shaft: Supports multiple linkage and mounting configurations.
- Hexagonal shaft type: Ensures secure mechanical coupling to dampers.
- SPST auxiliary switch: Enables position indication or interlock control.
The M436A1116 delivers the reliability and precision required for safe and consistent damper control in HVAC airflow management systems.
