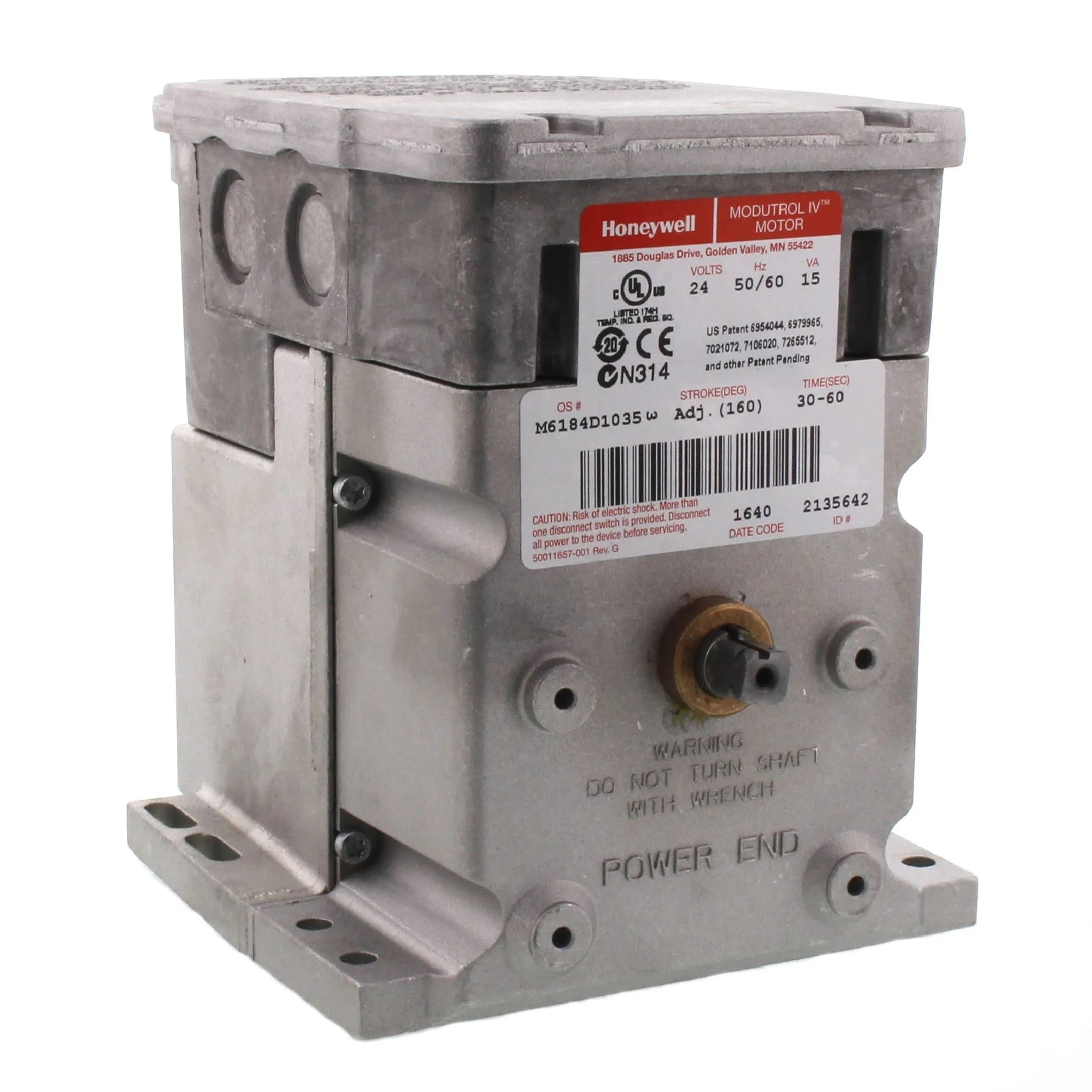

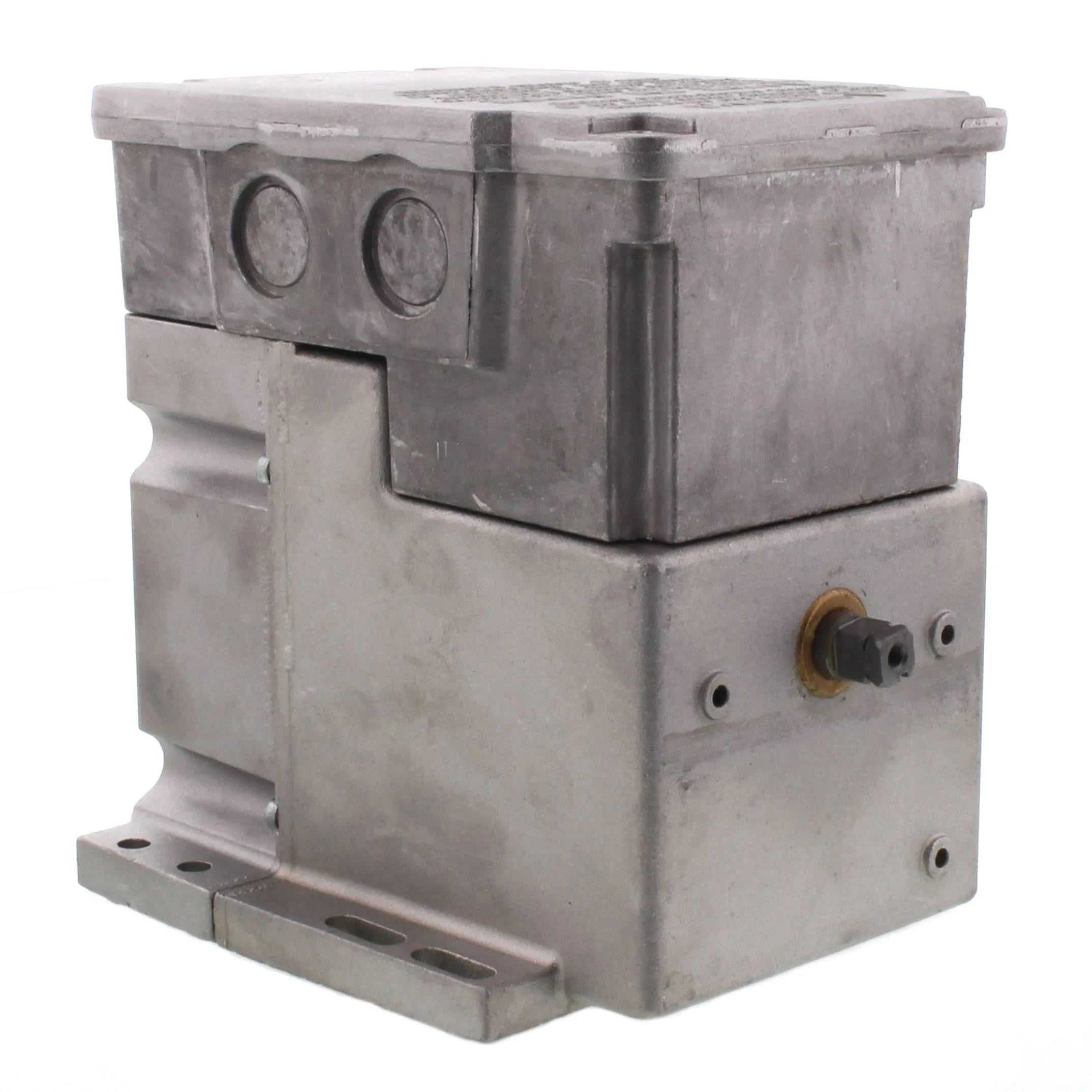

M6184D1035 | Honeywell Modutrol IV Floating Damper Actuator 150 Lb-In 24V
- Regular price
- $888.25
- Sale price
- $888.25
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M6184D1035
Description
The Honeywell M6184D1035 is a Modutrol IV floating control motor designed to deliver precise damper and valve positioning in HVAC applications. Operating on a 24 VAC supply, it provides 150 lb-in of torque with a wide adjustable rotational stroke for reliable airflow and process control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC |
| Part Number | M6184D1035 |
| Subcategory | Damper Actuator |
| Series | M61 Modutrol IV |
| Control Signal | Floating |
| Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Torque Rating | 150 lb-in (17 Nm) |
| Power Consumption (Driving) | 15 VA |
| Shaft Size | 3/8 in (10 mm) |
| Shaft Shape | Square |
| Shaft Type | Dual-ended |
| Factory Stroke Setting | 160 degrees |
| Rotational Stroke | 90–160 degrees |
| Nominal Timing | 30–60 sec |
| Fail Safe Mode | Non-Spring Return |
| Deadweight Load (Single Shaft) | 200 lb |
| Deadweight Load (Combined) | 300 lb |
| Electrical Connections | Quick-connect terminals |
| Auxiliary Switch | External available |
| Ambient Temperature Range | -40°F to +150°F (-40°C to +60°C) |
| Dimensions | 164 mm H × 140 mm W × 185 mm D |
| Weight | 6.5 lb |
Information About M6184D1035
The M6184D1035 is part of Honeywell’s Modutrol IV M61 Series, engineered for floating control applications requiring dependable torque and accurate positioning. This motor is commonly used for damper and valve actuation in commercial and industrial HVAC systems where smooth modulation and durability are essential. Its non-spring return design ensures stable positioning under control signal command without automatic fail-safe movement. Built with a dual-ended square shaft and robust internal gearing, the actuator supports high deadweight loads and delivers consistent performance across a wide ambient temperature range. The unit operates on a 24 VAC power supply at 50/60 Hz and features quick-connect electrical terminals for efficient installation. Its adjustable stroke range and compatibility with external auxiliary switches make it suitable for flexible system configurations.
Key Features:
- 150 lb-in Torque Output: Provides strong and consistent actuation for dampers and valves in demanding HVAC applications.
- Floating Control Signal: Enables precise positioning control based on incremental open and close commands.
- Wide Adjustable Stroke Range: Factory set to 160 degrees with adjustable operation between 90 and 160 degrees.
- Dual-Ended Square Shaft: 3/8-inch shaft supports flexible mounting and load distribution.
- Non-Spring Return Design: Maintains last commanded position without automatic return on power loss.
- High Load Capacity: Supports up to 200 lbs on either shaft end and 300 lbs combined deadweight load.
- Broad Temperature Tolerance: Designed to operate reliably from -40°F to +150°F (-40°C to +60°C).
- Quick-Connect Terminals: Simplifies electrical installation and maintenance procedures.
The M6184D1035 delivers the reliability and precision required for accurate damper and valve control in professional HVAC systems.
