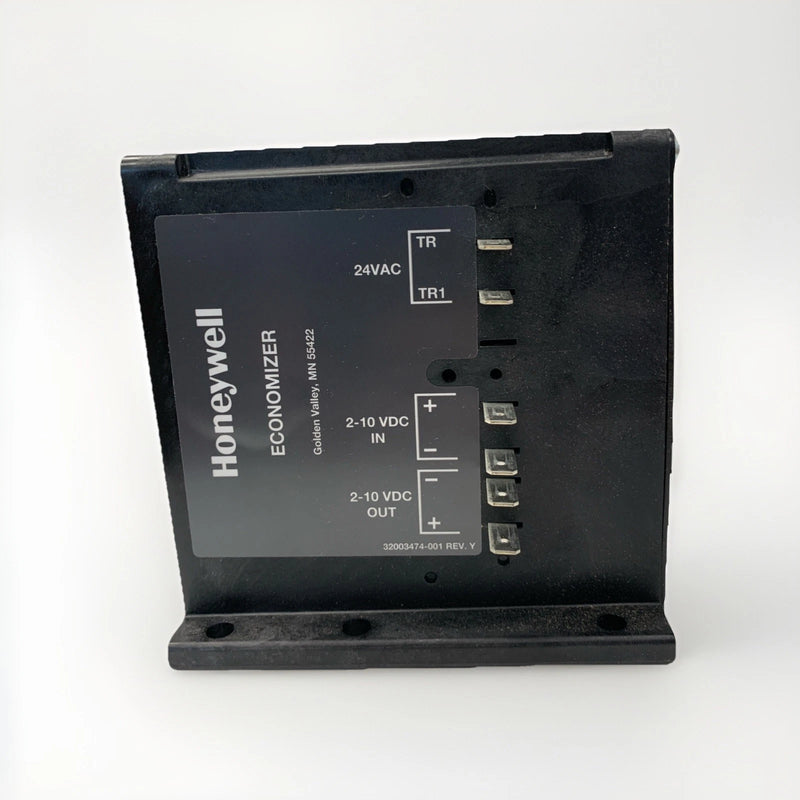

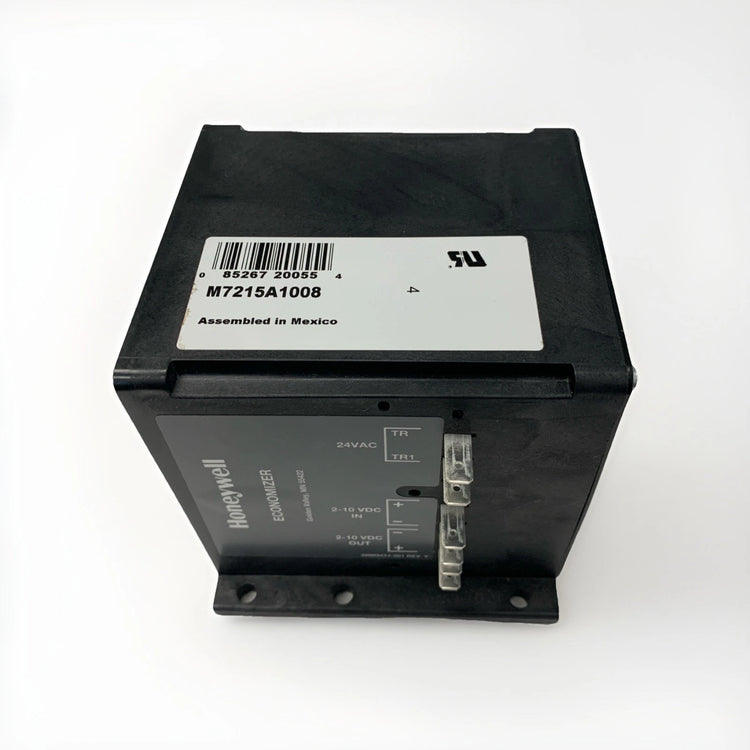

M7215A1008 | Honeywell Economizer Damper Actuator
- Regular price
- $617.00
- Sale price
- $617.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: M7215A1008
Description
The Honeywell M7215A1008 is a spring-return damper actuator designed for modulating control in residential and commercial HVAC systems. Operating at 24 VAC, it delivers up to 25 lb-in. of torque with a 90° rotation angle and failsafe spring return to the normal position.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
HVAC
|
| Part Number | M7215A1008 |
| Subcategory | HVAC Actuator |
| Series | M7215 |
| Type | Modulating Damper Actuator |
| Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Control Signal | 2–10 VDC |
| Torque | 25 lb-in |
| Rotation | 90° |
| Timing (Opening) | 90 seconds |
| Spring Return | Yes (to normal position) |
| Mounting | Foot-mounted |
| Enclosure Material | Glass-fiber reinforced plastic |
| Ambient Temperature Range | -25°F to +125°F (-31.7°C to +51.7°C) |
| Amperage | 0.32 A |
| UL Approval | Yes |
| Thermal Protection | No |
| Dimensions (L x W x H) | 7 in x 6 in x 7 in |
| Application | HVAC economizer, ventilation, combustion damper |
| Weight | 3.60 lbs |
Information About M7215A1008
The M7215A1008 is a low-voltage damper actuator from Honeywell’s economizer control series. It features a synchronous drive motor with 2–10 VDC modulating input and a spring-return mechanism that ensures safety during power loss. This model is typically used to operate ventilation, economizer, and combustion air dampers in HVAC equipment. It is compatible with Q298B linkages and is foot-mounted for secure installation. The actuator’s robust glass-fiber reinforced plastic housing ensures durability in harsh environments, and it is rated for continuous duty at ambient temperatures from -25°F to 125°F. The actuator is now discontinued and has been replaced by model Y7220SJ3104.
Key Features:
- Spring-Return Safety: Returns shaft to default position automatically during power loss for added reliability.
- Modulating Control Input: Accepts 2–10 VDC input signal for smooth, proportional damper operation.
- Rugged Housing: Built with high-impact, corrosion-resistant glass-fiber reinforced plastic.
- Standard Rotation: Provides 90° rotation angle for HVAC damper applications.
- UL Listed: Certified for safety in residential and commercial installations.
- Versatile Mounting: Foot-mounted design simplifies installation into various HVAC assemblies.
- HVAC Ready: Designed for use with economizers, ventilation dampers, and combustion systems.
- Discontinued Model: Officially retired from production; suggested replacement is Y7220SJ3104.
The M7215A1008 delivers reliable damper control with modulating response and spring-return functionality, ideal for building ventilation and safety-critical air systems.
