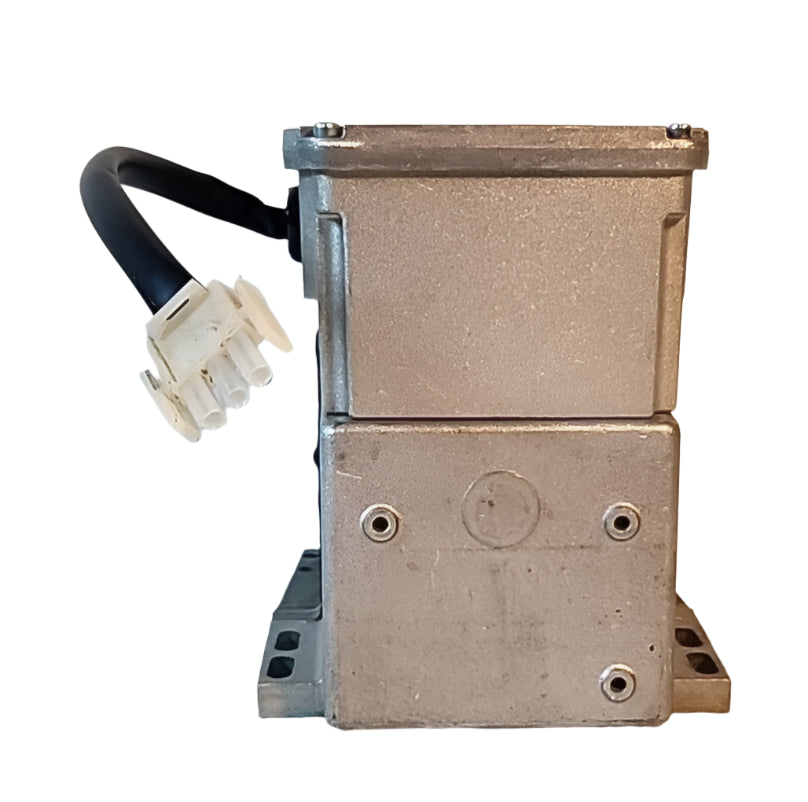

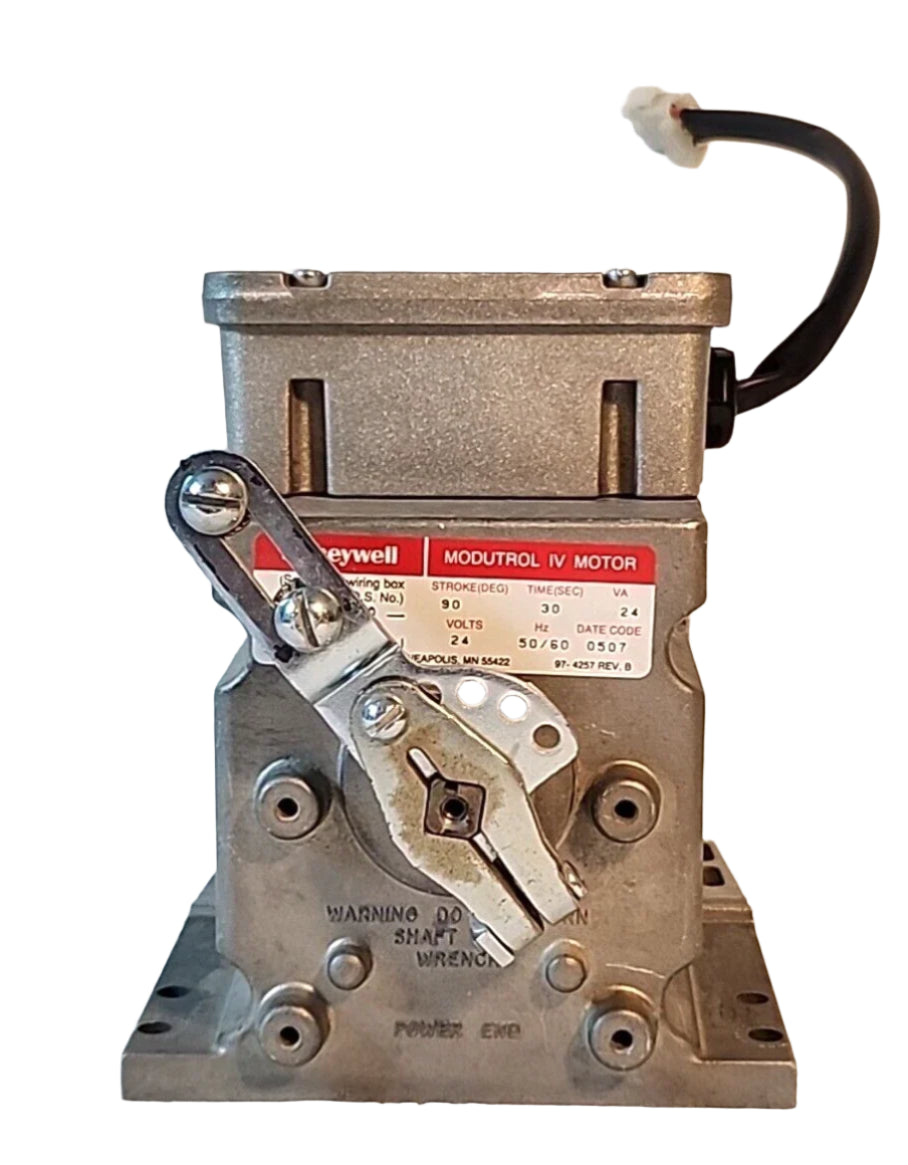

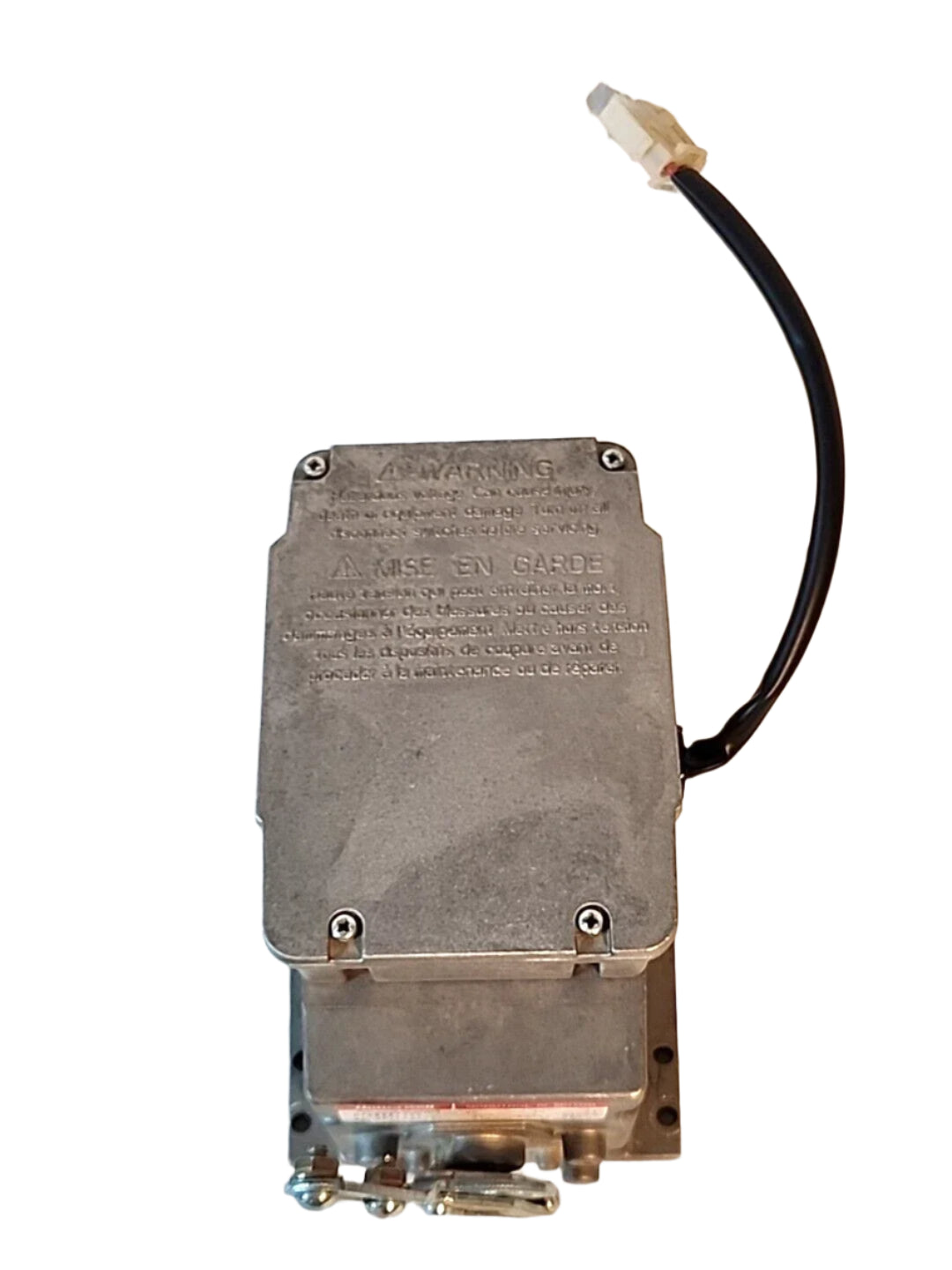

M7282A1022 | Honeywell Actuator Modutrol IV Motor 24 V
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: M7282A1022
Description
The M7282A1022 is a spring-return electronic Modutrol IV motor designed to position dampers and valves accurately within HVAC and process control systems. It operates on 120 VAC (50/60 Hz) and delivers precise torque and timing for rigorous industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | M7282A1022 |
| Subcategory | Rotary Actuator / Valve & Damper Motor |
| Type | Spring‑return electronic damper/valve actuator |
| Series | Honeywell Modutrol IV (Series 72) |
| Input Signal | 4–20 mA proportional current |
| Stroke | Fixed 90° |
| Timing | 30 seconds (90°) |
| Torque | 60 lb·in (6.8 N·m) |
| Input Voltage | 120 VAC, 50/60 Hz |
| Ambient Temperature | –40 °F to +150 °F (–40 to +66 °C) |
| Housing Material | Die‑cast aluminum |
| Gear Train | Oil‑immersed |
| Wiring Protection | NEMA 3 rated junction box |
| Weight | 10.00 lbs |
| Connection | Quick‑connect terminals |
| Signal Compatibility | Replaces M744, M745 series actuators |
| Fail-Safe Behavior | Spring returns to closed on power loss |
| Mounting | Foot‑mounted |
| Product Status | Discontinued |
Information About M7282A1022
The M7282A1022 is part of Honeywell’s Series 72 Modutrol IV line, engineered for modulating control of dampers and valves. As a spring-return variant, it reliably moves to its default (closed) position when power is interrupted, enhancing system safety. The motor features a fixed 90° stroke completed in 30 seconds, driven by a current input signal (4–20 mA), and provides a torque of 60 lb·in (6.8 N·m). Housed in a die-cast aluminum case with an oil-immersed gear train and NEMA-3-rated wiring box, it ensures durable operation across a wide temperature range (–40 to +66 °C).
Key Features:
- Spring-Return Fail Safe: Automatically returns to closed position upon power loss.
- Current-Controlled Modulation: Accepts a 4–20 mA control signal for precise positioning.
- Fixed 90° Actuation: Completes stroke in 30 sec for consistent response timing.
- Torque Output: 60 lb·in (6.8 N·m) to operate standard dampers/valves.
- Robust Housing: Die-cast aluminum with NEMA 3 junction box for indoor/outdoor use.
- Oil-Immersed Gear Train: Ensures long life and smooth performance.
- Wide Ambient Range: Works from –40 °F to +150 °F (–40 to +66 °C).
- Standard Input Voltage: Powered by 120 VAC at 50/60 Hz.
- Quick-Terminal Connections: Fast installation with quick-connect wiring.
- Legacy Compatibility: Replaces older M744/M745 series motors.
The M7282A1022 delivers reliable, spring-return actuation with precise control and rugged durability for HVAC and process system integration.
