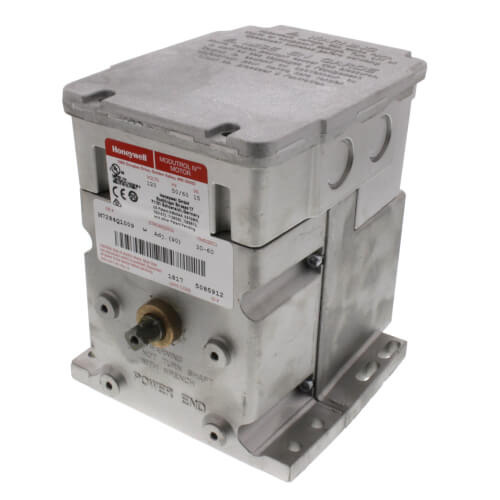

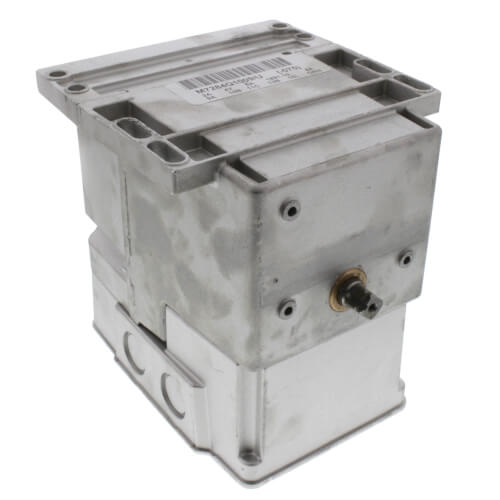

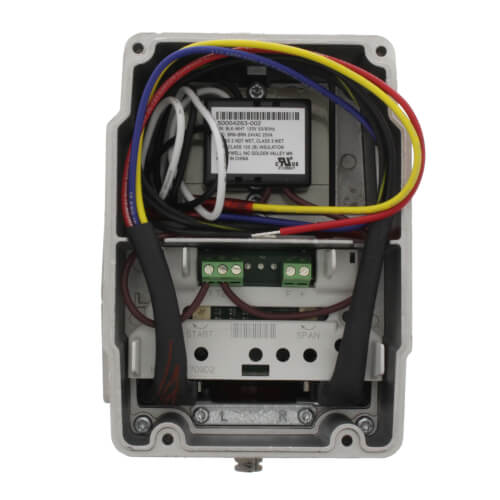

M7284Q1009 | Honeywell 120V Non-Spring Return Foot-Mounted Actuator with 2 Aux Switches, 150 lb-in
- Regular price
- $1,349.00
- Sale price
- $1,349.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: M7284Q1009
Description
The Honeywell M7284Q1009 is a non-spring return foot-mounted actuator designed for damper and valve control applications. Operating at 120V, it provides 150 lb-in torque and includes two internal auxiliary switches for flexible control and monitoring. This actuator is engineered for precise modulation in HVAC systems where reliable positioning is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HVAC Actuators |
| Part Number | M7284Q1009 |
| Subcategory | Foot-Mounted Actuators |
| Voltage | 120V |
| Fail Safe Mode | Non-Spring Return |
| Control Signal | 4–20 mA, Proportional |
| Torque | 150 lb-in |
| Stroke | Adjustable 90° to 160° |
| Motor Shaft | Dual-ended, square, 0.375 in |
| Mounting | Foot-mounted |
| Internal Auxiliary Switches | 2 |
| Timing | 30–60 seconds |
| Power Consumption | 15 VA |
| Frequency | 50/60 Hz |
| Deadweight Load Shaft (Single) | 200 lbs |
| Deadweight Load Shaft (Combined) | 300 lbs |
| Auxiliary Switch Ratings (AFL 120 Vac) | 7.2 A |
| Auxiliary Switch Ratings (AFL 240 Vac) | 3.6 A |
| Auxiliary Switch Ratings (ALR 120 Vac) | 43.2 A |
| Auxiliary Switch Ratings (ALR 240 Vac) | 21.6 A |
| Dimensions | 6 7/16 in H × 5 1/2 in W × 8 3/4 in D |
| Temperature Range | -40°F to 150°F |
| Housing | Die-cast aluminum |
| Weight | 8.5 lbs (approx.) |
Information About M7284Q1009
The M7284Q1009 is part of Honeywell’s Series 72 Modutrol IV actuator line, built for durability and precision in commercial and industrial HVAC systems. It accepts a 4–20 mA control signal, allowing accurate positioning of dampers or valves within adjustable strokes from 90° to 160°. The die-cast aluminum housing ensures long-term reliability, while dual shaft ends enable flexible installation and linkage options. With integrated auxiliary switches and rugged design, this actuator is well-suited for demanding environmental control applications.
Key Features:
- Voltage Operation: Runs on 120V power supply for compatibility with standard control systems.
- Torque Output: Provides 150 lb-in of consistent torque across the voltage range.
- Non-Spring Return: Holds position without spring action for steady modulation.
- Auxiliary Switches: Includes two internal switches for added control flexibility.
- Adjustable Stroke: Field-adjustable from 90° to 160° for precise damper/valve control.
- Dual Shafts: Slotted and tapped on both ends to support various linkage configurations.
- Rugged Housing: Die-cast aluminum body with NEMA 3 protection when mounted upright.
- Wide Temperature Range: Operates reliably from -40°F to 150°F for diverse applications.
The M7284Q1009 delivers the reliability and precision required for commercial and industrial HVAC damper and valve control.
