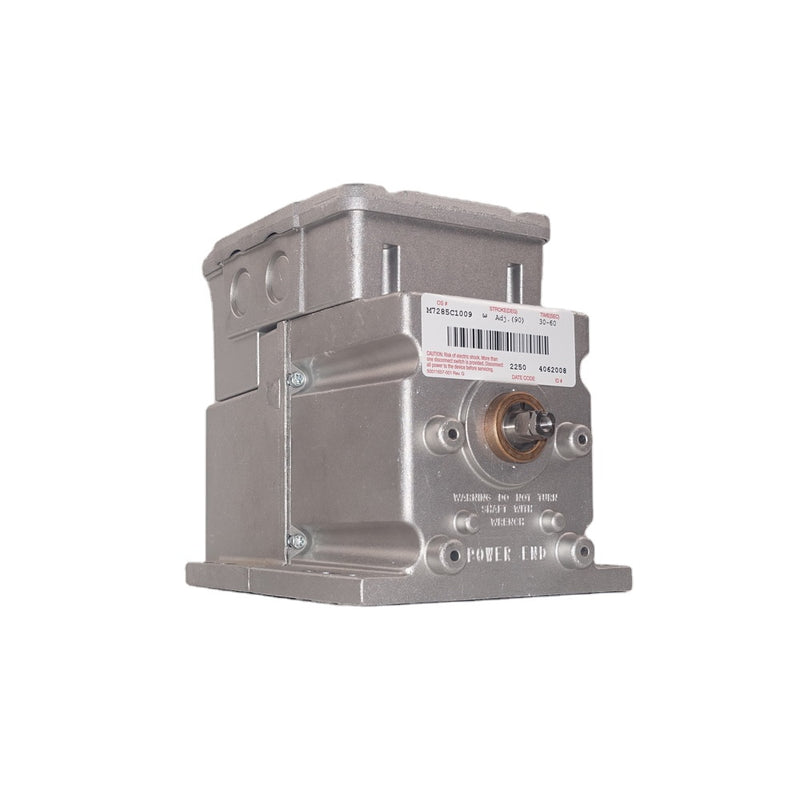

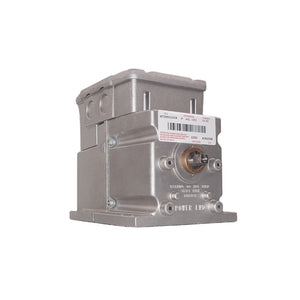

M7285A1003 | Honeywell Modutrol IV Actuator 20VA 120V-AC Motor
- Regular price
- $2,100.00
- Sale price
- $2,100.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: M7285A1003
Description
The Honeywell M7285A1003 is a Modutrol IV series actuator designed to deliver precise motor control in HVAC systems. Operating at 120V AC with 20 VA power consumption, it features panel mounting, screw-type connectors, and a robust design for long-lasting, dependable service.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
HVAC Actuators
|
| Part Number | M7285A1003 |
| Subcategory | Modulating and Two-Position Electric Actuators |
| Series | Modutrol |
| Input Voltage | 120 V AC |
| Power Consumption | 20 VA |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminals |
| Number of Contacts | 20 |
| Number of Poles | 2 |
| Upper Temperature Rating | 122°F (50°C) |
| Weight | 15.00 lbs |
Information About M7285A1003
The M7285A1003 belongs to Honeywell’s Modutrol IV family—renowned for their durability and accuracy in damper and valve positioning applications. This two-position or modulating actuator features a 120 VAC motor with 20 VA power usage and a screw terminal connection for easy field wiring. With a panel-mount design, it offers simple integration into HVAC control cabinets. The actuator includes a two-pole configuration and operates effectively in environments up to 122°F, making it suitable for commercial and industrial climate control systems. Engineered for compatibility with a wide range of controls, the M7285A1003 ensures reliable torque output and positional accuracy for airflow and fluid regulation.
Key Features:
- Modutrol IV Motorized Control: Designed for precision damper and valve positioning in HVAC systems.
- 120V AC Operation: Runs on standard line voltage with 20 VA power consumption.
- Screw Terminals: Simplifies wiring with secure, easy-to-install connectors.
- Panel Mount Configuration: Fits cleanly into control panels or enclosures for organized installation.
- Two-Pole Design: Provides stable electrical control for modulating or switching applications.
- High-Temperature Tolerance: Rated for operation up to 122°F, suitable for mechanical room environments.
- Compatible with Various Controllers: Integrates with Honeywell and third-party HVAC control systems.
- Durable Construction: Built to deliver consistent performance in demanding environments.
The M7285A1003 combines industrial reliability with flexible mounting and control capabilities for air and fluid management.
