Product Description P/N: M7285C1009

Description / Specifications

Description

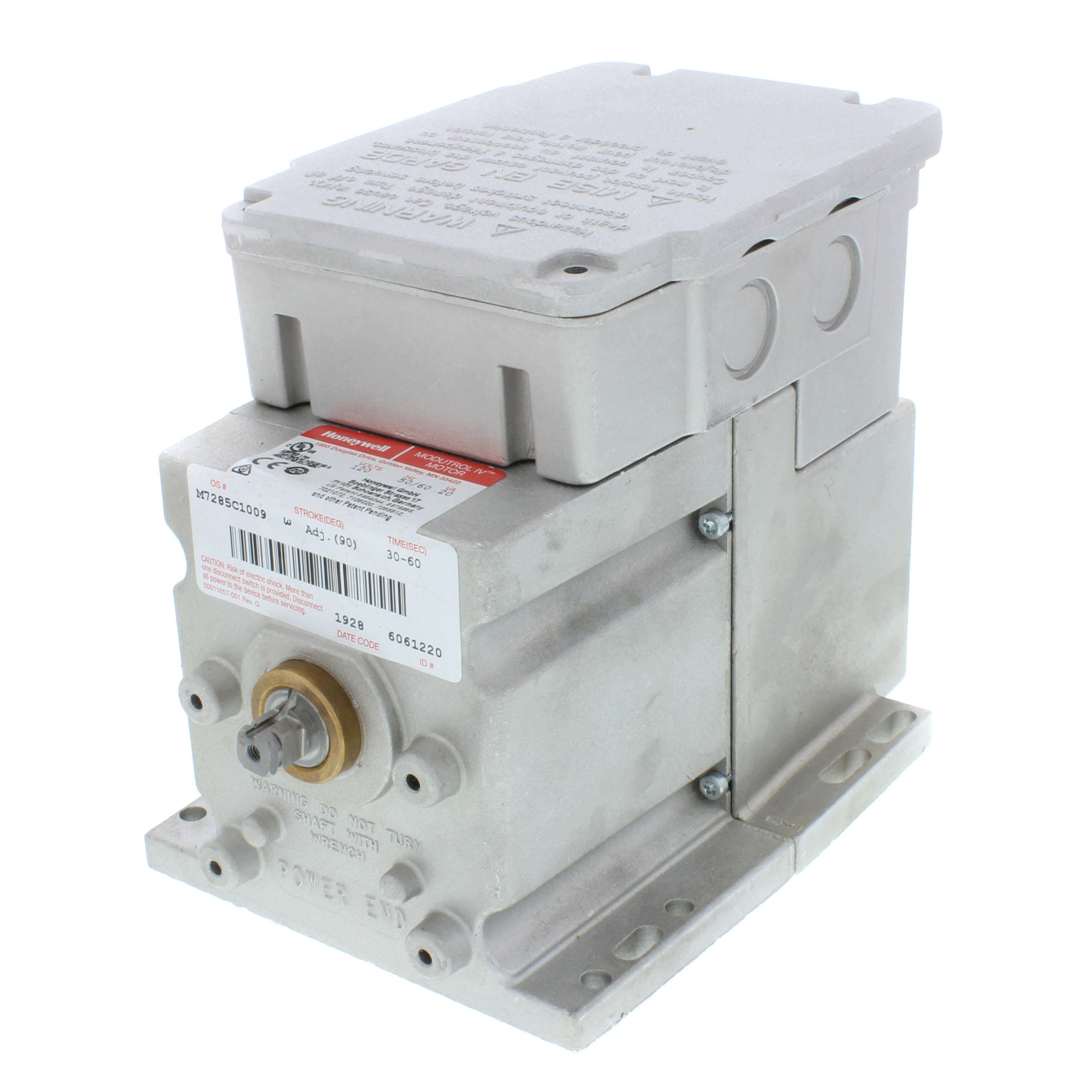

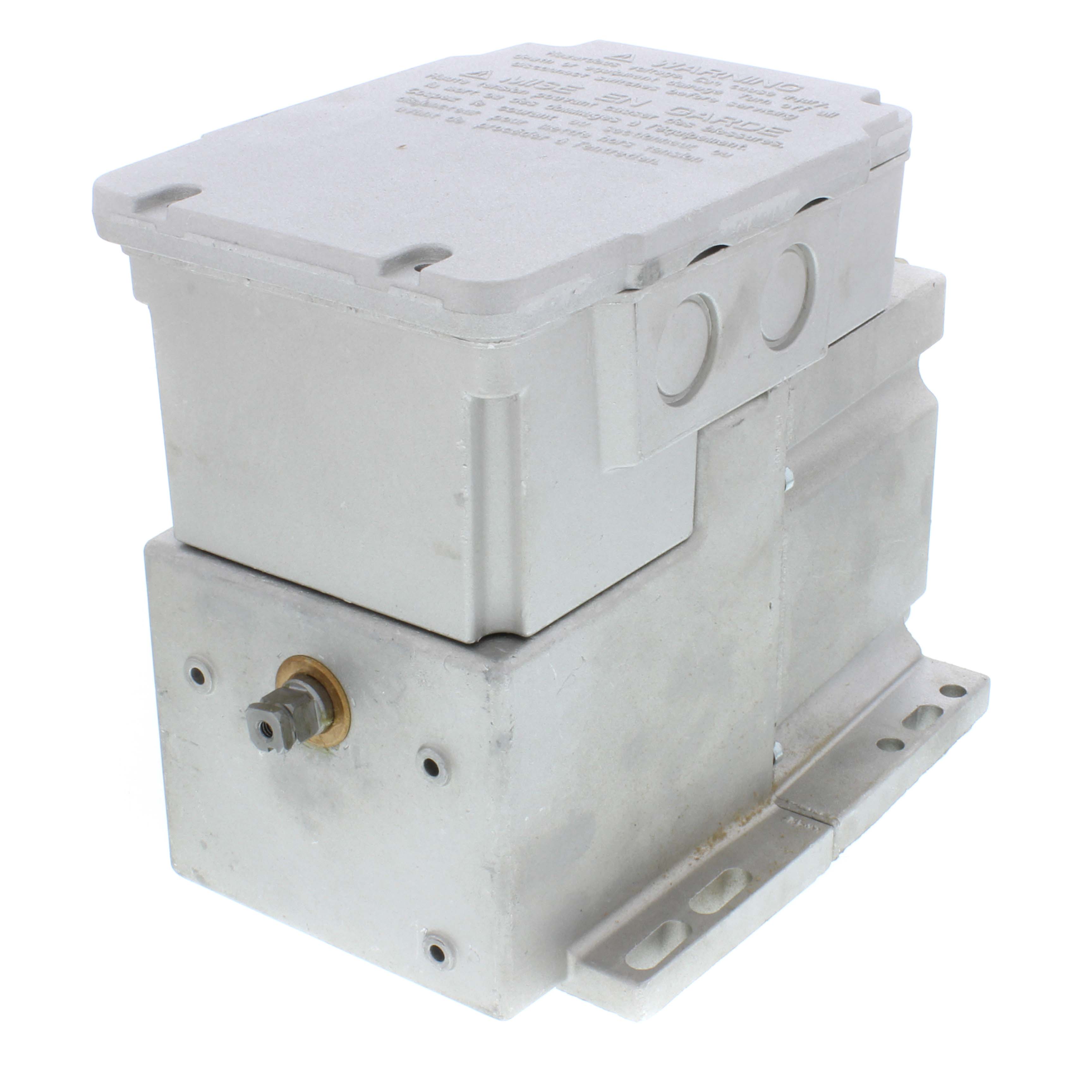

The Honeywell M7285C1009 Modutrol IV Motor is a modulating spring return actuator designed for precise damper and valve control in HVAC systems. Operating at 120 VAC with a 4–20 mA control signal, it delivers 60 lb-in torque and an adjustable 90°–160° stroke for dependable positioning and smooth modulation.




Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category HVAC Actuators
Part Number M7285C1009
Subcategory Modutrol IV Motor
Type Modulating Spring Return Actuator
Power Supply 120 VAC, 50/60 Hz
Control Signal 4–20 mA
Fail-Safe Mode Spring Return to Normal Position
Torque Rating 60 lb-in
Stroke Range Adjustable 90°–160°, Asymmetrical
Timing 30–60 seconds nominal
Auxiliary Switches Two Internal Factory-Mounted Switches
Rotation Direction Field-Adjustable
Motor Shaft Dual-Ended Square Shaft (0.375 in)
Deadweight Load on Shaft (Single End) 200 lbs
Deadweight Load on Shaft (Combined) 300 lbs
Mounting Type Foot-Mounted
Housing Material Die-Cast Aluminum
Enclosure Rating NEMA 3 (when mounted upright)
Electrical Connections Quick-Connect Terminals
Power Consumption 20 VA
Application Type Electric Damper / Valve Control
Operating Temperature Range (°F) −40 to +150 °F
Operating Temperature Range (°C) −40 to +66 °C
Dimensions (in.) 6 7/16 H × 5 1/2 W × 8 3/4 D
Compatibility Replaces M7285A1003
Weight 9.00 lbs




Information About M7285C1009

The M7285C1009 is part of Honeywell’s Modutrol IV family, a series of reliable actuators used for precision modulation of dampers and valves in heating, ventilation, and combustion systems. This model operates on 120 VAC and accepts a 4–20 mA control signal for proportional positioning across an adjustable 90°–160° stroke. It provides a fail-safe spring return feature that automatically resets the actuator to its normal position upon power loss. Two factory-installed auxiliary switches allow feedback or control sequencing. The dual-ended square shaft design enables versatile installation on either the power or auxiliary end, while the NEMA 3-rated aluminum housing ensures durability in demanding environments.

Key Features:

  • Modulating 4–20 mA Control: Provides precise proportional positioning for accurate damper and valve modulation.
  • Spring Return Fail-Safe: Automatically returns the actuator to its normal position during power interruption.
  • High Torque Output: 60 lb-in torque delivers consistent and stable mechanical performance.
  • Adjustable Stroke Range: Field-adjustable from 90° to 160° to suit a wide range of applications.
  • Dual Auxiliary Switches: Two internal switches allow additional control or position indication.
  • Durable Construction: Die-cast aluminum housing offers mechanical strength and NEMA 3 weather protection.
  • Flexible Installation: Foot-mount and dual-shaft design simplify retrofit and system integration.
  • Wide Temperature Range: Operates from −40 °F to 150 °F, ensuring reliability in harsh environments.

The M7285C1009 delivers the reliability and precision required for modulating control in commercial HVAC, burner management, and industrial automation systems.
