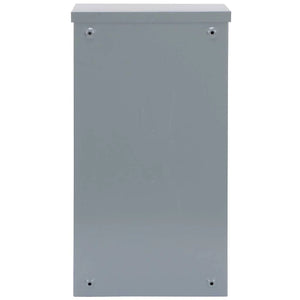

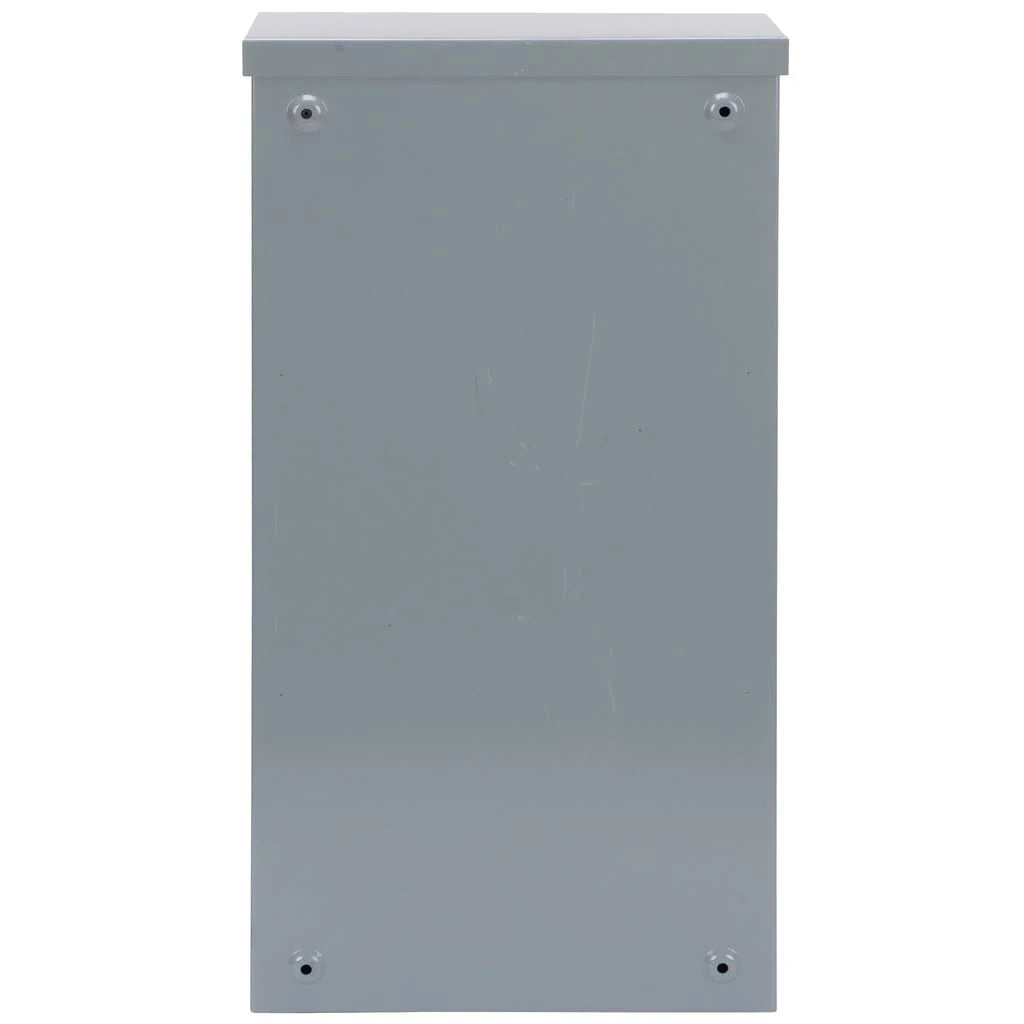

M800R | Schneider Electric Square D PowerPact Enclosure, 800A Capacity, NEMA 3R, Steel, Outdoor Rated
- Regular price
- $3,255.00
- Sale price
- $3,255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M800R
Description
The Schneider Electric M800R is a steel PowerPact enclosure designed to house circuit breakers rated from 300A to 800A in both 2- and 3-pole configurations. Built to NEMA 3R standards, it is suitable for outdoor environments while maintaining protection for the installed breaker. Its design supports compatibility with multiple PowerPact frame types, offering a durable solution for high-capacity electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Panel Accessories |
| Part Number | M800R |
| Subcategory | Enclosure 800 Amp Capacity |
| Manufacturer | Schneider Electric |
| Voltage Rating | 600 VAC |
| Phase Compatibility | 2–3 Phase |
| Material | Steel |
| Weight | 100 lbs |
| NEMA Rating | Type 3R |
| Breaker Capacity Range | 300A–800A |
| Compatible Breaker Frames | PJL, MGL, PKL, MJL, PLL, PGL |
| Breaker Rating Compatibility | 80% Rated Breakers |
| cULus Listing | Yes (H–Q Frame PowerPact) |
| Installation Note | Blank top wall requires field-cut openings |
| Application | Outdoor/Indoor PowerPact Breaker Housing |
Information About M800R
The M800R is part of the PowerPact M/P enclosure family and is constructed to support 300A–800A molded case circuit breakers for outdoor or indoor applications requiring NEMA 3R protection. Made from steel, the enclosure conforms to cULus listing requirements for H-through Q-frame PowerPact breakers and can be used as service entrance equipment when a neutral assembly is added. Designed for flexibility, it is compatible with 80% rated circuit breakers and maintains the short-circuit rating of the breaker installed within it. The M800R also features a blank top end wall, requiring installers to field-cut conduit openings during installation.
Key Features
- 800A enclosure capacity: Designed to support 300A–800A PowerPact circuit breakers.
- NEMA 3R outdoor rating: Suitable for exterior installations requiring weather-resistant protection.
- Steel construction: Provides structural durability for commercial and industrial environments.
- Compatibility across frame types: Supports PJL, MGL, PKL, MJL, PLL, and PGL PowerPact breakers.
- Service entrance capable: Approved when a neutral assembly is installed.
- Short-circuit rating matched to breaker: Enclosure rating aligns with the installed breaker’s SCCR.
- Supports 80% rated breakers: Ensures flexibility for various load and design requirements.
- Field-cut top wall: Blank top end requires installer-created openings for conduit entry.
The M800R delivers the reliability and structural protection required for housing high-capacity PowerPact circuit breakers in demanding environments.
