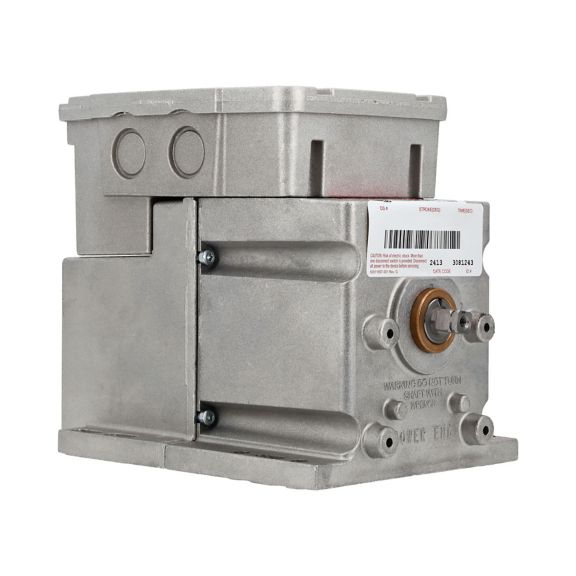

M8185D1006| Honeywell Modutrol IV 24V Spring Return Actuator 60 lb-in Torque
M8185D1006| Honeywell Modutrol IV 24V Spring Return Actuator 60 lb-in Torque
M8185D1006| Honeywell Modutrol IV 24V Spring Return Actuator 60 lb-in Torque
    M8185D1006| Honeywell Modutrol IV 24V Spring Return Actuator 60 lb-in Torque
M8185D1006| Honeywell Modutrol IV 24V Spring Return Actuator 60 lb-in Torque

M8185D1006| Honeywell Modutrol IV 24V Spring Return Actuator 60 lb-in Torque

Part #: M8185D1006 Manufactured by: Honeywell
Regular price
$1,445.00
Sale price
$1,445.00
Regular price
5 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Honeywell M8185D1006 Modutrol IV Spring Return Actuator combines strength, flexibility, and safety in a compact design...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: M8185D1006
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: M8185D1006

Description / Specifications

Description

The Honeywell M8185D1006 Modutrol IV Motor is a two-position, spring return actuator designed for precise control of dampers and valves in HVAC systems. Operating on 24 VAC, it delivers 60 lb-in torque with an adjustable stroke from 90° to 160°, ensuring reliable and safe positioning with automatic return during power loss.




Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category HVAC Actuators
Part Number M8185D1006
Subcategory Modutrol IV Actuator
Type Spring Return, Two-Position Motor
Control Signal Two-Position, SPST
Power Supply 24 VAC, 50/60 Hz
Power Consumption 20 VA
Torque Rating 60 lb-in
Rotation Direction Clockwise (CW)
Fail-Safe Mode Spring Return to Normal Position
Stroke Angle Adjustable 90° to 160°, Asymmetrical
Motor Shaft Dual-Ended Square Shaft (0.375 in.)
Shaft Load Capacity (Single End) 200 lbs
Shaft Load Capacity (Combined Ends) 300 lbs
Nominal Timing 30–60 seconds
Mounting Type Foot-Mounted
Enclosure Type Integral Junction Box, NEMA 3 (Upright Position)
Electrical Connections Quick-Connect Terminals
External Auxiliary Switches Optional, Field or Factory Installed
Operating Temperature Range (°F) -40°F to +150°F
Operating Temperature Range (°C) -40°C to +66°C
Application Damper and Valve Control in HVAC Systems
Dimensions (in.) 6-7/16 H × 5-1/2 W × 8-3/4 D
Material Heavy-Duty Metal Housing
Feedback Function None
Weight 9.10 lbs




Information About M8185D1006

The M8185D1006 is part of Honeywell’s Modutrol IV actuator series, known for their rugged design and precise motion control in ventilation and fluid regulation systems. This model operates on 24 VAC and provides 60 lb-in torque for reliable damper or valve operation in both commercial and industrial HVAC applications. Its built-in spring return mechanism ensures a fail-safe return to the normal position upon power interruption, enhancing system safety and reliability. The actuator’s adjustable stroke from 90° to 160° allows versatile configuration, while its dual-ended shaft design increases installation flexibility for normally open or closed valve arrangements. The integral junction box provides NEMA 3 weather protection when mounted upright, making it suitable for demanding environments.

Key Features:

  • Spring Return Fail-Safe: Automatically returns the actuator to its original position upon power loss for system protection.
  • Adjustable Stroke Range: Field-adjustable from 90° to 160° for a variety of valve and damper applications.
  • High Torque Output: Delivers 60 lb-in of torque with consistent performance across the voltage range.
  • Dual-Ended Shaft Design: Offers installation flexibility for both power and auxiliary drive applications.
  • Durable Construction: Heavy-duty housing with integral junction box ensures NEMA 3 weather protection when upright.
  • Easy Electrical Connection: Quick-connect terminals simplify field wiring and reduce installation time.
  • Reliable Operation: Maintains fixed torque throughout the voltage range for consistent mechanical control.
  • Versatile Application: Supports both normally open and normally closed valve and damper configurations.

The M8185D1006 delivers the reliability and precision required for effective damper and valve control, ensuring safe and consistent performance in demanding HVAC control environments.
