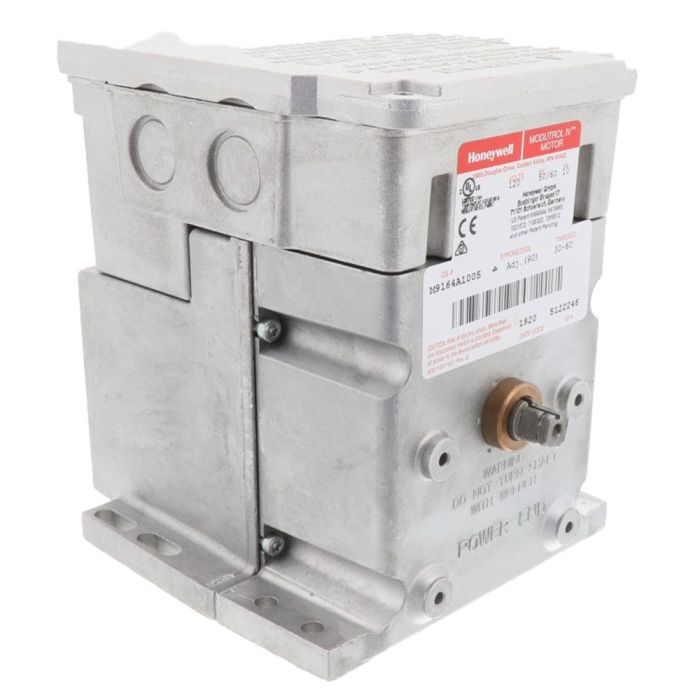

M9164A1005 | Honeywell Series 90 Modutrol IV Motor
- Regular price
- $1,804.05
- Sale price
- $1,804.05
- Regular price
-
$1,899.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: M9164A1005
Description
The Honeywell M9164A1005 is a foot-mounted Modutrol IV actuator motor designed for damper applications requiring reliable, precise movement. This non-spring return motor operates at 120 VAC with 90° adjustable stroke and delivers 35 lb-in torque for dependable control.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Flame Safety Products
|
| Part Number | M9164A1005 |
| Subcategory | Valve Actuator |
| Series | Modutrol IV Series 90 |
| Mounting | Foot-Mounted |
| Shaft Type |
Dual-Ended |
| Return Type | Non-Spring Return |
| Angle of Rotation | Adjustable 90°–160° |
| Torque | 35 lb-in |
| Power Supply | 120 VAC |
| Frequency | 50/60 Hz |
| Rotation Direction | Clockwise (CW) |
| Running Time | 30–60 Seconds |
| Enclosure Rating | NEMA 3 (upright mounting) |
| Dimensions (H×W×D) | 6 7/16" × 5 1/2" × 7 5/16" |
| Weight | 8.44 lbs |
Information About M9164A1005
The M9164A1005 is part of the Honeywell Series 90 Modutrol IV family, known for their durable construction and precise motorized actuation. Designed specifically for damper operation, this model features a dual-ended shaft, foot-mount configuration, and a 90° field-adjustable stroke that can extend up to 160°. It operates from a 120 VAC power supply at 50/60 Hz, with a rotation range of clockwise direction and running time of 30 to 60 seconds. The integral junction box offers NEMA 3 weather protection when mounted upright, making it suitable for challenging environments. Quick-connect terminals streamline installation, while optional adapter kits support retrofit use in older systems.
Key Features:
- Dual-Ended Shaft: Provides flexible linkage options for mechanical setups.
- Non-Spring Return Design: Maintains actuator position when power is removed.
- Foot-Mounted Construction: Ensures stable and secure installation.
- Adjustable Stroke: Field configurable from 90° to 160° to meet system needs.
- 35 lb-in Torque: Provides strong and consistent damper actuation.
- 120 VAC Power Supply: Compatible with standard control voltage in commercial systems.
- NEMA 3 Weather Protection: Integral junction box offers reliable operation in upright orientation.
- Clockwise Rotation: Suits standard damper movement requirements.
- 30–60 Second Run Time: Balanced speed for precise control response.
- Quick-Connect Terminals: Simplifies installation; screw terminal adapter available.
The M9164A1005 offers robust performance and flexibility, making it a trusted solution for damper actuation in commercial and industrial HVAC systems.
