M9185D1004 | Honeywell Modutrol IV Series 90 Spring Return Motor 24V
- Regular price
- $2,989.00
- Sale price
- $2,989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9185D1004
Description

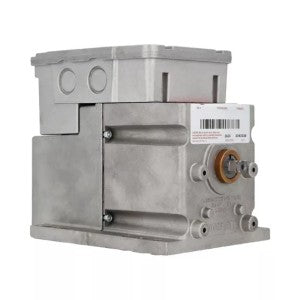

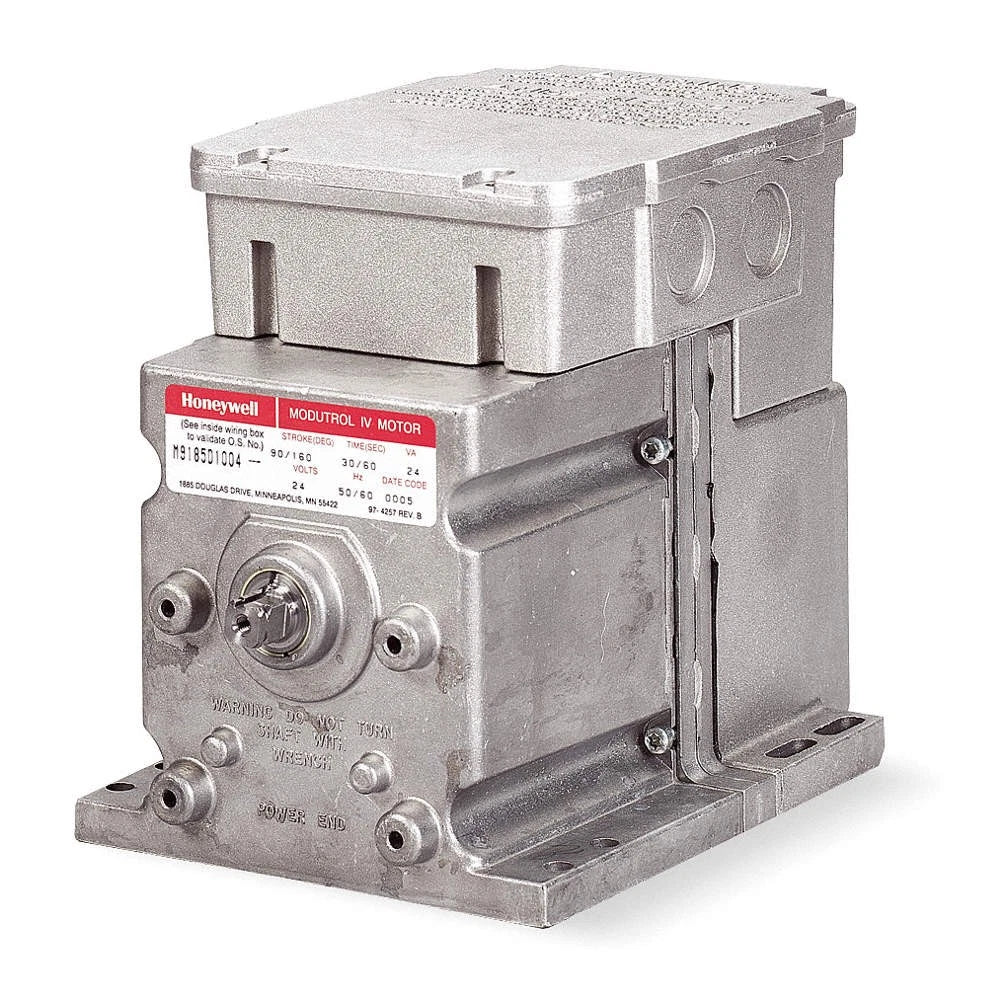

The Honeywell M9185D1004 is a Modutrol IV Series 90 electric motor designed for modulating control of dampers and valves in HVAC and industrial automation systems. The Honeywell M9185D1004 operates on a 24 VAC power supply and provides proportional positioning using an analog resistance control signal. With a 60 lb-in torque rating and spring return functionality, it ensures reliable actuator positioning and safe return to the normal position during power loss.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Part Number | M9185D1004 |
| Series | Modutrol IV (Series 90) |
| Product Type | Modulating Actuator Motor |
| Power Supply | 24 VAC |
| Frequency | 50 / 60 Hz |
| Power Consumption | 20 VA |
| Torque Rating | 60 lb-in |
| Control Signal | Analog resistance (Series 90) |
| Fail-Safe Mode | Spring return |
| Rotation | Counterclockwise (CCW) |
| Shaft Size | 3/8 in |
| Shaft Type | Dual shaft (slotted and tapped both ends) |
| Mounting Type | Foot mount |
| Frame Rating | NEMA 3 |
| Housing Material | Die-cast aluminum |
| Operating Temperature | -40°F to 150°F |
| Dimensions | 5.5 in W × 8.75 in D × 6.44 in H |
Information About M9185D1004
The M9185D1004 belongs to Honeywell’s Modutrol IV actuator family, widely used in building automation and industrial process control. These motors are designed for proportional control applications where dampers or valves require accurate positioning based on controller outputs.
This model includes an integral spring return mechanism that returns the actuator to its normal position if power is interrupted, improving system safety and reliability. The motor features a durable die-cast aluminum housing and a NEMA 3 rated junction box that provides protection from weather and environmental exposure when installed properly.
Dual shafts on both ends allow flexible installation for normally open or normally closed valve and damper configurations. The actuator can also support optional interface modules installed inside the junction box to expand control capabilities.
Key Features:
- Series 90 Modulating Control: Designed for proportional control using resistance-based signals.
- Spring Return Operation: Automatically returns to normal position during power interruption.
- 60 lb-in Torque Output: Provides reliable actuation for valves and dampers.
- 24 VAC Power Supply: Compatible with common HVAC control systems.
- Dual Shaft Design: Slotted and tapped shafts on both ends for flexible linkage installation.
- NEMA 3 Junction Box: Provides weather protection for outdoor installations.
- Durable Construction: Die-cast aluminum housing for long service life.
- Upgradeable Control Options: Junction box allows installation of optional interface modules.
