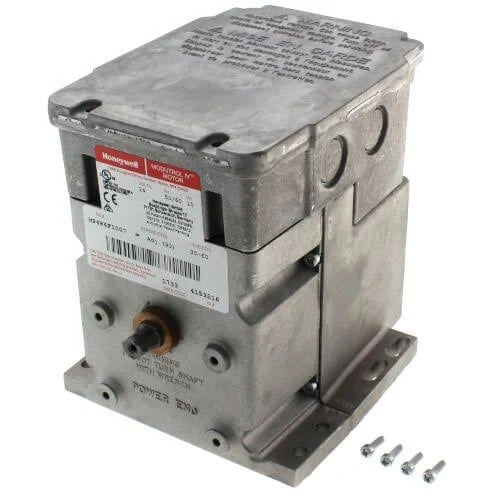

M9484F1007 | Honeywell 24 VAC Modutrol IV Proportional Motor 150 lb-in 2 Aux Switches
- Regular price
- $1,847.00
- Sale price
- $1,847.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: M9484F1007
Description
The Honeywell M9484F1007 is a 24 VAC proportional Modutrol IV motor delivering 150 lb-in of torque for precise control of burner firing rate valves, dampers, and auxiliary HVAC equipment. Designed for commercial and industrial flame safeguard systems, this non-spring-return motor operates from a 135-ohm three-wire proportional signal and includes two auxiliary switches for control feedback and interlocking. Its adjustable 90° or 160° stroke and vibration-resistant design ensure long-term reliability and accurate modulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Motors/GearBox/Clutch |
| Part Number | M9484F1007 |
| Subcategory | Motor |
| Product Type | Proportional Modutrol IV Motor |
| Voltage | 24 VAC |
| Frequency | 50/60 Hz |
| Input Signal | 135 ohm, 3-wire proportional |
| Control Type | Reversing, proportional |
| Torque Output | 150 lb-in (17 Nm) |
| Breakaway Torque | 300 lb-in (34 Nm) |
| Power Consumption | 15 W |
| Stroke | Adjustable: 90° or 160° |
| Factory Stroke Setting | 90° |
| Stroke Timing | 30 s (90°), 60 s (160°) |
| Auxiliary Switches | 2 internal SPDT |
| Auxiliary Switch Settings | 7° and 80° |
| Switch Ratings | 120 VAC: 7.2 AFL / 43.2 ALR; 240 VAC: 3.6 AFL / 21.6 ALR; 40 VA pilot duty |
| Shaft Type | Double-ended 3/8" square (9.5 mm) |
| Mounting Position | Upright or horizontal (not upside-down) |
| Ambient Temperature Range | –40 °F to +150 °F (–40 °C to +66 °C) |
| Deadweight Load on Shaft | 200 lb each end (300 lb combined) |
| Housing Material | Die-cast aluminum |
| Certifications | UL Listed (File E4436), CSA Certified |
| Dimensions (H × W × D) | 6.45 × 5.5 × 7.3 in (164 × 140 × 185 mm) |
| Weight | 6.23 lb (2.83 kg) |
Information About M9484F1007
The M9484F1007 is part of Honeywell’s Modutrol IV Series, a proven line of proportional actuators for high-performance control in HVAC and combustion systems. This model replaces legacy M941A, M941C, and M941D motors while adding electronic precision and improved durability. It provides reversible proportional motion regulated by a three-wire controller and is ideal for applications requiring fine fuel-air ratio control or variable damper positioning. The unit’s factory-set stroke is 90°, adjustable to 160° in the field, and features two internal SPDT auxiliary switches pre-set at 7° and 80° for external signaling. Its heavy-duty die-cast aluminum housing, wide ambient temperature range, and UL listing make it suitable for demanding commercial burner environments.
Key Features:
- Proportional Reversing Motor: Operates with a 135-ohm three-wire control signal for precise position modulation.
- High Torque Output: Provides 150 lb-in (17 Nm) running torque, 300 lb-in (34 Nm) breakaway torque, suitable for heavy dampers or firing rate linkages.
- Field-Adjustable Stroke: Configurable between 90° and 160° to match specific system motion requirements.
- Integrated Dual Auxiliary Switches: Two SPDT switches (set at 7° and 80°) for feedback, interlock, or sequencing control.
- Rugged, Vibration-Resistant Design: Electronic drive circuit engineered for reliability in high-vibration burner environments.
- Non-Spring Return Operation: Maintains position during power loss, ensuring controlled modulation in proportional systems.
- Wide Operating Temperature Range: Functions from –40 °F to +150 °F (–40 °C to +66 °C), suitable for boiler rooms or outdoor enclosures.
- Flexible Mounting & Shaft Design: Dual 3/8" square shafts allow direct coupling with multiple damper or valve assemblies.
- UL Certified: Meets U.S. and Canadian safety standards (File E4436, Guide XAPX).
- Long Service Life: Designed for continuous-duty operation with minimal maintenance.
The M9484F1007 provides robust proportional control for demanding HVAC and combustion applications requiring precision, durability, and feedback integration.
