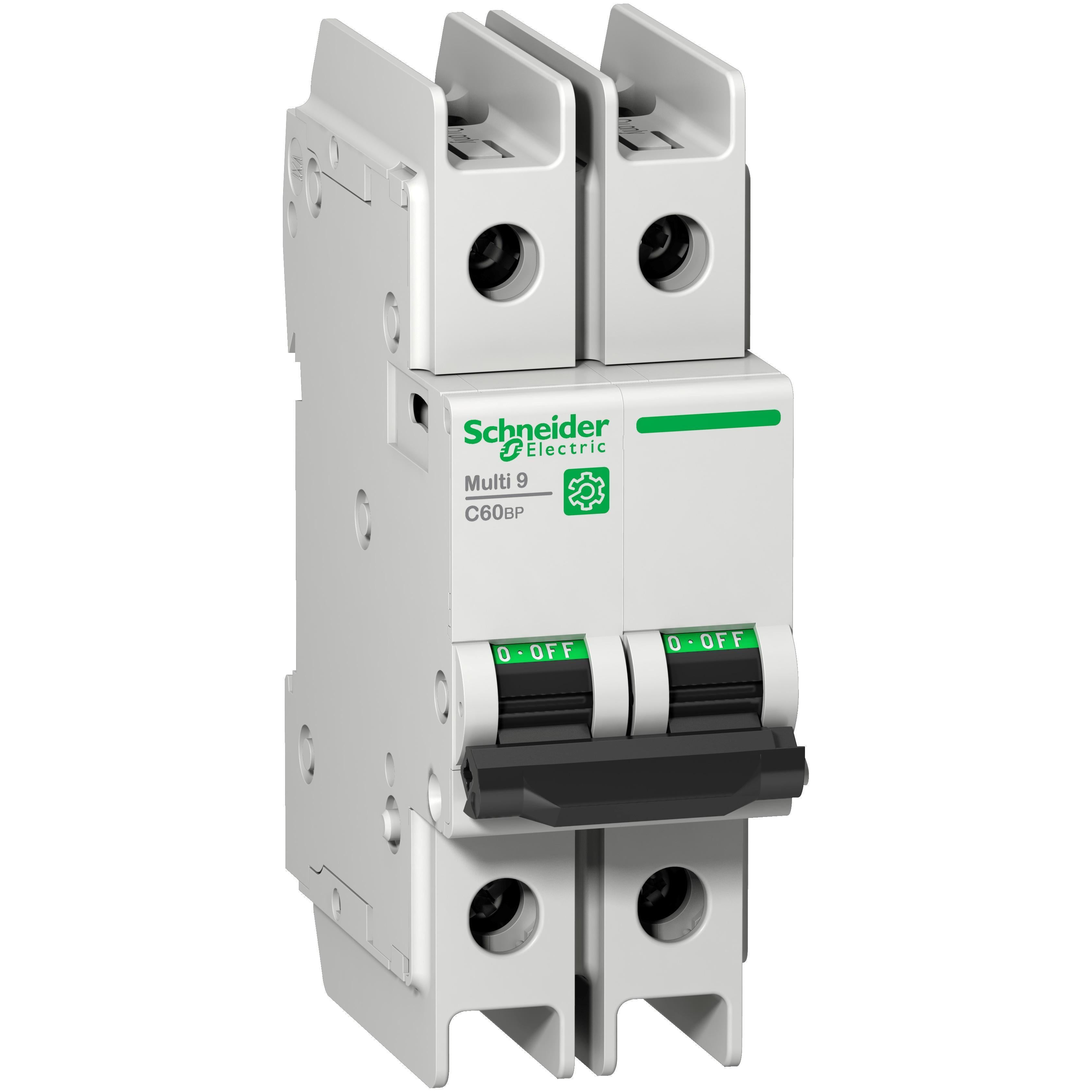

M9F42202 | Schneider Electric Multi9 C60BP 2-Pole 2A C-Curve Miniature Circuit Breaker
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9F42202
Description
The Schneider Electric M9F42202 is a Multi9 C60BP miniature circuit breaker designed to provide dependable branch circuit protection in low-voltage electrical systems. This 2-pole, 2-amp breaker uses a C-curve thermal-magnetic trip mechanism to protect equipment against overloads and short circuits. It is well suited for OEM panels and industrial control applications requiring compact, DIN-rail mounted protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | M9F42202 |
| Subcategory | Miniature Circuit Breaker |
| Series | Multi9 C60BP |
| Number of Poles | 2 |
| Rated Current | 2 A |
| Tripping Curve | C Curve |
| Rated Operational Voltage | 240 VAC |
| Short-Circuit Breaking Capacity | 10 kA at 415 VAC |
| Mounting Type | DIN Rail (Clip-On) |
| Trip Type | Thermal-Magnetic |
| Insulation Voltage (Ui) | 500 VAC |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Degree of Protection | IP20 (terminals) |
| Operating Temperature | -22 to 158 °F (-30 to 70 °C) |
| Wire Size | 18 to 8 AWG Copper |
| Weight | 0.32 lb (approx.) |
Information About M9F42202
The M9F42202 is part of Schneider Electric’s Multi9 C60BP series, a global range of multistandard miniature circuit breakers developed for industrial and commercial environments. It features two protected poles and a C tripping curve, allowing it to handle moderate inrush currents from inductive loads such as control circuits and small motors. The breaker is engineered for DIN rail installation and complies with both IEC 60898-1 and IEC 60947-2 standards, making it suitable for mixed residential and industrial use. Its robust construction delivers long mechanical and electrical endurance, ensuring reliable operation in demanding control panel applications.
Key Features:
- 2-Pole Protection: Provides simultaneous protection and disconnection of two live conductors
- C-Curve Tripping Characteristic: Designed to handle moderate inrush currents without nuisance tripping
- Thermal-Magnetic Trip Unit: Combines overload and short-circuit protection in a compact device
- 10 kA Interrupt Rating: High short-circuit breaking capacity for enhanced system safety
- DIN Rail Mounting: Clip-on design enables quick installation in standard control panels
- Multi-Standard Compliance: Certified to IEC and UL standards for global application use
- Compact Modular Width: Occupies four 9 mm pitches, optimizing panel space
The M9F42202 delivers the reliability and precision required for low-voltage branch circuit protection in industrial and OEM control panels.
