MA-418-0-0-4 | Schneider Electric Electric Damper Actuator 120 VAC Spring-Return, 60 in-lb
- Regular price
- $882.00
- Sale price
- $882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MA-418-0-0-4
Description

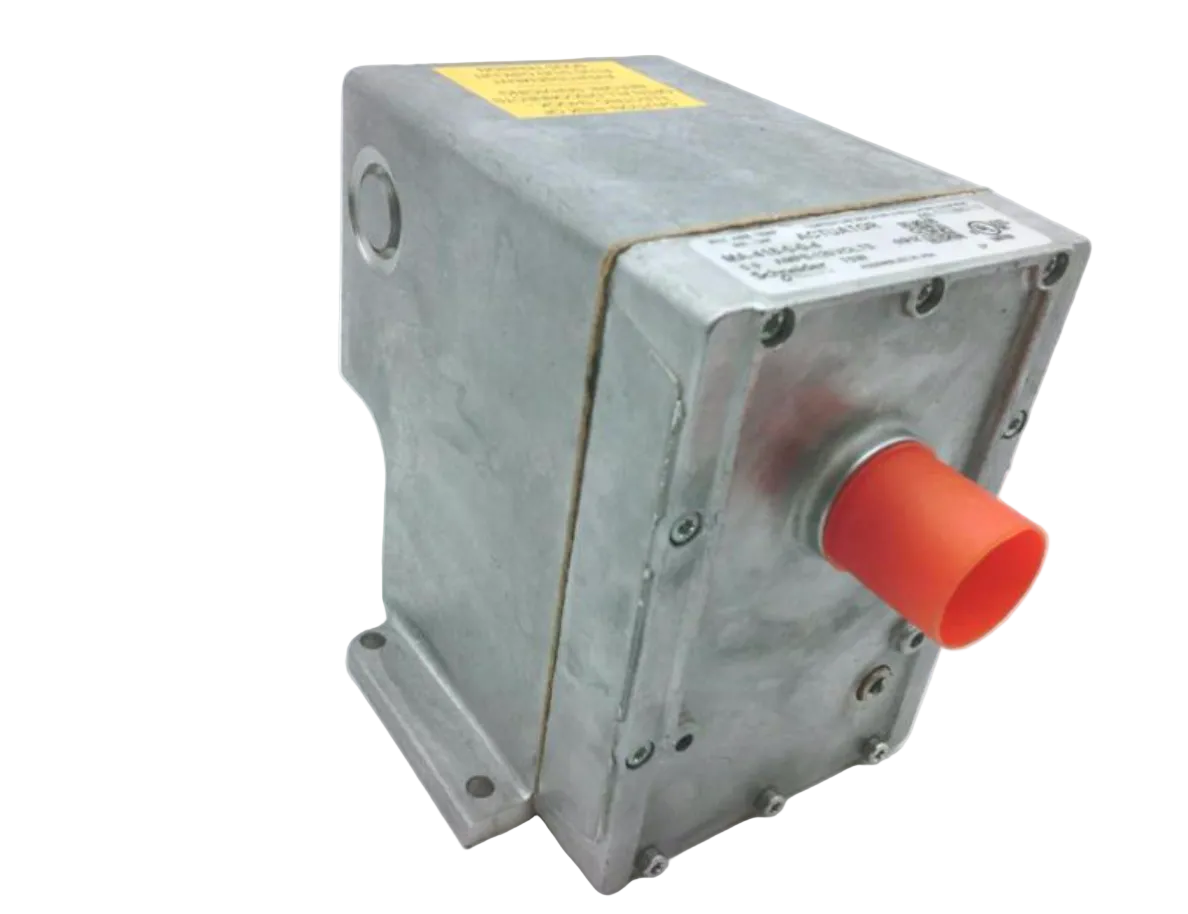

The Schneider Electric MA-418-0-0-4 is a two-position electric damper actuator designed for HVAC and industrial airflow control systems requiring reliable on/off positioning. This spring-return actuator delivers 60 in-lb torque at 120 VAC for robust damper movement and safe automatic return to a default position during power interruption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | MA-418-0-0-4 |
| Category | HVAC Controls |
| Subcategory | Damper Actuators |
| Control Signal | Two-Position (On/Off) |
| Voltage | 120 VAC, 60 Hz |
| Torque | 60 in-lb (≈6.78 Nm) |
| Spring Return | Yes (Fail-Safe) |
| Rotational Stroke | 180° CW with power applied, CCW spring return |
| Housing Material | Die-cast Aluminum |
| Wiring Connection | Terminal Block |
| Protection Rating | NEMA 1 (standard enclosure) |
| Operating Temp. | –40 °F to +136 °F (–40 °C to +57.7 °C) |
| Weight | Approx. 8.0 lb |
Information About MA-418-0-0-4
The MA-418-0-0-4 is part of Schneider Electric’s MA-400 series of two-position actuators built for HVAC dampers and similar equipment that needs fail-safe movement. It features a rugged die-cast aluminum housing that protects internal components while enabling simple terminal block wiring. The actuator uses a spring-return mechanism that rotates the damper to its default position if power is lost, improving safety in ventilation, fire, or smoke control applications. Compatible with standard SPST control devices, this model is optimized for horizontal shaft installation and meets common operational and environmental standards expected in commercial and industrial settings.
Key Features:
- Brand and Part: Schneider Electric MA-418-0-0-4 two-position actuator for HVAC and damper control.
- Control Type: Two-position (on/off) operation delivers straightforward damper positioning.
- Spring Return: Built-in spring mechanism automatically returns the actuator to its normal position upon power loss.
- Torque Output: 60 in-lb (≈6.78 Nm) torque ideal for medium duty dampers and valves.
- Voltage Rating: Operates at 120 VAC, 60 Hz suitable for standard building electrical systems.
- Rugged Construction: Die-cast aluminum housing and durable gear train improve longevity in industrial environments.
- Wide Temperature Range: Functions reliably between –40 °F and +136 °F (–40 °C to +57.7 °C).
- Easy Integration: Terminal block connections and compatibility with SPST controllers simplify installation.
The MA-418-0-0-4 delivers the reliability and precision required for dependable damper movement and fail-safe control in HVAC and air control systems.
Description
The Schneider Electric MA-418-0-0-4 is a two-position electric damper actuator designed for HVAC and industrial airflow control systems requiring reliable on/off positioning. This spring-return actuator delivers 60 in-lb torque at 120 VAC for robust damper movement and safe automatic return to a default position during power interruption.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | MA-418-0-0-4 |
| Category | HVAC Controls |
| Subcategory | Damper Actuators |
| Control Signal | Two-Position (On/Off) |
| Voltage | 120 VAC, 60 Hz |
| Torque | 60 in-lb (≈6.78 Nm) |
| Spring Return | Yes (Fail-Safe) |
| Rotational Stroke | 180° CW with power applied, CCW spring return |
| Housing Material | Die-cast Aluminum |
| Wiring Connection | Terminal Block |
| Protection Rating | NEMA 1 (standard enclosure) |
| Operating Temp. | –40 °F to +136 °F (–40 °C to +57.7 °C) |
| Weight | Approx. 8.0 lb |
Information About MA-418-0-0-4
The MA-418-0-0-4 is part of Schneider Electric’s MA-400 series of two-position actuators built for HVAC dampers and similar equipment that needs fail-safe movement. It features a rugged die-cast aluminum housing that protects internal components while enabling simple terminal block wiring. The actuator uses a spring-return mechanism that rotates the damper to its default position if power is lost, improving safety in ventilation, fire, or smoke control applications. Compatible with standard SPST control devices, this model is optimized for horizontal shaft installation and meets common operational and environmental standards expected in commercial and industrial settings.
Key Features:
- Brand and Part: Schneider Electric MA-418-0-0-4 two-position actuator for HVAC and damper control.
- Control Type: Two-position (on/off) operation delivers straightforward damper positioning.
- Spring Return: Built-in spring mechanism automatically returns the actuator to its normal position upon power loss.
- Torque Output: 60 in-lb (≈6.78 Nm) torque ideal for medium duty dampers and valves.
- Voltage Rating: Operates at 120 VAC, 60 Hz suitable for standard building electrical systems.
- Rugged Construction: Die-cast aluminum housing and durable gear train improve longevity in industrial environments.
- Wide Temperature Range: Functions reliably between –40 °F and +136 °F (–40 °C to +57.7 °C).
- Easy Integration: Terminal block connections and compatibility with SPST controllers simplify installation.
The MA-418-0-0-4 delivers the reliability and precision required for dependable damper movement and fail-safe control in HVAC and air control systems.
