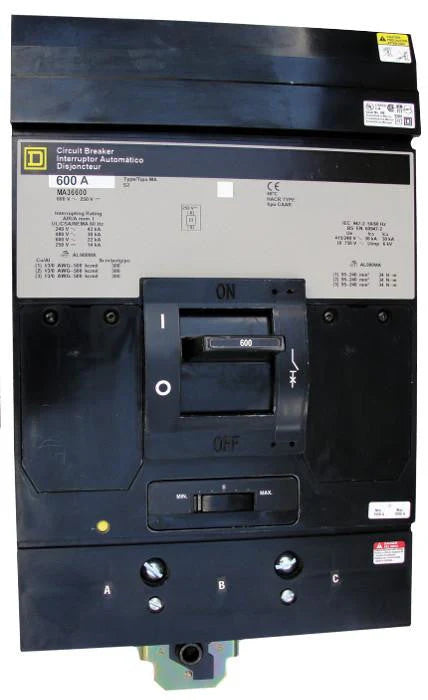

MA36600 | Schneider Electric Molded Case Circuit Breaker
- Regular price
- $3,780.00
- Sale price
- $3,780.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MA36600
Description
The MA36600 is a Molded Case Circuit Breaker manufactured by Square D, specifically designed for I-Line installations. It belongs to the MA series, featuring a 3-pole configuration with an ABC phase connection. This circuit breaker is suitable for 3-phase systems with a rating of 600A at 600V. It offers a standard interrupting capacity of 30kA at 480V. The MA36600 is of the I-Line Style Plug-In type and comes complete with non-interchangeable trip functions, including Long-Time (L) and Instantaneous (I) trip features. It operates as a Thermal Magnetic molded case circuit breaker.
Technical Specifications
|
Part Number |
MA36600 |
|
Manufacturer |
Square D |
|
Sub-Category |
Molded Case |
|
Family |
I-Line |
|
Type |
MA |
|
Voltage |
600 |
|
Amperage |
600 |
|
Protection |
Thermal Magnetic |
|
AIC Rating |
30kA@480V |
|
Frame Type |
M Frame |
|
Functions |
LI - Long-Time and Instantaneous |
|
Poles |
3 |
|
Connection |
I-Line Style Plug-In |
|
Phase |
3 |
Information About MA36600
The MA36600 is a Molded Case Circuit Breaker manufactured by Square D. It belongs to the I-Line series and is categorized as type MA. This circuit breaker features a 3-pole configuration with an ABC phase connection, suitable for 3-phase systems. It operates at a voltage of 600V and has an amperage rating of 600A.
With a thermal magnetic protection mechanism, the MA36600 offers an AIC (Available Interrupting Current) rating of 30kA at 480V, providing standard interrupting capacity. It is constructed with an M Frame type for durability and reliability.
The MA36600 is designed with LI (Long-Time) and Instantaneous trip functions, ensuring efficient and precise protection against overloads and short circuits. These trip functions are non-interchangeable, guaranteeing consistent performance.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
