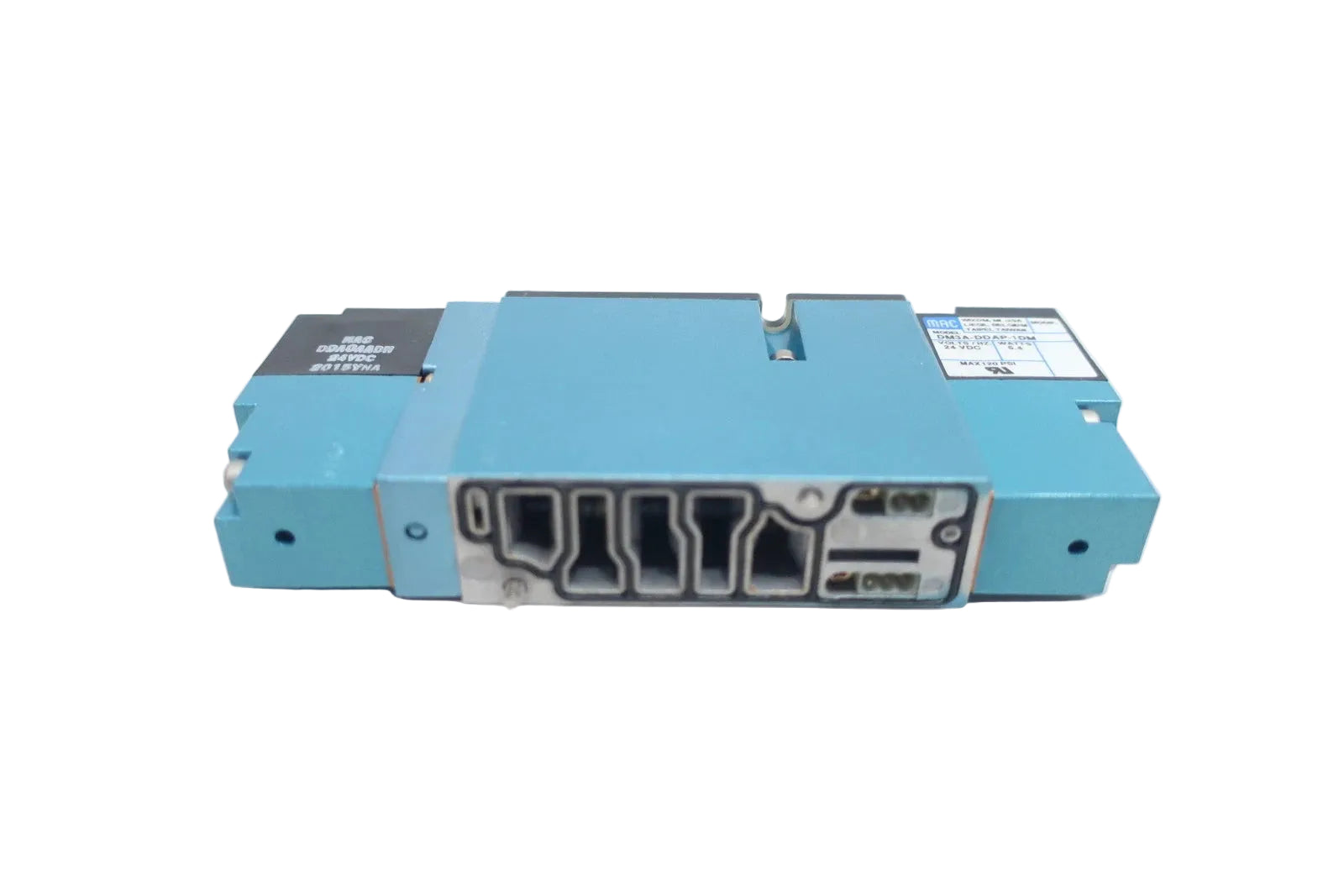

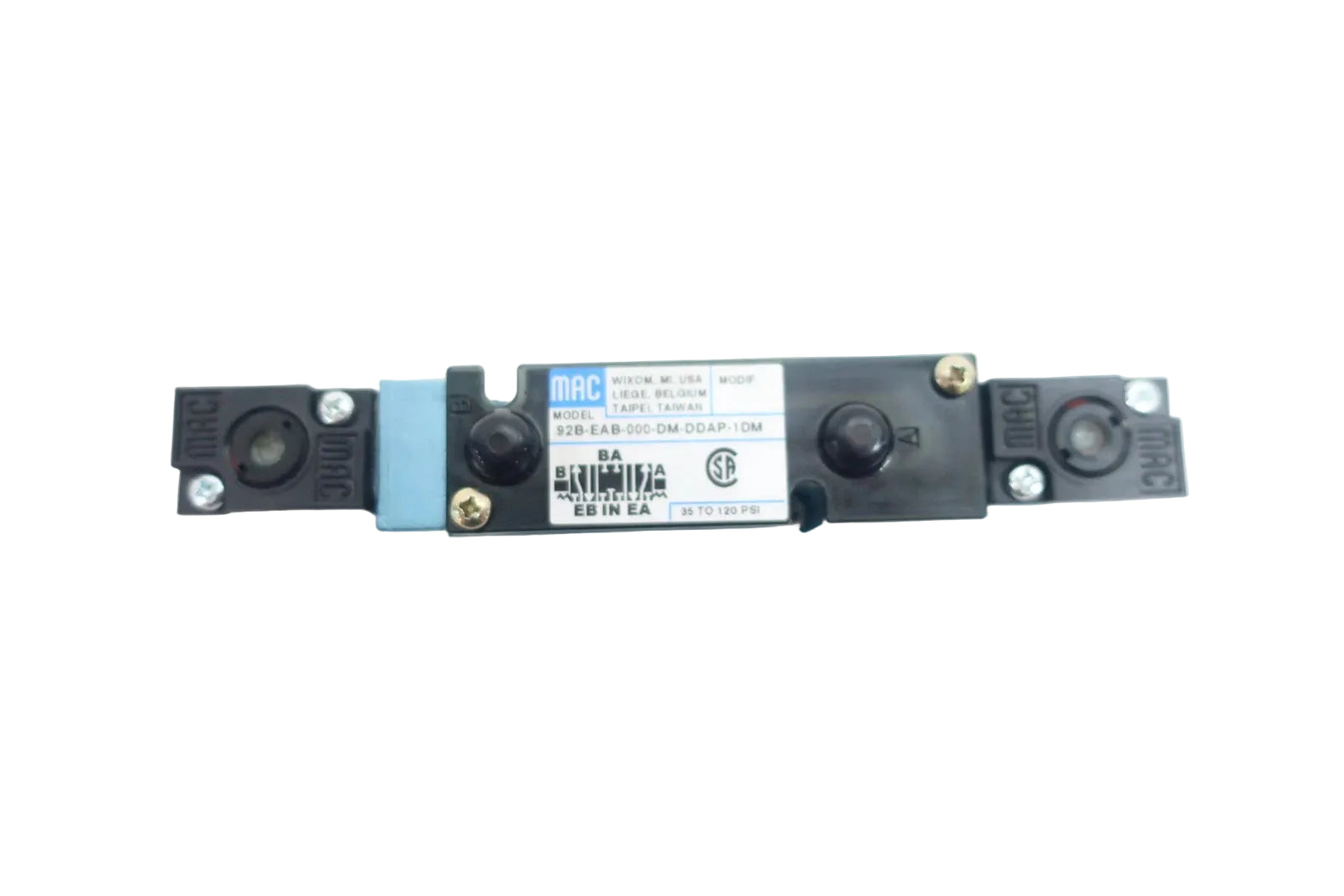

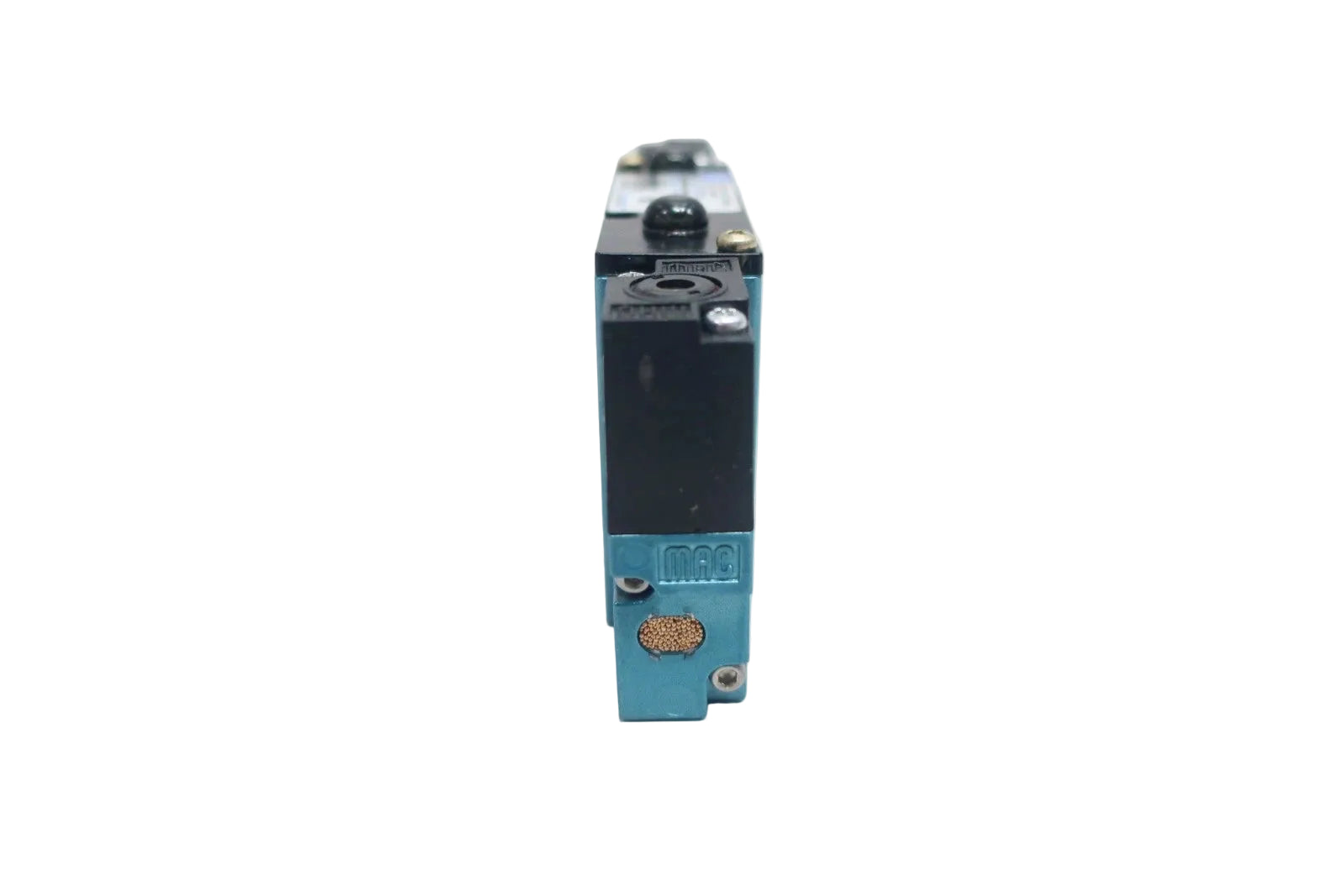

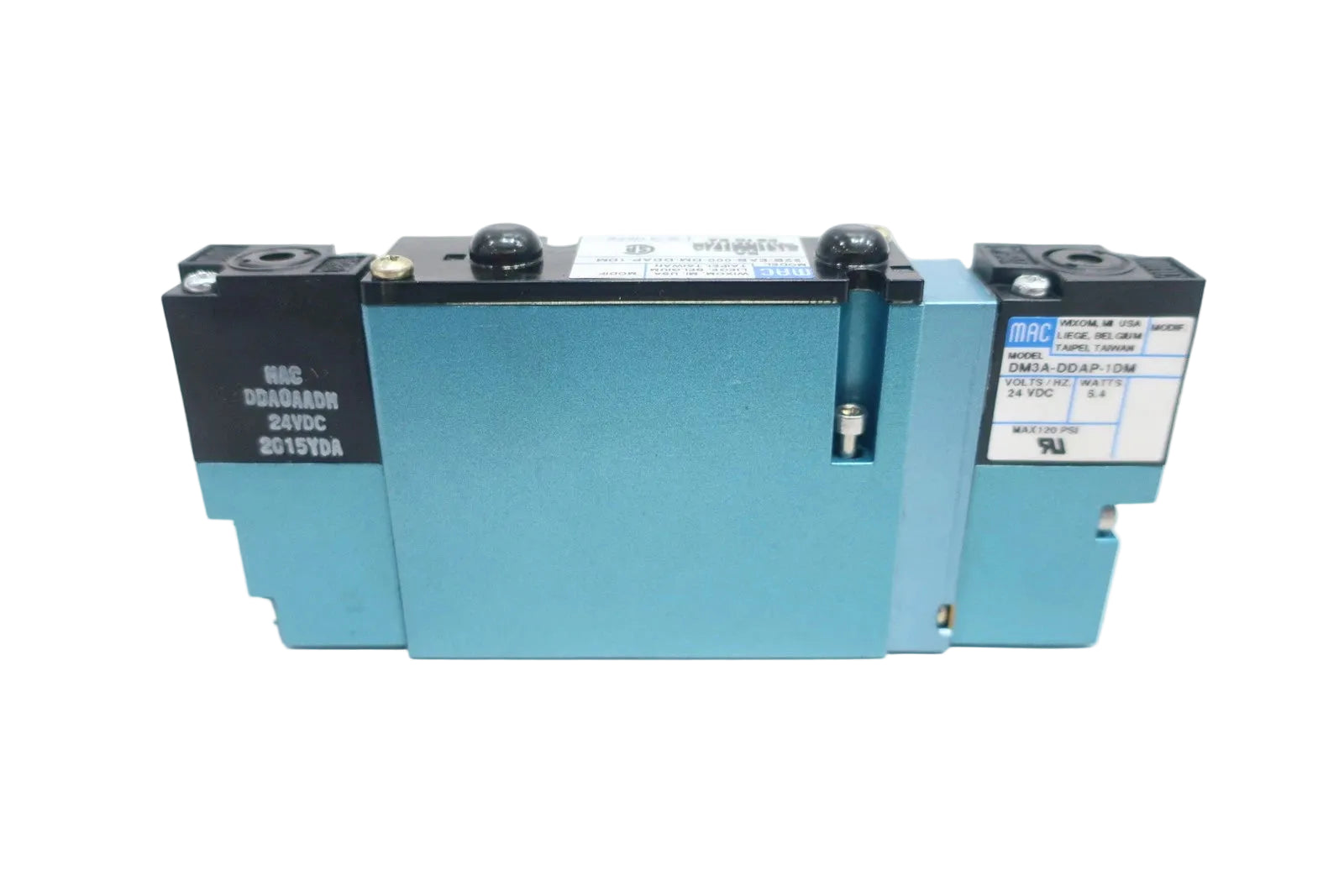

92B-EAB-000-DM-DDAP-1DM | MAC Valves 92 Series 5/3 Double Solenoid Valve 24VDC
- Regular price
- $389.00
- Sale price
- $389.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 92B-EAB-000-DM-DDAP-1DM
Description
The MAC Valves 92B-EAB-000-DM-DDAP-1DM is a 5/3-way double solenoid spool valve from the 92 Series, designed for precise directional control in pneumatic systems. Operating at 24VDC with 5.4 W power consumption, it features a closed center configuration to maintain actuator position when de-energized. This base-mounted valve supports compressed air, inert gases, or vacuum applications within a pressure range of 35 to 120 psi.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | MAC Valves |
| Category | Pneumatics |
| Part Number | 92B-EAB-000-DM-DDAP-1DM |
| Subcategory | Solenoid Valves |
| Series | 92 Series |
| Valve Function | 5/3-Way, Closed Center |
| Actuation Type | Double Solenoid |
| Design | Spool Valve with Built-in Auxiliary Pilot |
| Operating Medium | Compressed Air, Inert Gases, or Vacuum |
| Operating Pressure | 35 to 120 psi |
| Control Voltage | 24 VDC |
| Power Consumption | 5.4 W |
| Coil Class | Class A |
| Electrical Connection | Plug-in, 8" (20 cm) Flying Leads |
| Manual Operator | Non-Locking Recessed |
| Exhaust Type | Muffled Pilot Exhaust |
| Mounting Mode | Valve Less Base (Plug-in Body) |
| Ambient Operating Temperature | -18 °C to +50 °C |
| Dimensions | Height 125 mm x Depth 170 mm (Width varies by sub-base) |
| Weight | Approx. 1.8 kg |
Information About 92B-EAB-000-DM-DDAP-1DM
The 92B-EAB-000-DM-DDAP-1DM is a double solenoid piloted spool valve (Revision B) engineered for industrial automation and motion control systems. Built with an integrated auxiliary pilot valve and muffled pilot exhaust, it ensures stable switching performance while minimizing noise. The valve incorporates a non-locking recessed manual operator and visual position indicator, providing functional status verification and manual actuation capability. Designed for plug-in control connection with pre-wired 8-inch flying leads, it operates on 24VDC and is suitable for compressed air, inert gases, or vacuum without requiring lubrication under specified conditions.
Key Features:
- 5/3-Way Closed Center Configuration: Maintains actuator position when both solenoids are de-energized.
- Double Solenoid Operation: Provides precise bidirectional control of pneumatic actuators.
- 24VDC Coil (5.4 W): Efficient low-power consumption suitable for industrial control circuits.
- Muffled Pilot Exhaust: Reduces operational noise during valve switching.
- Non-Locking Recessed Manual Operator: Allows manual override without unintended locking.
- Plug-In Electrical Connection: Pre-wired 8" (20 cm) cable with bare flying leads for simplified installation.
- Wide Pressure Range: Operates from 35 to 120 psi for flexible system integration.
- Visual Position Indicator: Integrated indicator light for operational status monitoring.
The 92B-EAB-000-DM-DDAP-1DM delivers the reliability and precision required for controlled directional pneumatic actuation in automated machinery and industrial systems.
