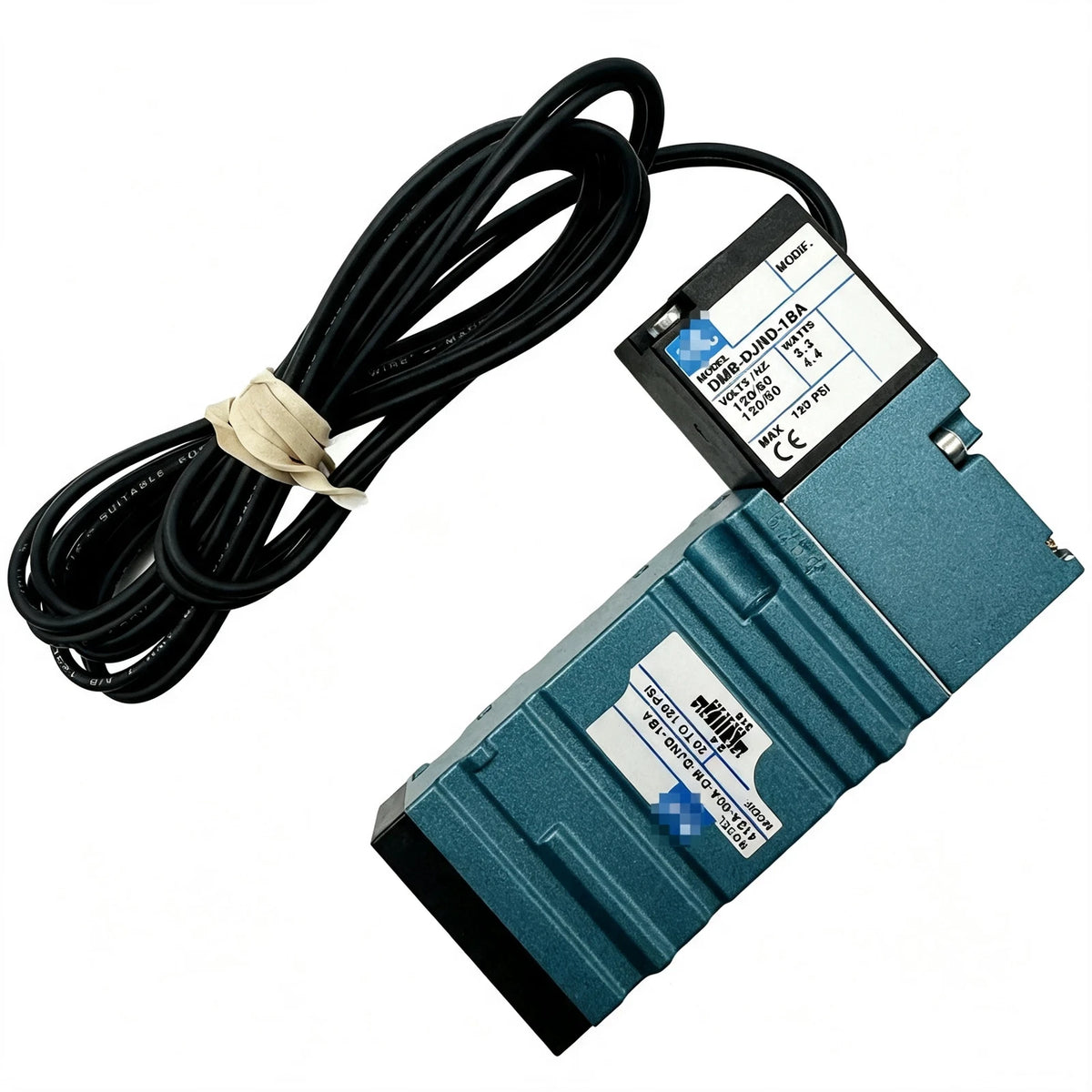

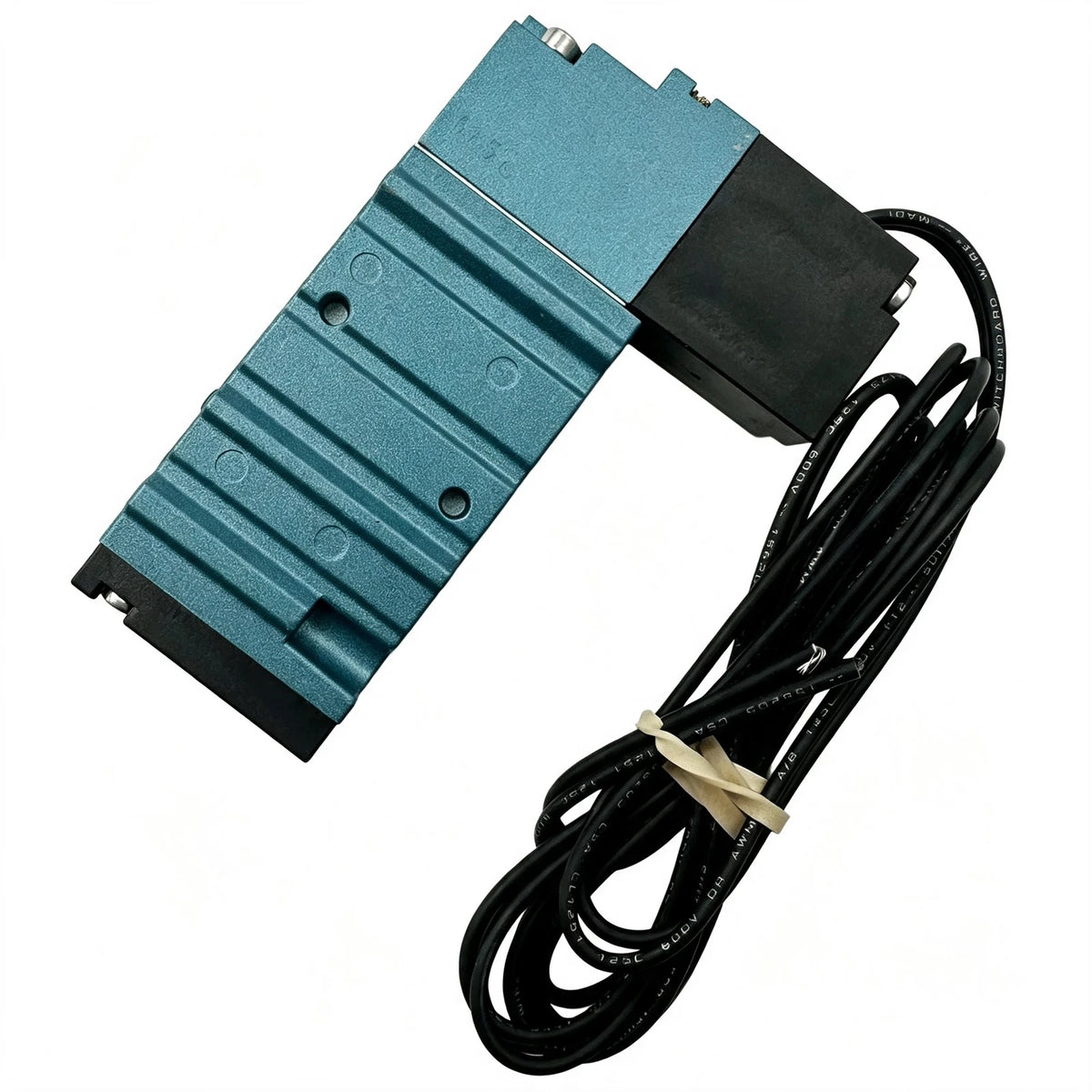

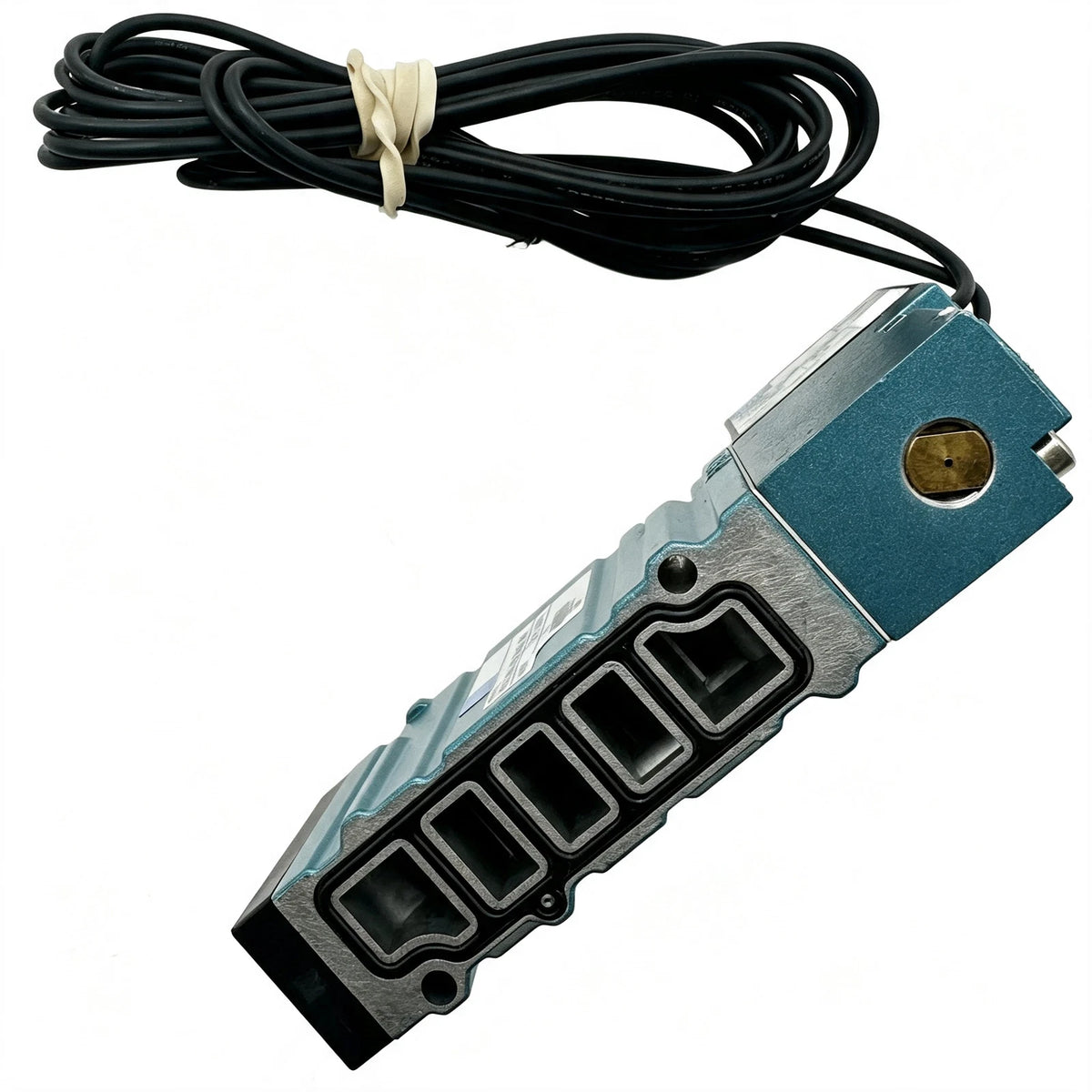

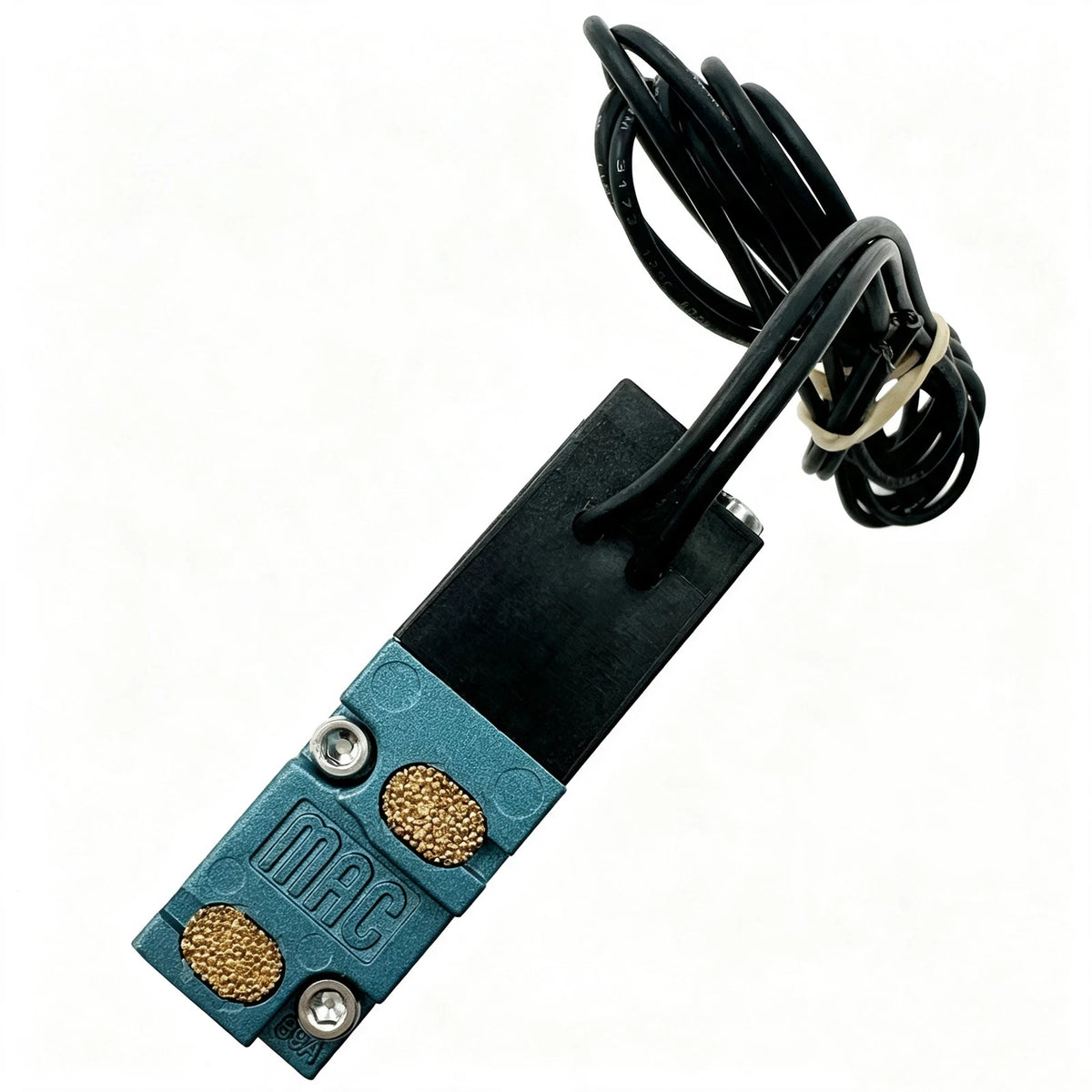

MAC Valves Inc. 413A-00A-DM-DJND-1BA Series 400 Solenoid Valve
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 413A-00A-DM-DJND-1BA
Description
The MAC Valves Inc. 413A-00A-DM-DJND-1BA is a Series 400 pneumatic solenoid valve designed to control the direction of compressed-air flow in industrial automation systems. Its 5/2-way, single-operator configuration switches air between working ports to operate compatible pneumatic actuators. The valve features a 48-inch wire length, flying-lead electrical connection, and recessed non-locking manual operator for maintenance and control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | MAC Valves Inc. |
| Category | Pneumatic Components |
| Part Number | 413A-00A-DM-DJND-1BA |
| Subcategory | Pneumatic Solenoid Valves |
| Product Series | Series 400 |
| Product Type | Solenoid-Operated Directional Control Valve |
| Valve Function | 5/2-way |
| Operator Configuration | Single operator |
| Pilot Configuration | Internal pilot; catalog-format interpretation |
| Maximum Flow Coefficient | 1.0 Cv (Series 400 catalog specification) |
| Wire Length | 48 in |
| Electrical Connection | Flying leads |
| Manual Operator | Recessed, non-locking |
| Port Size | Series range: 1/8–1/4 in; exact variant to verify |
| Weight | 0.27 lb |
Information About 413A-00A-DM-DJND-1BA
The 413A-00A-DM-DJND-1BA belongs to MAC Valves' Series 400, which uses a balanced spool design and a pilot mechanism to provide reliable directional switching. The 5/2-way configuration has five ports and two switching positions, with a single solenoid operator controlling the valve. The model code identifies an internal-pilot, valve-only configuration in MAC's catalog format, while the suffix specifies the operator and electrical connection details. The exact coil voltage and connector-code interpretation should be confirmed against the product nameplate or the manufacturer's configuration documentation before wiring.
Key Features:
-
Series 400 Design: Designed for industrial pneumatic directional-control applications.
-
5/2-Way Operation: Provides five ports and two switching positions.
-
Single Solenoid Operator: Uses one electrical operator to actuate the valve.
-
Balanced Spool Design: Helps maintain switching performance despite variations in operating pressure.
-
Pilot-Operated Switching: Uses a pilot mechanism to actuate the main valve.
-
High-Flow Design: The Series 400 catalog lists a maximum flow coefficient of 1.0 Cv.
-
48-Inch Wire Length: Provides an extended lead length for electrical installation.
-
Flying-Lead Connection: Allows connection to compatible control wiring.
-
Manual Override: Includes a recessed, non-locking manual operator for servicing and testing.
The 413A-00A-DM-DJND-1BA delivers directional pneumatic control for compatible industrial automation and actuator systems.
