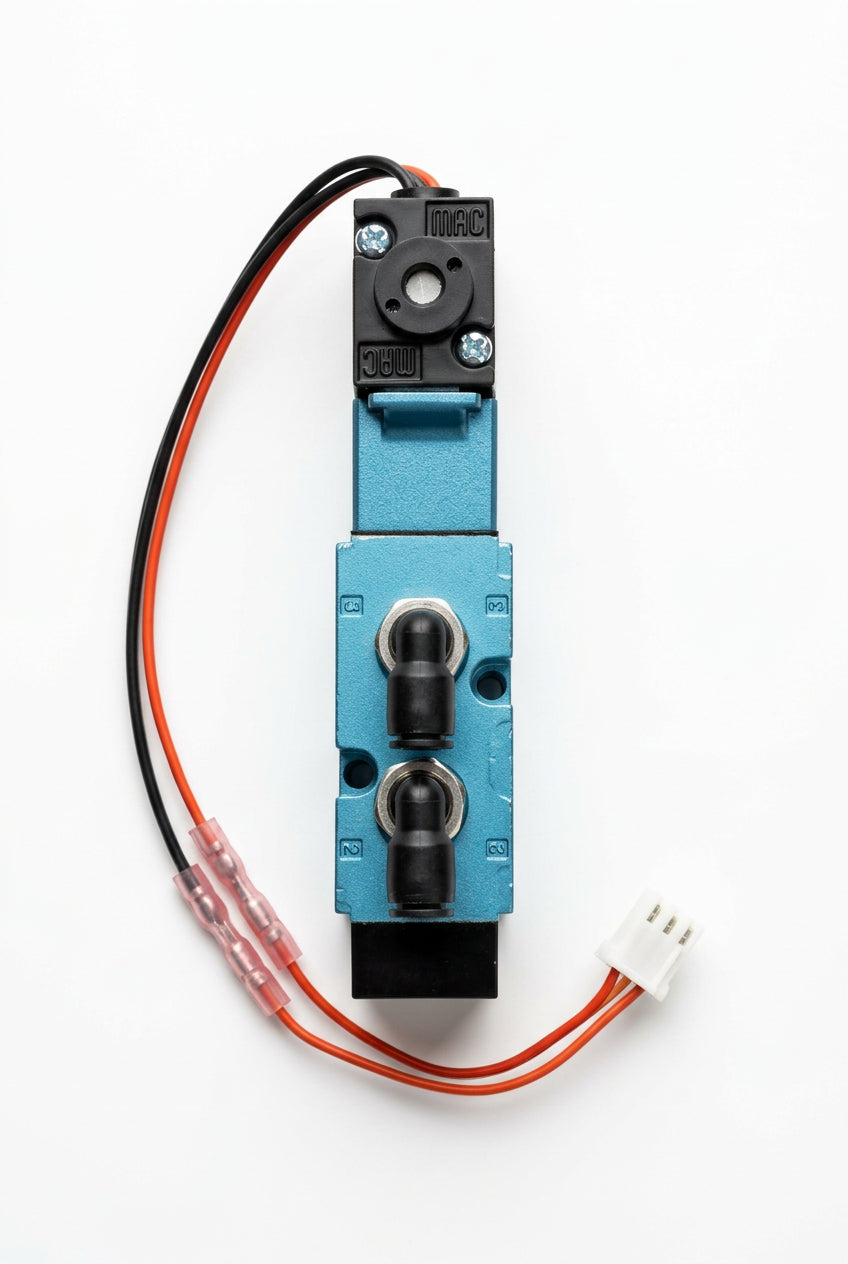

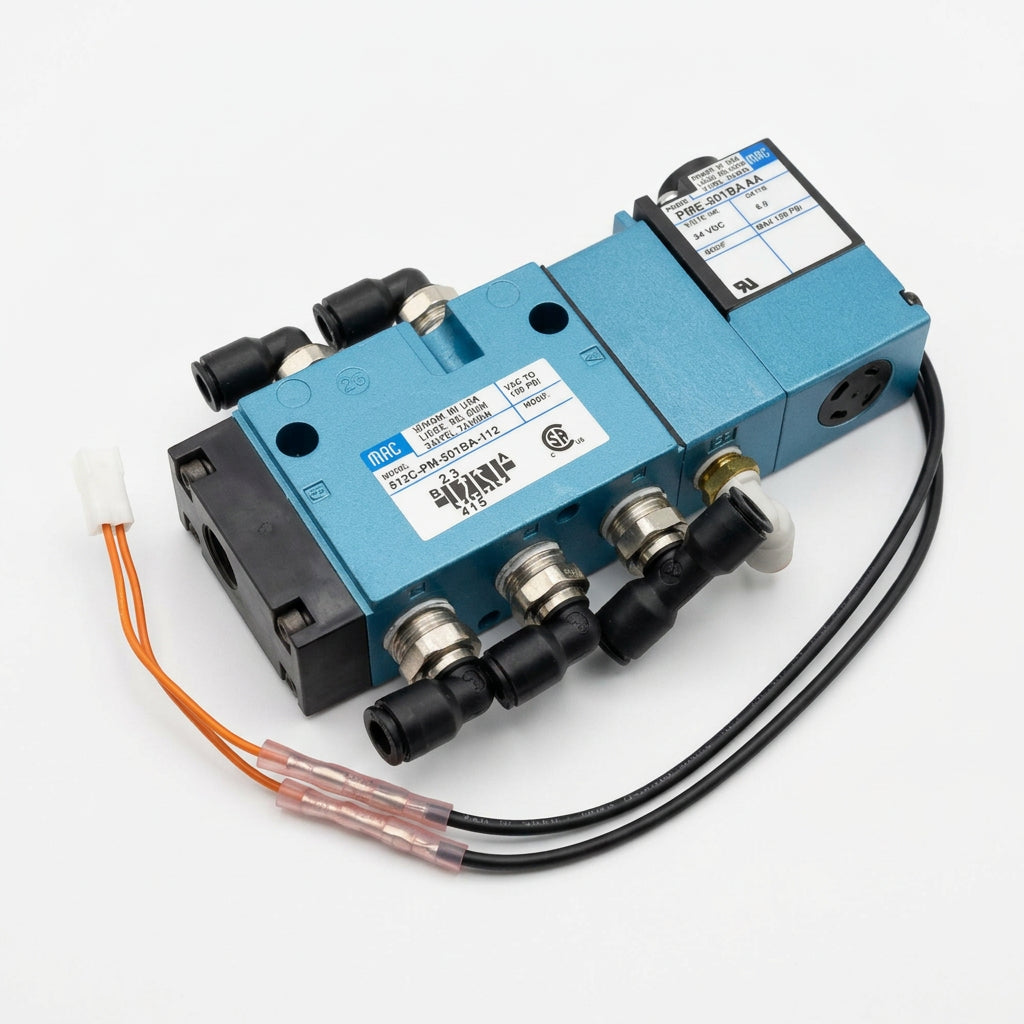

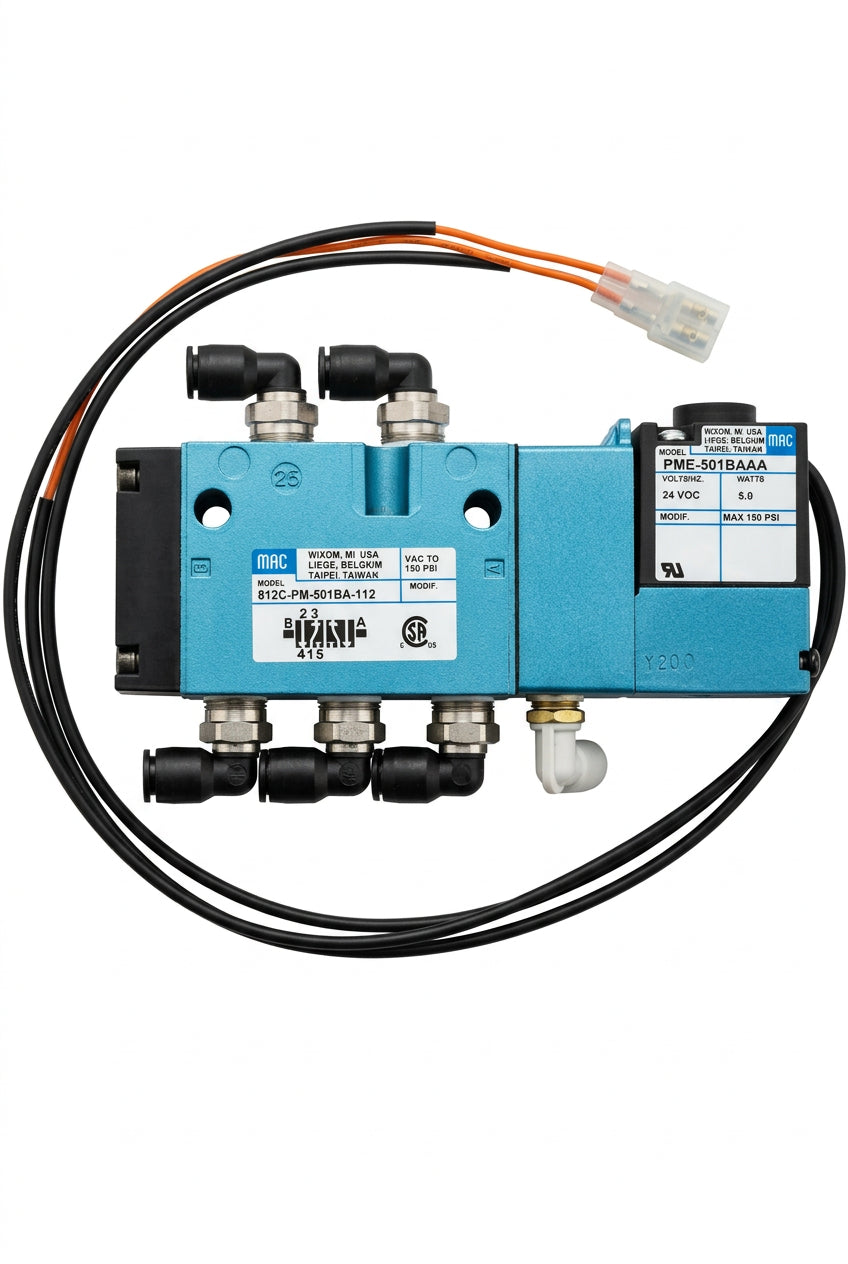

MAC Valves Inc 812C-PM-501BA-112 24V DC Solenoid Valve
- Regular price
- $482.00
- Sale price
- $482.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 812C-PM-501BA-112
Description
The MAC Valves Inc 812C-PM-501BA-112 is an 800 Series pneumatic solenoid valve designed to control the direction of compressed air in industrial automation systems. It features a single 24 V DC solenoid, external pilot operation, and 1/4-inch NPTF ports for integration into compatible pneumatic circuits. Its balanced spool design supports directional switching in machinery and automated production equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | MAC Valves Inc. |
| Category | Pneumatic Equipment |
| Part Number | 812C-PM-501BA-112 |
| Subcategory | Pneumatic Solenoid Valves |
| Product Series | 800 Series |
| Valve Type | Four-way balanced piloted spool valve |
| Solenoid Configuration | Single solenoid |
| Operating Voltage | 24 V DC |
| Coil Power | 6 W |
| Pilot Type | External pilot |
| Valve Position | Two-position, single-pressure configuration |
| Port Size | 1/4 in NPTF |
| Manual Operator | Non-locking, recessed |
| Electrical Connection | Flying leads, approximately 18 in |
| Weight | 0.99 lb |
Information About 812C-PM-501BA-112
The 812C-PM-501BA-112 belongs to MAC Valves' 800 Series of four-way balanced piloted spool valves. It uses a single solenoid with a 24 V DC, 6 W coil and an external pilot-air supply to actuate the valve. The configuration includes a non-locking recessed manual operator and flying-lead electrical connections approximately 18 inches long. Its individual valve body has 1/4-inch NPTF ports and is designed for compatible pneumatic control applications.
Key Features:
-
800 Series Valve: Part of MAC Valves' industrial pneumatic valve range.
-
Four-Way Directional Control: Routes compressed air between connected pneumatic ports.
-
Single Solenoid: Uses one electrical coil to actuate the valve.
-
24 V DC Coil: Operates at 24 V DC with a rated coil power of 6 W.
-
External Pilot Operation: Uses an external pilot-air supply for valve actuation.
-
Balanced Spool Design: Uses a balanced piloted spool configuration.
-
Manual Override: Includes a non-locking recessed manual operator.
-
Flying-Lead Connection: Supplied with flying leads approximately 18 inches long.
-
1/4-Inch NPTF Ports: Supports connection to compatible threaded pneumatic lines.
The 812C-PM-501BA-112 delivers directional pneumatic control for compatible industrial machinery and automation systems.
