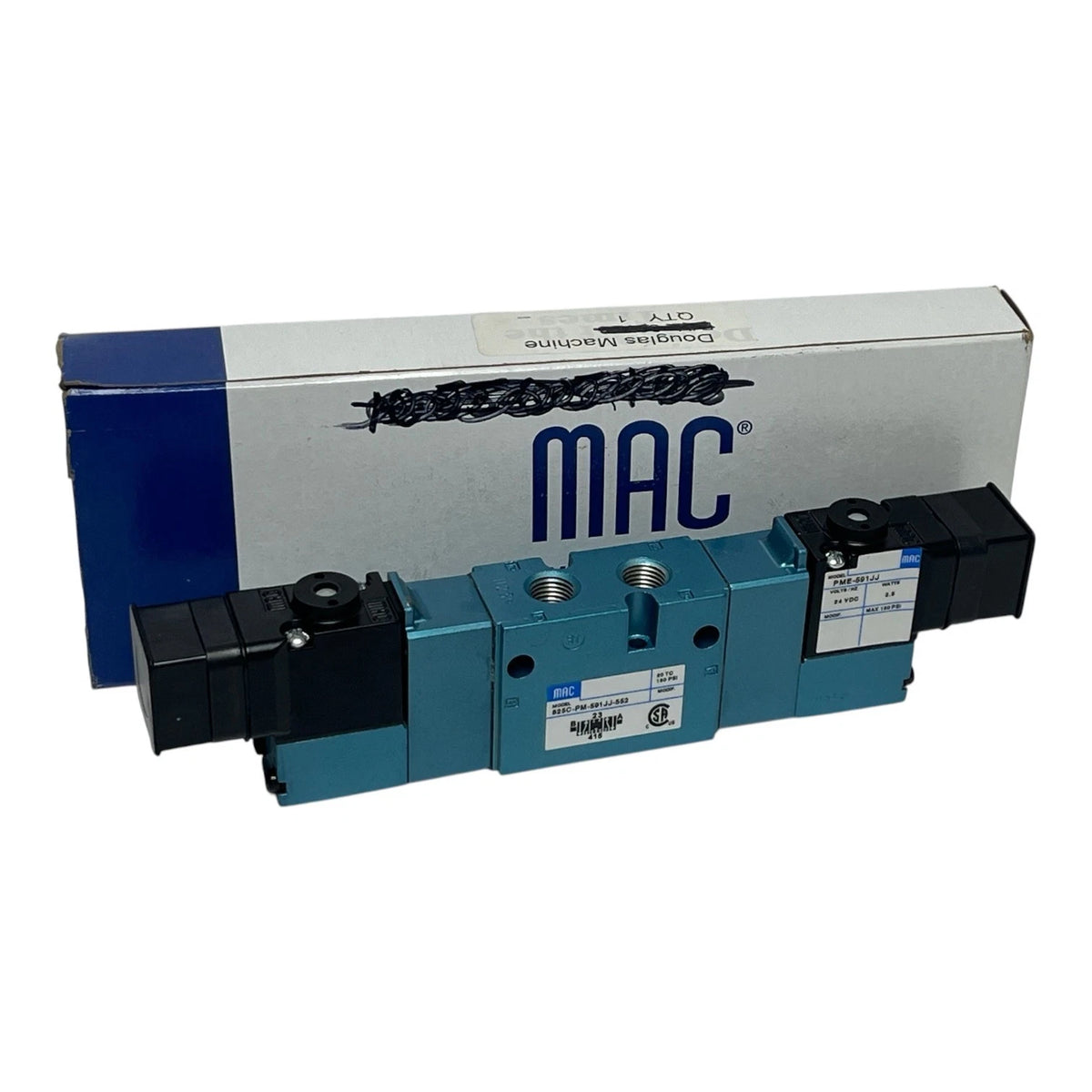

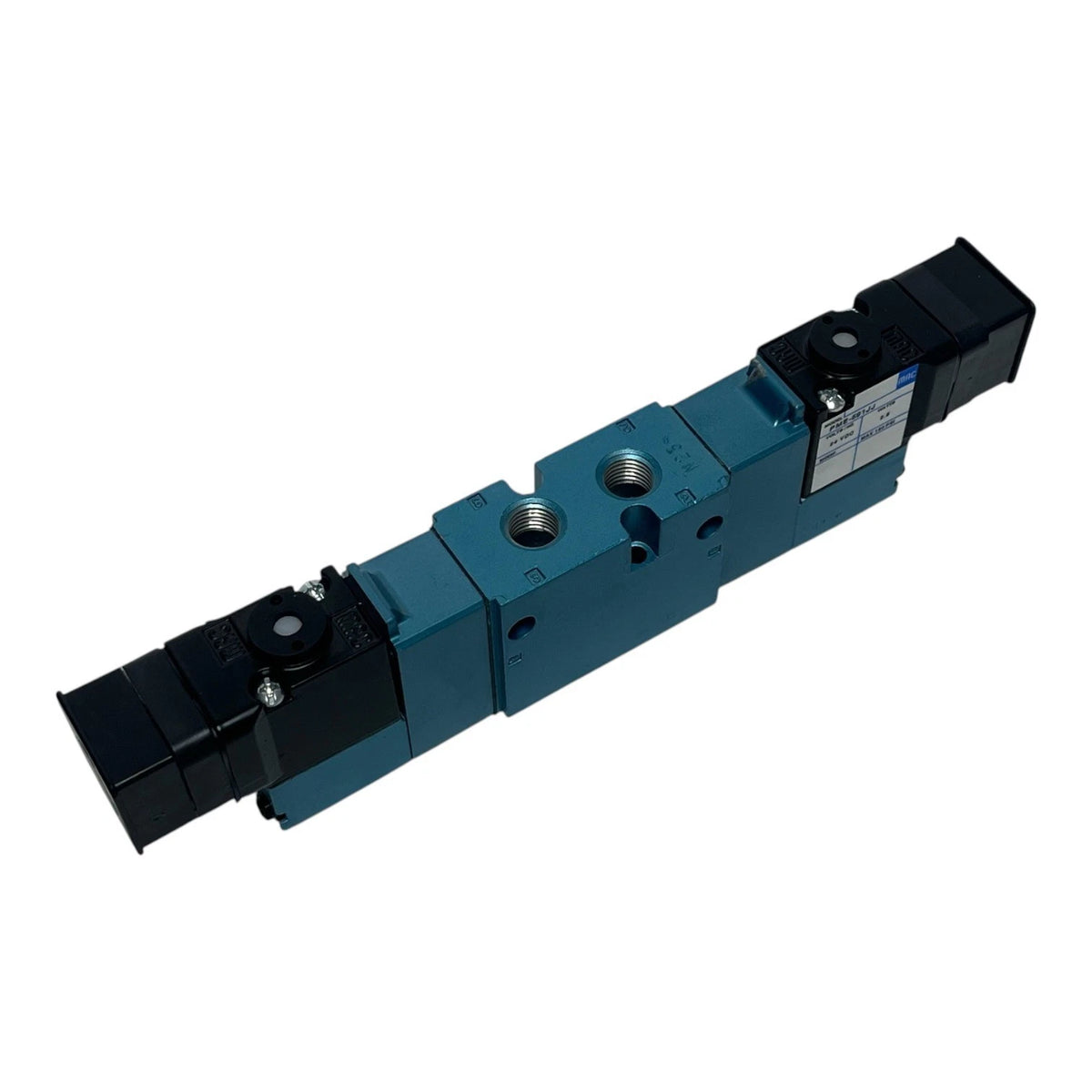

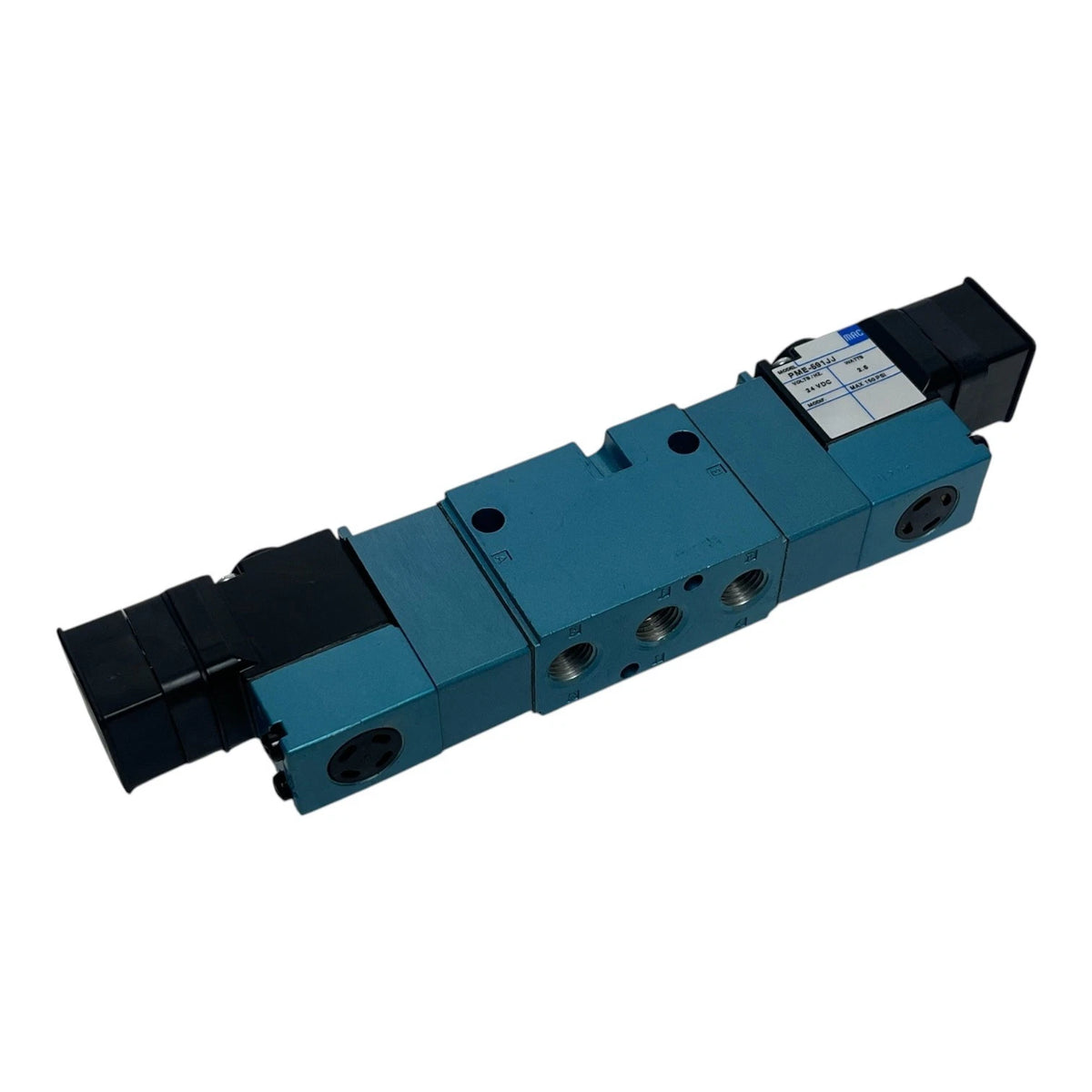

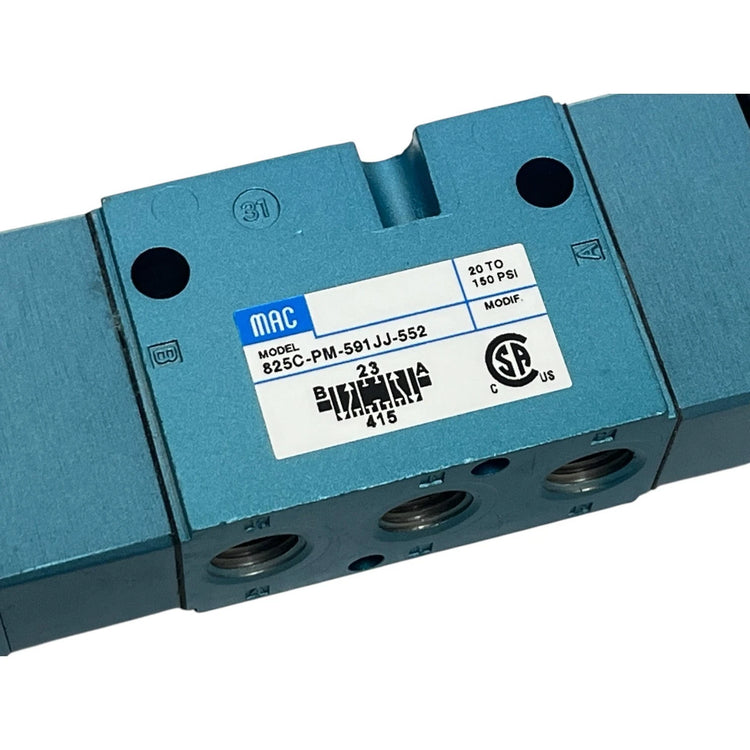

MAC Valves Inc. 825C-PM-591JJ-552 5/3-Way Solenoid Valve
- Regular price
- $477.00
- Sale price
- $477.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 825C-PM-591JJ-552
Description
The MAC Valves Inc. 825C-PM-591JJ-552 is a Series 800 pneumatic solenoid valve designed to control compressed-air flow in industrial automation systems. It features a 5/3-way, double-solenoid configuration with a closed-center spool arrangement and a 24 V DC, 2.5 W coil. Its 1/4-inch NPTF port configuration and individual-mounting design make it suitable for compatible pneumatic control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | MAC Valves Inc. |
| Category | Pneumatic Components |
| Part Number | 825C-PM-591JJ-552 |
| Subcategory | Pneumatic Solenoid Valves |
| Product Series | Series 800 |
| Valve Function | 5/3-way directional valve |
| Solenoid Configuration | Double solenoid |
| Center Position | Closed center |
| Pilot Type | Internal pilot |

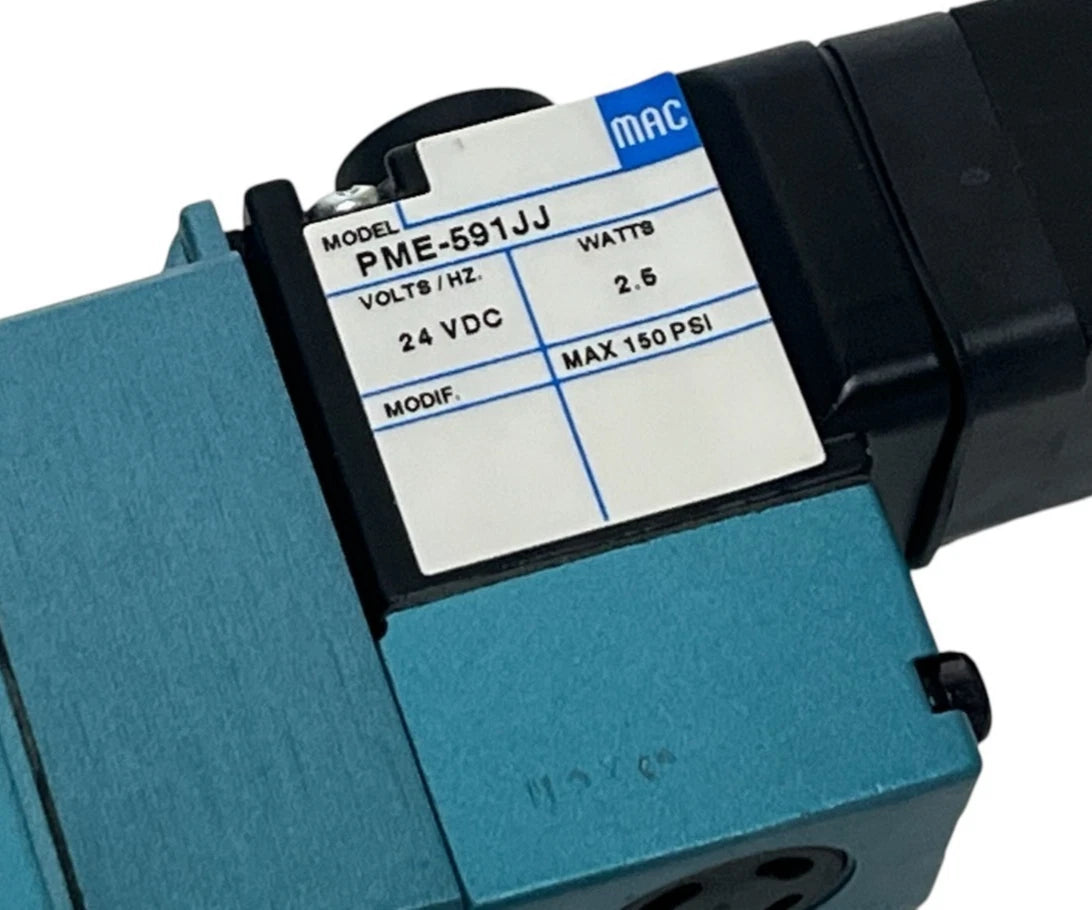

| Coil Voltage | 24 V DC |
| Coil Power | 2.5 W |
| Port Size | 1/4 in NPTF |
| Manual Operator | Recessed, non-locking |
| Electrical Connector | Square connector, male contacts (supplier-listed) |
| Maximum Flow | 1.4 Cv (Series 800 catalog rating) |
| Operating Medium | Compressed air |
| Weight | 1.00 lb |
Information About 825C-PM-591JJ-552
The 825C-PM-591JJ-552 belongs to MAC Valves’ Series 800 range of direct-solenoid and solenoid-pilot-operated directional valves. Its double-solenoid, three-position design allows the valve to switch between operating positions, while the closed-center configuration blocks the main working ports in the center position. The valve uses internal pilot air and is listed with a 24 V DC, 2.5 W solenoid configuration. Its connector style and manual-operator details should be matched to the existing installation before replacement.
Key Features:
-
Series 800 Design: Part of MAC Valves’ industrial pneumatic valve range.
-
5/3-Way Directional Control: Provides three switching positions and five ports.
-
Double-Solenoid Operation: Uses two solenoids to control valve position.
-
24 V DC Coil: Operates with a specified 24 V DC electrical supply.
-
2.5 W Coil Power: Supports low-power solenoid actuation.
-
Closed-Center Configuration: Blocks the main working ports in the center position.
-
Internal Pilot: Uses internally supplied pilot air to operate the valve mechanism.
-
1/4-Inch NPTF Ports: Designed for compatible threaded pneumatic connections.
-
Manual Override: Features a recessed, non-locking manual operator.
-
Square Connector: Supplier documentation identifies a square electrical connector with male contacts.
The 825C-PM-591JJ-552 delivers directional air control for compatible industrial pneumatic automation systems.
