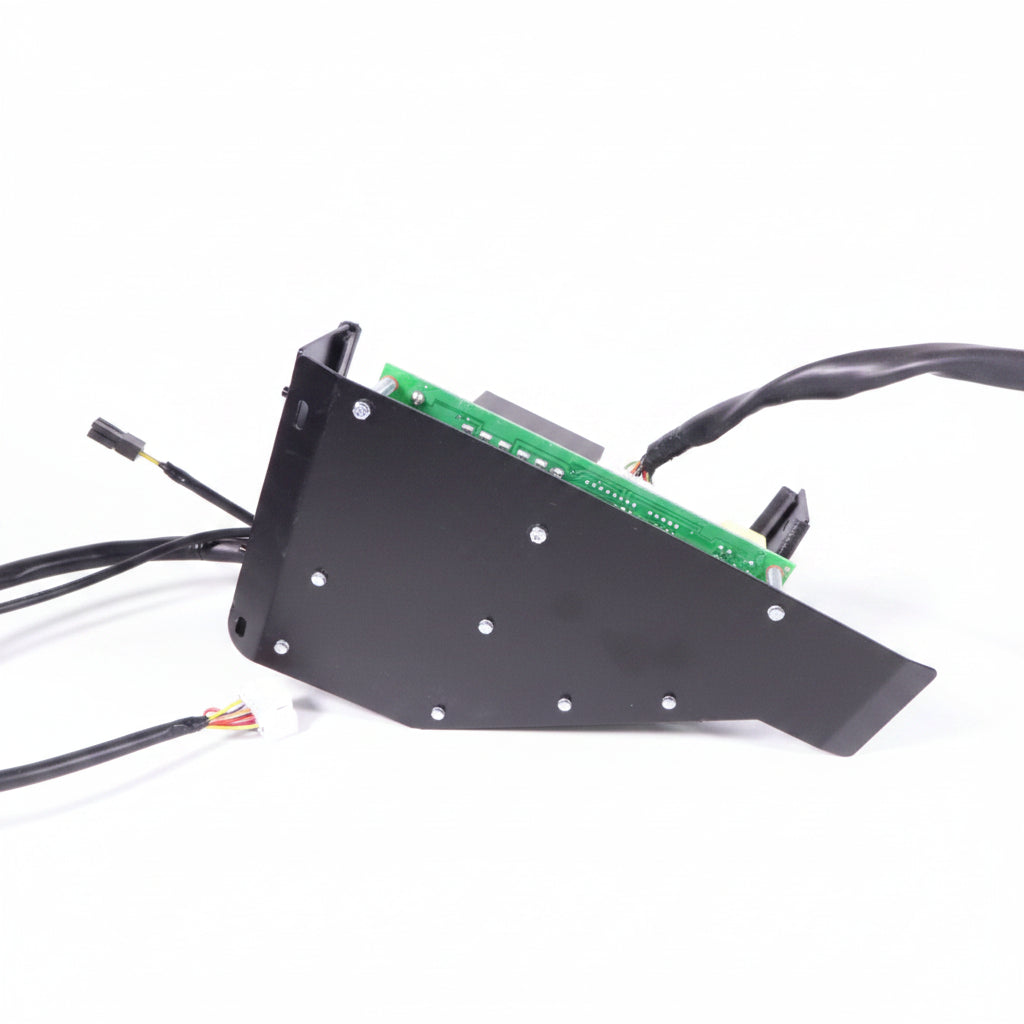

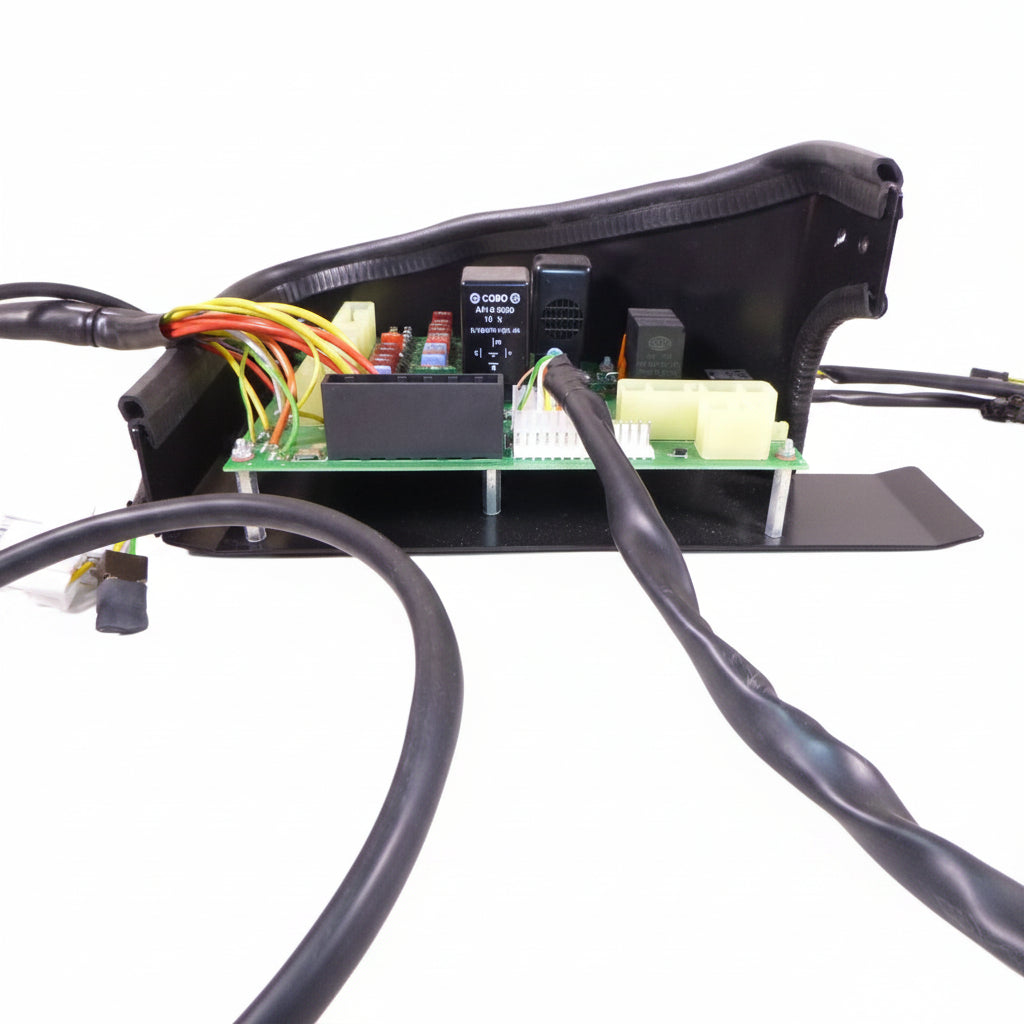

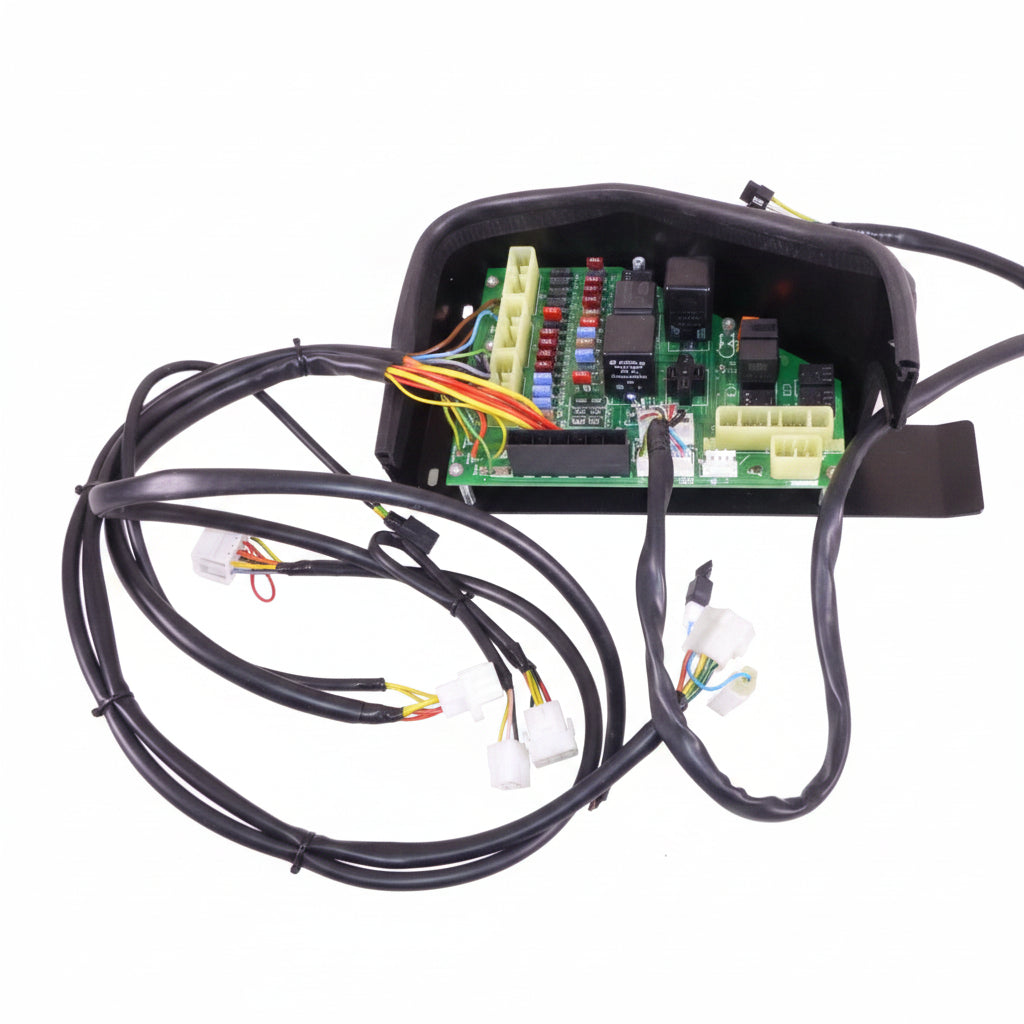

Manitou 241796 Fuse Board with Fuses and Relays 241678 for Telehandlers
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 241796
Description
The Manitou 241796 is a complete fuse and relay board assembly designed for electrical power distribution and circuit protection in compatible Manitou material-handling equipment. The assembly incorporates the 241678 printed circuit board together with the associated fuses and relays required for machine electrical circuits. Manitou parts documentation identifies 241796 as the complete “plate relay and fuses” assembly.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Manitou |
| Category | Electrical Components |
| Part Number | 241796 |
| Subcategory | Fuse and Relay Boards |
| Included Circuit Board | 241678 |
| Assembly Components | Printed Circuit Board, Fuses, Relays |
| Primary Function | Electrical Power Distribution and Circuit Protection |
| Secondary Function | Relay Switching |
| Published Compatibility | MT 1030 S, MT 1033 H L Turbo, MLT 740 Turbo |
| Additional Compatibility | MLT 526 Series |
| Equipment Type | Telehandler / Material Handling Equipment |
| Weight | Approx. 3 kg (6.61 lbs) |
Information About 241796
The 241796 is a complete electrical fuse and relay panel used within compatible Manitou telehandlers and material-handling machines. Its construction combines the 241678 printed circuit with installed fuses and relays to provide centralized electrical distribution, protection, and switching functions. Manitou documentation lists applications including the MT 1030 S, MT 1033 H L Turbo, and MLT 740 Turbo, while additional catalogs show use across MLT 526 variants. The 241796 assembly supersedes reference 236016, while the incorporated 241678 printed circuit supersedes reference 233882.
Key Features:
- Complete Electrical Board: Combines the circuit board, fuses, and relays into one integrated assembly.
- Fuse Protection: Provides centralized overcurrent protection for applicable machine electrical circuits.
- Relay Integration: Incorporates electrical relays for switching and control functions.
- 241678 Circuit Board: Includes the Manitou 241678 printed circuit as a primary component of the assembly.
- Power Distribution: Routes electrical power to designated circuits within compatible Manitou equipment.
- Telehandler Application: Designed for compatible Manitou telescopic handlers and related material-handling machines.
- OEM Part Identification: Manitou documentation identifies 241796 specifically as the relay and fuse plate.
- Multiple Model Applications: Documented for machines including MT 1030 S, MT 1033 H L Turbo, MLT 740 Turbo, and MLT 526 variants.
The 241796 delivers the reliability and precision required for electrical circuit protection, power distribution, and relay switching in compatible Manitou equipment.
