MAX-4/11/03/032/99/1/1/00 | Schneider Electric Servo Drive/Servo Control

Description

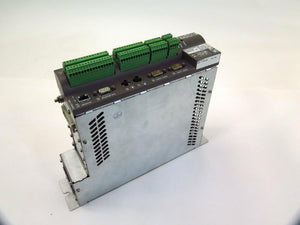

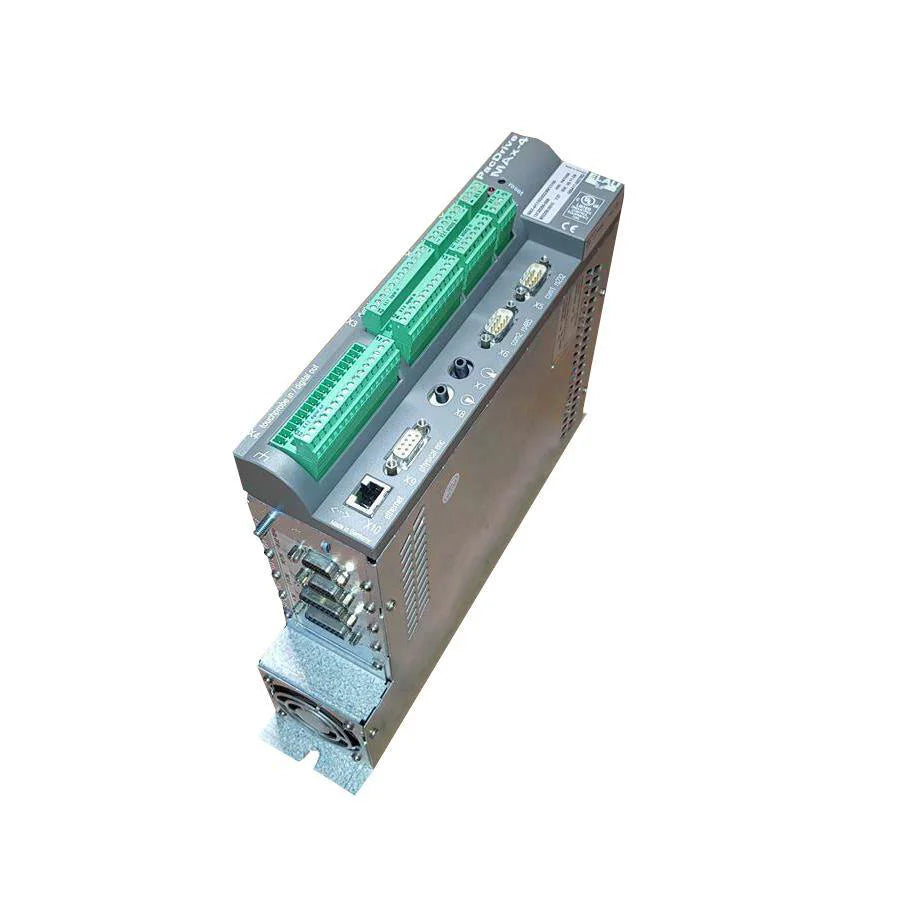

Part MAX-4/11/03/032/99/1/1/00 is a servo controller in the PacDrive MAX-4 series, designed for precise servo control. It includes an RJ-45 Ethernet connector and is compatible with ProFive T5 systems.

Technical Specifications

Information About MAX-4/11/03/032/99/1/1/00

The MAX-4/11/03/032/99/1/1/00 is a servo controller from the PacDrive MAX-4 series, designed to deliver advanced motion control and support for high-performance industrial automation tasks. This servo controller enables precise management of complex motion systems with capabilities suited to demanding applications, offering robust compatibility and integrated features that enhance control, monitoring, and communication. Built to work with ProFive T5 systems, it facilitates seamless integration within established automation setups, supporting efficient, coordinated operation across multiple axes.

Equipped with an RJ-45 Ethernet connector, the MAX-4/11/03/032/99/1/1/00 offers reliable and high-speed network communication, essential for real-time control and system integration. The Ethernet connectivity supports streamlined communication with other devices, enabling remote access for diagnostics, monitoring, and adjustments. This feature is particularly valuable in networked automation systems where consistent data exchange and control adjustments are needed to maintain operational accuracy and efficiency.

The controller operates on an Intel PII processor with a 266 MHz clock speed, providing reliable processing power to handle complex control algorithms and real-time adjustments essential in multi-axis motion systems. Supported by 32 MB of RAM and 256 KB of L2 cache, the controller offers the necessary memory resources to execute motion commands and manage data processing tasks without delays. The 32 MB flash memory storage allows for firmware upgrades, data storage, and configuration retention, ensuring that system settings and operational data are secure even in power loss situations.

Supporting more than 8 axes, the MAX-4/11/03/032/99/1/1/00 provides extensive flexibility in applications that require coordinated movement across multiple axes. This capability makes it suitable for complex automation setups such as robotics, CNC machinery, and multi-axis production systems, where synchronized control is essential to maintain precision and efficiency. The controller’s multi-axis support enables it to handle complex motion sequences, facilitating automation tasks that involve simultaneous positioning, speed adjustments, and synchronized timing.
