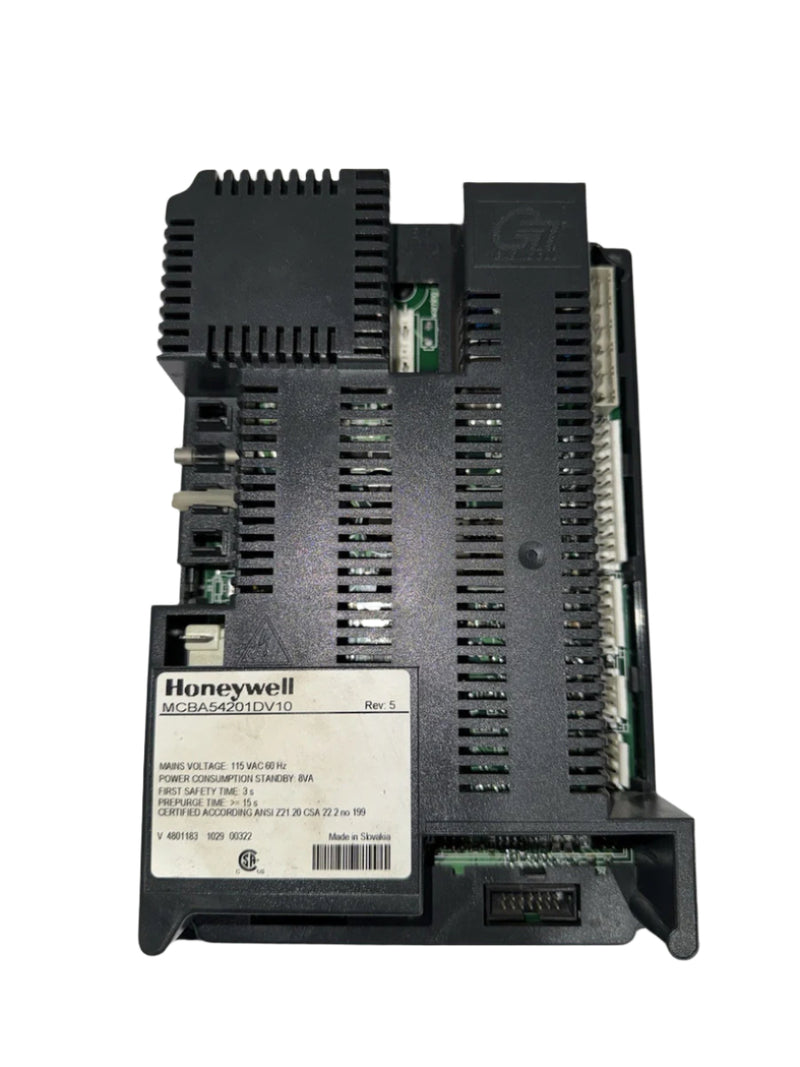

MCBA54201DV10 | Honeywell Boiler Main Control Board
- Regular price
- $577.00
- Sale price
- $577.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MCBA54201DV10
Description
The MCBA54201DV10 is a discontinued 14-port boiler controller module developed by Honeywell for use in Triangle Tube Prestige Solo series boilers. Operating at 115 VAC with 8 VA standby consumption, it manages ignition and burner safety sequences with precise timing controls. The controller is part of the PSRKIT50 kit and was commonly used in residential and light commercial boiler applications.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Controls & Indicators
|
| Part Number | MCBA54201DV10 |
| Subcategory | Control |
| Controller Type | Boiler Burner Control Module |
| Mains Voltage | 115 VAC |
| Frequency | 60 Hz |
| Standby Power Consumption | 8 VA |
| First Safety Time | 3 seconds |
| Pre-Purge Time | ≥15 seconds |
| Port Configuration | 14 ports |
| Product Dimensions | 1" x 1" x 1" |
| Batteries Included | No |
| Batteries Required | No |
| Discontinued Status | Yes |
| Weight | 2.38 lbs (1.08 kg) |
Information About MCBA54201DV10
The MCBA54201DV10 is an OEM Honeywell control module used in Triangle Tube Prestige Solo boilers, including models Solo 60, 110, 175, 250, and 399. This module functions as the main controller for burner operation, safety lockout timing, and purge sequencing. With a first safety time of 3 seconds and a pre-purge duration of at least 15 seconds, it ensures reliable combustion control. Though no longer in production, it remains a widely referenced module in service documentation for older Prestige systems.
Key Features:
- OEM Application: Used in Triangle Tube Prestige Solo 60–399 boiler systems.
- Mains Voltage Operation: Operates on 115 VAC at 60 Hz input.
- Efficient Standby: Consumes only 8 VA in standby mode.
- Precise Safety Timing: Provides 3-second safety lockout time and 15-second minimum pre-purge.
- 14-Port Design: Offers sufficient I/O connectivity for complete boiler control.
- Compact Dimensions: Minimal space requirement at 1" x 1" x 1" form factor.
- No Battery Dependency: Does not include or require batteries for operation.
- Package Kit: Sold as part of Triangle Tube PSRKIT50 replacement module.
- Plug-and-Play Installation: Designed for quick replacement in compatible boiler systems.
- Discontinued Status: No longer manufactured, but still found in existing installations.
The MCBA54201DV10 delivers the safety, control, and ignition management required for efficient boiler operation in legacy Prestige Solo units.
