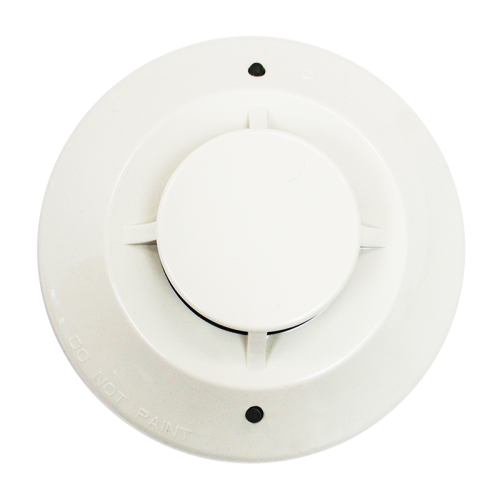

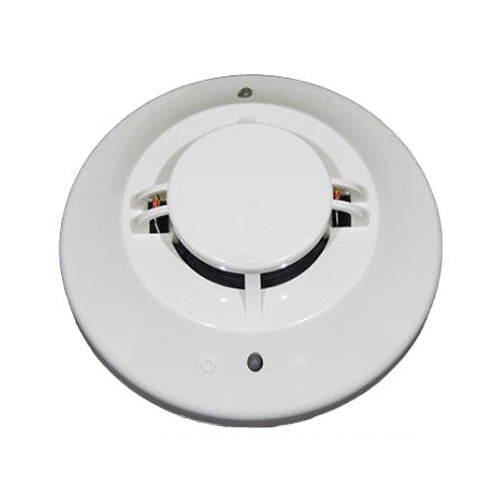

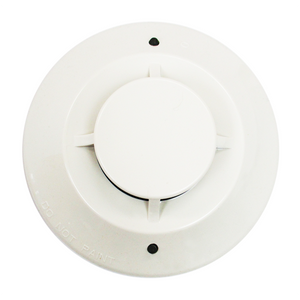

MCS-ACCLIMATE2F | Gamewell-FCI Multi-Criteria Intelligent Smoke Detector
- Regular price
- $484.00
- Sale price
- $484.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MCS-ACCLIMATE2F
Description
The Gamewell-FCI MCS-ACCLIMATE2F Multi-Sensor Intelligent Smoke Detector is an analog addressable detector designed for advanced fire detection using multi-criteria sensing technology. It integrates photoelectric, thermal, and microprocessor-based analysis to distinguish between real fire conditions and nuisance sources.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Equipment |
| Part Number | MCS-ACCLIMATE2F |
| Subcategory | Multi-Sensor Smoke Detector |
| Detection Method | Photoelectric and thermal sensing |
| Communication Type | Intelligent analog (addressable) |
| Operating Voltage Range | 15–32 VDC |
| Standby Current | 300 µA (average) |
| Alarm Current | 6.5 mA (LED on) |
| Sensitivity Adjustment | Automatic (environmentally compensated) |
| Indicators | Dual color LED (green for normal, red for alarm) |
| Mounting Base | Compatible with B210LP plug-in base |
| Operating Temperature Range | 32°F to 100°F (0°C to 38°C) |
| Humidity Range | Up to 95% RH, non-condensing |
| Housing Material | Flame-retardant plastic |
| Color | Ivory |
| Compliance | UL Listed; NFPA 72 compliant (legacy) |
| Dimensions | 2.1" H × 6.1" Dia. (with base) |
| Weight | 0.3 lb (0.14 kg) |
Information About MCS-ACCLIMATE2F
The MCS-ACCLIMATE2F is a multi-criteria analog intelligent detector developed by Gamewell-FCI for use with compatible fire alarm control panels. This sensor combines optical (photoelectric) and thermal detection technologies, processed through an internal algorithm that dynamically adjusts sensitivity based on environmental conditions. It continuously evaluates smoke and heat levels to provide early warning of fire while minimizing false alarms. Designed for easy installation in standard plug-in bases, the MCS-ACCLIMATE2F is suitable for a variety of protected environments such as offices, schools, healthcare facilities, and clean industrial settings. Though discontinued by the manufacturer, it remains an important component for servicing existing Gamewell-FCI intelligent fire detection systems.
Key Features:
- Multi-Criteria Detection: Combines photoelectric and heat sensing for accurate fire identification.
- Intelligent Analog Communication: Interacts digitally with compatible Gamewell-FCI panels.
- Dynamic Sensitivity Adjustment: Adapts to environmental conditions to reduce false alarms.
- Wide Voltage Range: Operates between 15–32 VDC for flexible system compatibility.
- Low-Profile Design: Blends seamlessly into modern ceiling environments.
- Plug-In Base Mounting: Simplifies installation and maintenance.
- Dual LED Indicators: Provides visible power and alarm status.
- Legacy Support: Fully compatible with existing Gamewell-FCI analog systems.
The MCS-ACCLIMATE2F delivers the reliability and precision required for intelligent fire detection in complex environmental conditions.
