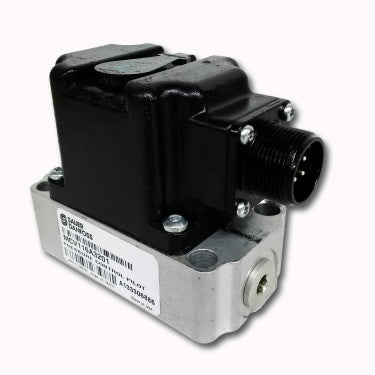

MCV116A3201 | Danfoss EDC Control Pilot
- Regular price
- $1,095.00
- Sale price
- $1,095.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MCV116A3201
Description
MCV116 Pressure Control Pilot (PCP) Valve is a torque-motor actuated, double-nozzle flapper valve that produces a differential output pressure proportional to the applied electrical input signal. It is a single-stage, standalone, closed loop pressure control valve which uses internal hydraulic pressure reactions to achieve its closed loop control characteristics.
Technical Specifications
| Brand | Danfoss |
| Product Type | EDC (Electronic-Damping Control) Control Pilot |
| Part Number | MCV116A3201 |
| Function | Provides proportional pressure control in closed-loop hydraulic systems. |
| Pressure Rating | 350 bar (5076 psi) |
| Flow Rate | Up to 100 L/min (26.4 gpm) |
| Supply Voltage | 20 to 32 VDC (nominal 24 VDC) |
| Control Input | 0 - 10 mA or 4 - 20 mA |
| Output Pressure Adjustment | External screw adjustment |
| Response Time | 20 ms typical |
| Fluid Compatibility | Mineral and synthetic hydraulic oils meeting ISO 4406 cleanliness standards |
| Operating Temperature | -40°C to +100°C (-40°F to +212°F) |
| Storage Temperature | -40°C to +120°C (-40°F to +248°F) |
| Dimensions | 57 mm (2.24") H x 42 mm (1.65") W x 42 mm (1.65") D |
Information About MCV116A3201
The Danfoss MCV116A3201 is an advanced EDC (Electronic Diesel Control) Pilot designed to provide precise proportional pressure control within closed-loop hydraulic systems. With a pressure rating of 350 bar (5076 psi), it ensures optimal performance in high-pressure environments. The control pilot offers a notable flow rate of up to 100 L/min (26.4 gpm), catering to a range of hydraulic applications.
Operating on a supply voltage of 20 to 32 VDC (nominal 24 VDC), the MCV116A3201 accommodates a diverse range of electrical systems. The control input flexibility of 0 - 10 mA or 4 - 20 mA allows for adaptable and responsive pressure adjustments. An external screw adjustment feature facilitates easy and precise output pressure adjustments.
The control pilot boasts a swift response time of 20 ms, enhancing its agility in managing dynamic hydraulic processes. Its compatibility with both mineral and synthetic hydraulic oils, meeting ISO 4406 cleanliness standards, ensures versatility and reliability in fluid compatibility. The operational temperature range spans from -40°C to +100°C (-40°F to +212°F), and storage is feasible within -40°C to +120°C (-40°F to +248°F), demonstrating robust performance across a broad temperature spectrum.
Compact in design, the MCV116A3201 has dimensions of 57 mm (2.24") in height, 42 mm (1.65") in width, and 42 mm (1.65") in depth, making it space-efficient and adaptable to various installation configurations.
In summary, the Danfoss MCV116A3201 EDC Control Pilot excels in delivering precise proportional pressure control, with notable pressure and flow ratings, electrical adaptability, swift response times, and robust fluid compatibility, making it a reliable and versatile component for closed-loop hydraulic systems.
Manufacturer information
Danfoss is a global leader in engineering solutions for various industries. Founded in 1933, the Danish company specializes in innovative technologies for climate and energy, providing products and services in areas like heating, cooling, power solutions, and electrification. With a commitment to sustainability and efficiency, Danfoss continues to shape industries worldwide.
