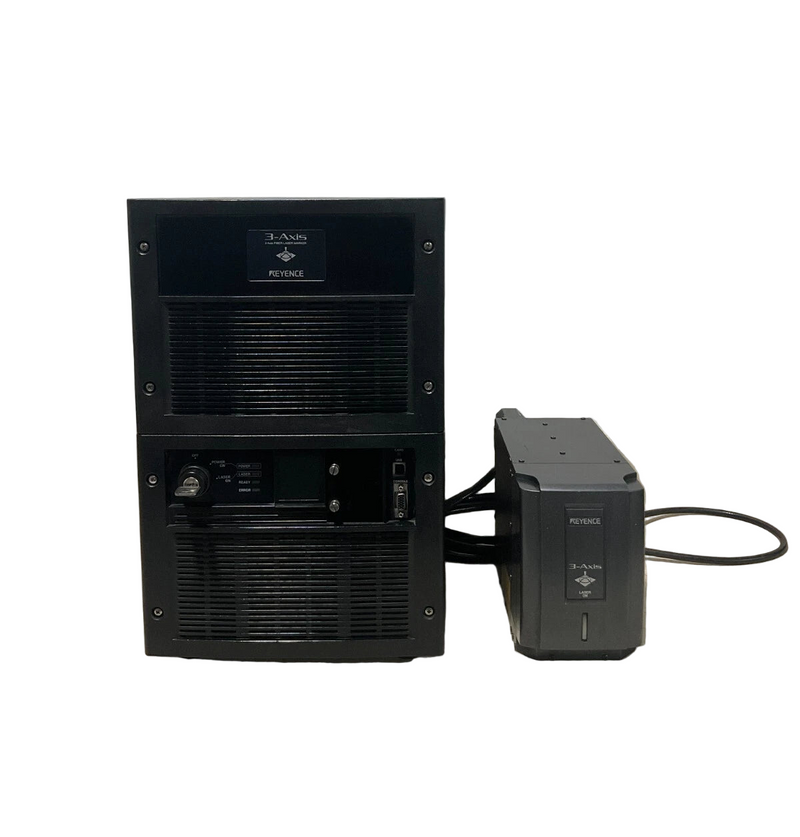

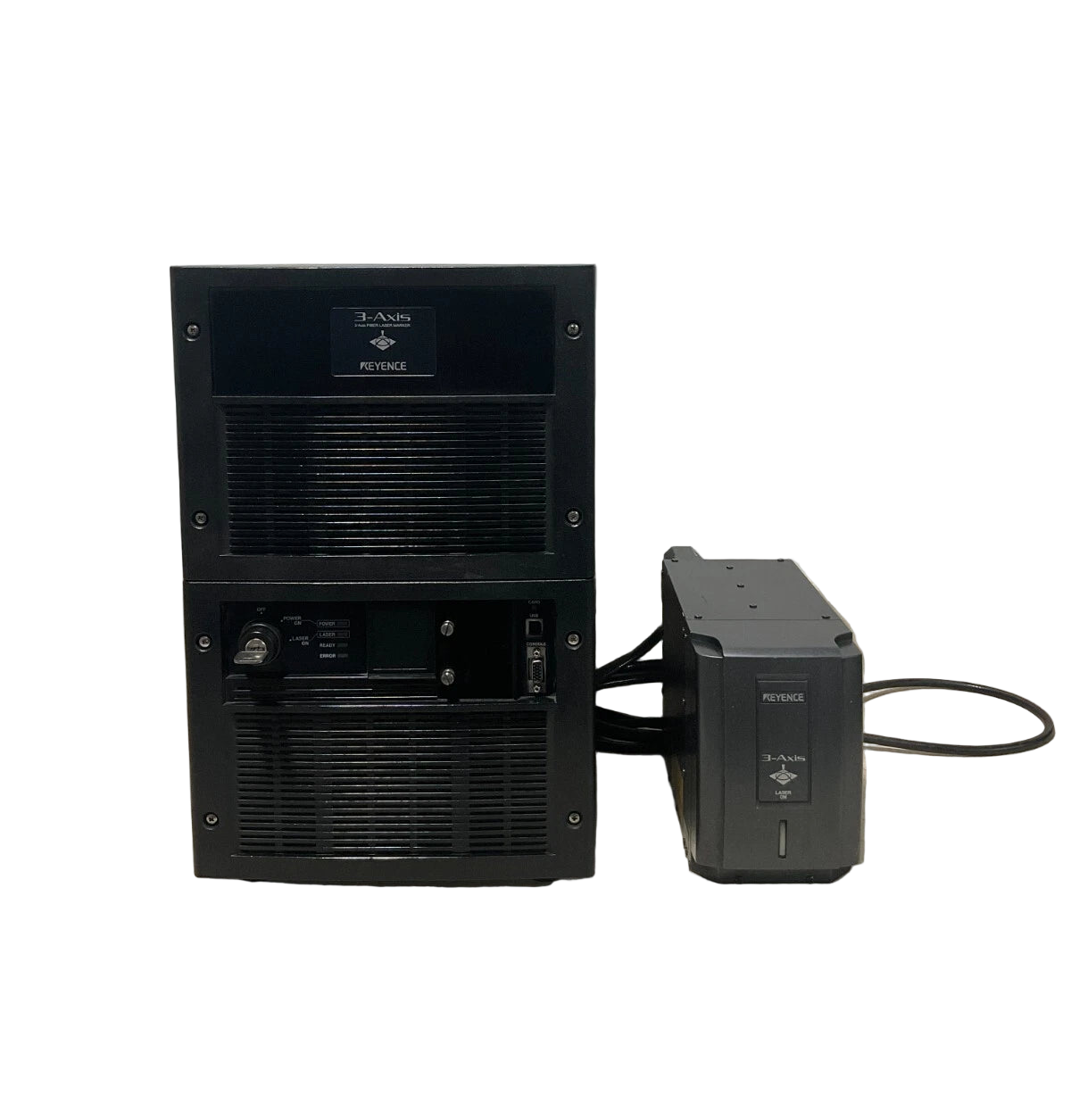

MD-F3100 | Keyence 3-Axis Fiber Laser Marker, 30W, 120×120 mm Marking Area
- Regular price
- $8,952.00
- Sale price
- $8,952.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: MD-F3100
Description
The Keyence MD-F3100 is a high-performance 3-Axis Fiber Laser Marker (Standard Area Type) designed for fast, precise, and permanent marking on metal and plastic components. Utilizing a 30 W Yb fiber laser and XYZ simultaneous scanning, it achieves consistent marking depth and quality across a large area without mechanical adjustments. Ideal for traceability, part identification, and branding applications, the MD-F3100 delivers reliability and high throughput in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Model | MD-F3100 |
| Category | Marking Systems |
| Subcategory | Fiber Laser Marker |
| Type | 3-Axis Fiber Laser Marker (Standard Area) |
| Marking Method | XYZ 3-Axis Simultaneous Scanning |
| Laser Type | Yb Fiber Laser, Class 4 (IEC 60825-1, FDA 1040.10) |
| Wavelength | 1090 nm |
| Laser Output Power | 30 W |
| Pulse Frequency | 60–120 kHz |
| Guide Laser | 655 nm Semiconductor (Class 2) |
| Marking Area | 120 × 120 × 42 mm (4.72” × 4.72” × 1.65”) |
| Standard Working Distance | 168 mm ± 21 mm (6.61” ± 0.83”) |
| Marking Resolution | 2 μm (0.08 mil) |
| Scan Speed | Max. 12,000 mm/s (472.44 in/s) |
| Supported Code Types | 1D (CODE39, ITF, NW7, UPC, etc.), 2D (QR, DataMatrix, Micro QR) |
| Fonts | Alphanumeric, katakana, hiragana, kanji, and user fonts |
| Image Marking | BMP, JPEG, PNG, TIF |
| Marking Motion Types | Fixed point, straight line, dashed line, oval |
| Marking Conditions | Stationary or moving (constant speed with encoder) |
| Character Size Range | 0.1 mm to 120 mm |
| Program Memory | Up to 2000 settings / 256 blocks |
| I/O Interface | Terminal block input/output, MIL connector |
| Communication Interfaces | RS-232C, RS-422A, USB 2.0, Ethernet (100BASE-TX/10BASE-T) |
| CF Memory Slot | Compact Flash card |
| Cooling Method | Controller: Forced air / Head: Natural air |
| Head Cable Length | 4 m (13.12 ft) |
| Installation Direction | Any direction |
| Rated Voltage | Single-phase 100–240 VAC ±10 %, 50/60 Hz |
| Power Consumption | Max. 550 VA |
| Enclosure Rating | IP64 (Head) |
| Ambient Temperature (Operation) | 0°C to +40°C (32°F to 104°F) |
| Ambient Temperature (Storage) | -10°C to +60°C (14°F to 140°F) |
| Humidity Range | 30–85 % RH (no condensation) |
| Cooling Type | Air cooled (controller forced, head natural) |
| Weight | Controller: 27.0 kg / Head: 6.7 kg / Console: 1.4 kg |
| Safety Standards | CE, FDA, IEC, JIS compliant |
Information About MD-F3100
Part of Keyence’s MD-F Series, the MD-F3100 provides outstanding marking flexibility and speed, allowing fine detail engraving of text, barcodes, 2D codes, and graphics. With a 120 × 120 × 42 mm marking area, it uses a 1090 nm wavelength laser to etch directly onto metals, resins, and coated materials. The 3-axis control system automatically adjusts the focal distance for curved or uneven surfaces, ensuring uniform marking quality. The system features multi-interface communication including RS-232C, RS-422A, USB 2.0, and Ethernet (100BASE-TX), allowing seamless integration with factory automation networks. It supports a wide variety of marking operations, from static workstations to conveyor-based motion marking, and includes compatibility with CAD-based logo and image files.
Key Features:
- 3-Axis Control: Automatically compensates for height variation to maintain uniform focus and marking quality.
- Powerful 30 W Fiber Laser: Provides deep, high-contrast marks on metals and engineered plastics.
- Wide Marking Area: Covers 120 × 120 × 42 mm, ideal for large or multiple part markings.
- High Precision Resolution: Delivers fine detail with a 2 μm resolution for text, codes, and graphics.
- High-Speed Marking: Up to 12,000 mm/s (472.44 in/s) scan speed for rapid cycle times.
- Versatile Code Compatibility: Supports 1D, 2D, and GS1 barcodes including QR, DataMatrix, and UPC.
- Flexible Connectivity: Multiple communication interfaces—RS-232C, RS-422A, USB 2.0, and Ethernet—for easy system integration.
- Durable and Reliable Design: IP64 head protection with forced-air cooling ensures long-lasting performance.
- Multi-Material Capability: Marks metals, plastics, ceramics, and coated surfaces with high clarity.
- CAD & Bitmap Support: Engraves logos, BMP, JPEG, PNG, and TIF image formats for flexible branding.
