MDFKABA090-22 | Lenze 6.9kW 390V Gear Motor with 24V DC Brake
- Regular price
- $9,999.00
- Sale price
- $9,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MDFKABA090-22
Description

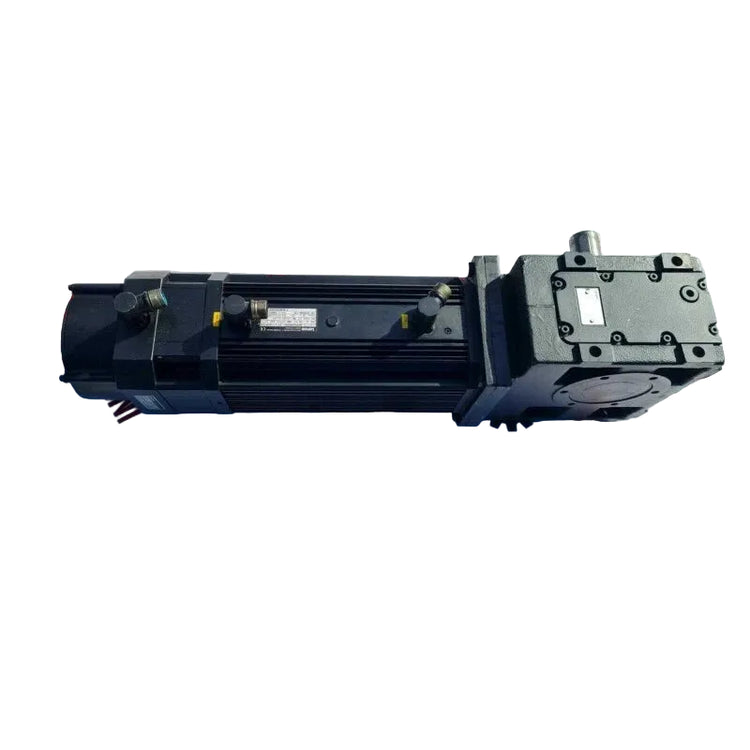

The Lenze MDFKABA090-22 is an industrial gear motor designed to deliver high-speed performance with controlled torque output for demanding automation applications. Rated at 6.9 kW with a nominal speed of 3480 min⁻¹ at 120 Hz, it provides 19.0 Nm of torque and operates at 390 V AC. Equipped with an integrated 24 V DC brake rated at 40 Nm, this unit ensures reliable stopping and holding capability in dynamic motion systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motors & Gearboxes |
| Part Number | MDFKABA090-22 |
| Subcategory | Gear Motors |
| Rated Voltage | 390 V AC |
| Rated Current | 15.8 A |
| Frequency | 120 Hz |
| Rated Speed | 3480 min⁻¹ |
| Rated Power | 6.9 kW |
| Rated Torque | 19.0 Nm |
| Torque at 390 V | 23.9 Nm |
| Power Factor (cos φ) | 0.80 |
| Brake Voltage | 24 V DC |
| Brake Current | 1.0 A |
| Brake Torque | 40.0 Nm |
| Dimensions (L × W × H) | 62.00 × 18.00 × 20.00 cm |
| Weight | 31.00 kg |
Information About MDFKABA090-22
The MDFKABA090-22 is a Lenze gear motor engineered for continuous-duty industrial use, combining an electric motor and geared output in a compact assembly. It operates at 390 V AC with a current rating of 15.8 A and a power factor of 0.80, supporting efficient energy conversion under load. The motor delivers up to 23.9 Nm torque under rated voltage conditions and is suitable for high-speed applications operating at 120 Hz. Integrated with a 24 V DC brake system rated at 1.0 A and 40 Nm braking torque, it is designed for machinery requiring controlled deceleration and secure load holding.
Key Features:
- Rated Power Output: Provides 6.9 kW for demanding industrial drive applications.
- High Operating Speed: Nominal speed of 3480 min⁻¹ at 120 Hz for high-speed processes.
- Rated Torque: Delivers 19.0 Nm nominal torque and up to 23.9 Nm at 390 V.
- 390 V AC Operation: Designed for industrial three-phase power systems.
- Integrated 24 V DC Brake: 40 Nm braking torque ensures secure stopping and holding.
- Efficient Performance: Power factor of 0.80 for stable electrical operation.
- Compact Gear Motor Design: Integrated motor and gearbox assembly for space-efficient installation.
- Robust Industrial Construction: Built for continuous operation in automated machinery environments.
The MDFKABA090-22 delivers the reliability and torque control required for high-speed industrial gear motor applications.
